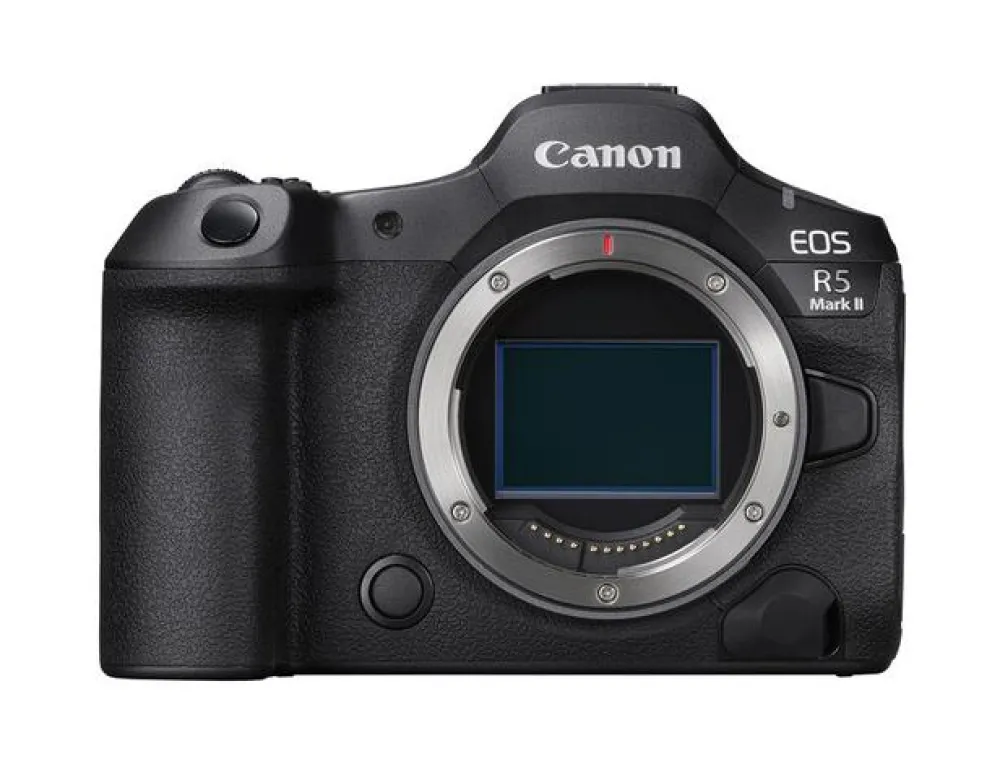

Canon Interchangeable Lens Cameras | Mirrorless Cameras Only | EOS R5 Mark II Camera

Canon EOS R5 Mark II Camera helps users “Master the Moment”

For the professional who demands high-quality still and video output, the EOS R5 Mark II camera is ready to deliver. Designed with performance and image quality at its core, the EOS R5 Mark II camera offers the fundamental elements in one package for sports/wildlife photographers, journalists/producers, video producers and visual creators. Key features of the EOS R5 Mark II camera include:

• Back-illuminated stacked 45 megapixel full-frame sensor and new processing system for extremely fast reading
• When compared to previous EOS R camera models, more advanced and powerful AF system including Eye Control AF and new subject tracking technologies
• Cinema EOS video features such as:
  • Custom Picture color profile including Canon Log 2
  • False Color Wave Form Monitor
  • 4CH Audio with 24bit LPCM
  • Pre-recording up to 5 seconds

Accessories for the EOS R5 Mark II camera were designed thoughtfully with the end-user in mind. There is a new, more powerful battery. The LP-E6P battery, when compared to previous battery versions, features higher continuous power and two-times the amperage. Optional battery grips were also thoughtfully designed, and there are three options:

• BG-R20– For vertical operability
• BG-R20EP with Ethernet – Port enables high-speed wired communication
• CF-R20EP with Cooling Fan and Ethernet – Cooling fan helps maximize movie performance

Both cameras feature the new DIGIC Accelerator, which is an addition to the DIGIC X processor. The DIGIC Accelerator assists with deep learning processing which helps to quickly analyze large volumes of data and supports the next-gen AF system, Dual Pixel Intelligent AF. Dual Pixel Intelligent AF is based on Accelerated Capture and deep learning, allowing end-users to experience tracking advancements, such as body, joint and head area estimation and focus on people other than the main subject.



• 45MP Full-Frame Stacked BSI CMOS Sensor
• DIGIC Accelerator Processing
• Cross-Type Dual Pixel Intelligent AF
• 8K 60 Raw/4K 60 SRAW/4K 120 10-Bit Video
• Up to 30 fps, Pre-Continuous Shoot Mode
• 5.76m-Dot EVF with OVF Sim. View Assist
• 3.2″ Vari-Angle Touchscreen LCD
• In-Camera Upscaling to 179MP
• CFexpress & SD UHS-II Memory Card Slots
• Wi-Fi 6E/Wi-Fi 6 Support

The R5 Mark II’s new sensor maintains the high resolution of its predecessor while introducing a stacked, back-illuminated design that makes room for Canon’s latest image processor, the DIGIC Accelerator. Operating alongside the stalwart DIGIC X, the camera combines the raw image data with high-volume, deep-learning datasets to produce gains in subject tracking and recognition, pre-continuous capture, blackout-free shooting, video resolution, maximum recording time, and more – making the R5 Mark II a powerful and comprehensive professional creator’s toolkit.



Autofocus and Deep Learning

The improved processing speeds benefit the EOS R series’ already-robust autofocus, incorporating deep learning datasets in its Dual Pixel Intelligence AF to produce advancements in subject recognition and tracking while also improving on the Eye Control Focus feature introduced in the EOS R3.

• The processor’s high-level analyses keep the intended subject locked when similar subjects cross one another
• Head, eyes, upper body, and joint structures are all tracked, as well as persons other than the main subject and the ball
• Action Priority Menu setting for still photos identifies sport-specific events, actions, and ball positions for soccer, basketball, and volleyball
• Photograph or upload a person’s image to register and prioritize up to 10 subjects

Eye Control Focus

Reintroduced in the EOS R3, Eye Control AF allows shooters to use their eye to initiate where the focus point is simply by looking through the electronic viewfinder. The R5 Mark II boasts newly developed camera optics and a revised line-of-sight detection algorithm to nearly double the detection frame rate. The camera integrates Eye Control Focus with its improved subject tracking and recognition algorithms to keep the sighted subject in sharp focus.



High Speed, High-Quality Stills Performance

Electronic Shutter

Chief among the benefits of the new sensor-processor combination is the ability to shoot high-quality, high-resolution images at blazing speed, unlocking mural-sized moments of athletic brilliance, breaking news, or even history. The R5 Mark II has the power to record the ephemeral and commit it to memory on the biggest scale and in astounding detail.

• Continuous shooting speeds of up to 30 fps full-frame raw with reduced shutter distortion, with up to 12 fps when using the mechanical shutter
• Supports always-on blackout-free display when using the electronic shutter
• For indoor sports shooters, the camera effectively suppresses flicker in LED lighting environments by detecting refresh frequencies
• Electronic shutter allows flash sync speeds of up to 1/250s

Pre-Continuous Shooting

Newly available in the EOS R5 Mark II is the ability to bank up to 15 shots of pre-continuous shooting by half-depressing the shutter button before firing. When the shutter button is fully pressed, the previous half-second of images are written to the memory card, allowing users to “go back in time” to recover a decisive moment they might have missed.

Noise Reduction and In-Camera Upscaling

First and foremost, the R5 Mark II is a camera built for image-makers looking to maximize quality and flexibility. As such, the broad native ISO 100-51200 range suits working in a variety of lighting conditions and the DIGIC Accelerator enables the use of Neural Network Noise Reduction for cleaner images, especially at higher sensitivities.



This same processing power also enables the creation of even higher resolution stills-up to 179MP-via In-Camera Upscaling. This deep learning-based tool doubles the number of pixels horizontally and vertically to produce a larger, more detailed image with maintained sharpness and clarity.

Coordinated Control Image Stabilization

A lightweight, compact build encourages users to hand-wield the camera, and here as elsewhere the R5 Mark II’s new innards yield performance gains. Coordinated control helps achieve the optimum hand-shake correction effects, benefitting handheld shooting in low-light conditions and reducing shake when recording videos. The five-axis in-body image stabilizer (IBIS) corrects up to 8.5 stops of unwanted camera shake in the center of the frame and 7.5 at the edges when used in conjunction with compatible. Additionally, Movie Digital IS uses the optical and sensor-shift stabilization methods along with digital IS to help acquire steadier footage while moving.

A Cinema EOS-Integrated 8K Powerhouse



The R5 Mark II inherits many of innovations that made its other relative, the R5 C, a favorite among combination video-stills shooters, and carries over much of its Cinema EOS cousin’s features and workflow. Like its predecessors, the 45MP full-frame sensor enables impressively high-resolution DCI 8K raw video recording internally, now up to 60 fps, along with 4K SRAW also at the full sensor width.

• Reads out signals for all effective pixels from its full-frame 8K sensor, enabling 4:2:2 10-bit high-definition recording through oversampling during 4K and 2K video recording
• Record High Frame Rate (HFR) movies with sound at up to 120p at DCI/UHD 4K resolutions (4096 x 2160/3840 x 2160) in 4:2:2 10-bit without cropping the sensor
• Supports MXF-based XF-AVC, which offers 10-bit 4:2:2 files, as well as the highly versatile MP4 for lightweight proxy files in various professional workflows
• External raw recording is supported for compatible recorders with a full size, HDMI Type-A port
• Split saving is possible with raw and proxy video saved to separate memory cards
• Supports Canon Log3, a gamma designed for simple grading, such as tightening dark areas and adjusting tones, as well as integration with other Cinema EOS system footage
• Canon Log2, PQ, and HLG in-camera custom picture profiles also supported
• High-quality audio supported with 4-Channel, 24-bit LPCM
• Recording times up to 120 minutes are possible at 4K 60 settings and below or, if paired with an optional grip, larger recording formats or longer recording times are possible
• Integrated waveform monitor, false color & zebra display, tally lamp
• Compatible with Canon VR and RF 5.2mm f/2.8 L Dual Fisheye lens

Body and Connectivity

• A 5.76m-dot, 0.76x-magnification OLED electronic viewfinder is featured for clear, high-resolution eye-level viewing at a 120 fps refresh rate with support for blackout-free viewing
• 3.2″ vari-angle LCD benefits working high, low, and front-facing angles and features a 4.15m-dot resolution with a touchscreen interface for vivid playback, live-view monitoring, and more

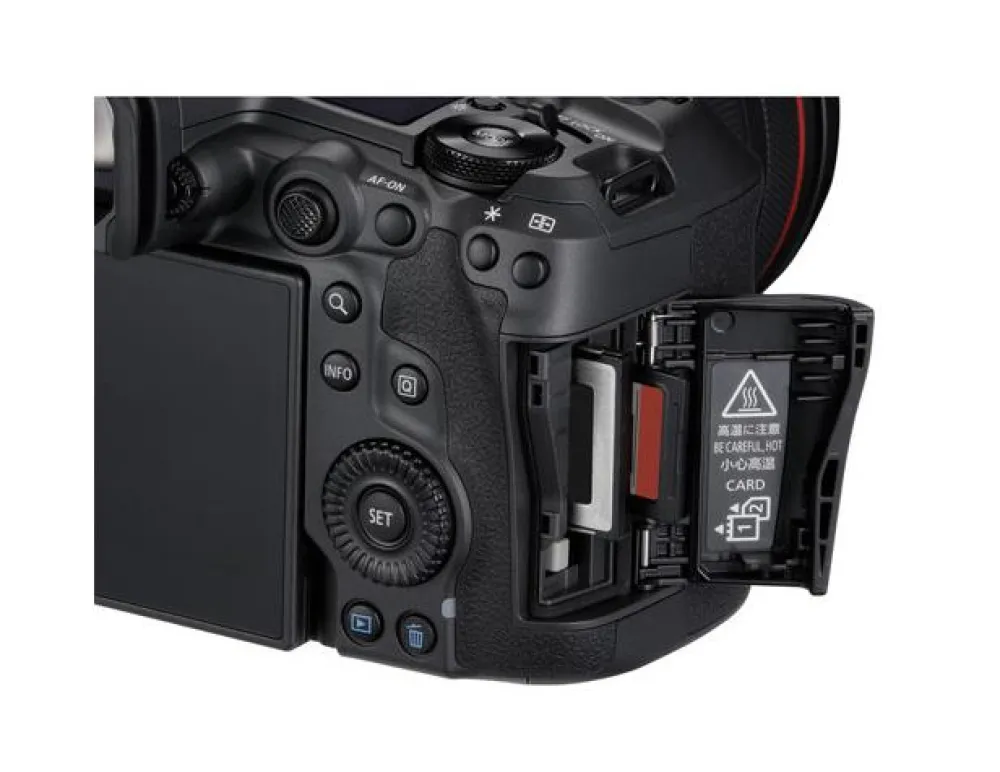

• Dual memory card slots are featured, a CFexpress Type B slot for raw video recording and fast continuous shooting and a UHS-II SD card for backups or less speed-critical shooting
• First EOS camera with Wi-Fi 6E/Wi-Fi 6 wireless support for even faster communication across wider frequency bands
• New, higher-capacity LP-E6P lithium-ion battery
• Three optional battery grips are available, including two featuring a 2.5G BASE-T Ethernet interface and RJ-45 port for a fast and secure hardwired connection and one with a cooling fan for extended video runtimes
• Lightweight and compact with a dust- and moisture-sealed construction suitable for working in inclement conditions

Lens Mount  Canon RF

Sensor Resolution  Actual: 50.3 Megapixel
Effective: 45 Megapixel

Image Sensor  36 x 24 mm (Full-Frame) BSI Stacked CMOS

Image Stabilization  Sensor-Shift, 5-Axis

ISO Sensitivity Range  Photo  100 to 51,200 (Extended: 50 to 102,400)

Continuous Shooting  Electronic Shutter  Up to 30 fps at 45 MP for up to 200 Frames (JPEG) / 93 Frames (Raw)
Mechanical Shutter  Up to 12 fps at 45 MP for up to 760 Frames (JPEG) / 230 Frames (Raw)

Media/Memory Card Slot Slot 1: CFexpress Type B  [2 TB Maximum] Slot 2: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]

Video I/O  1x HDMI (Unspecified Signal) Output

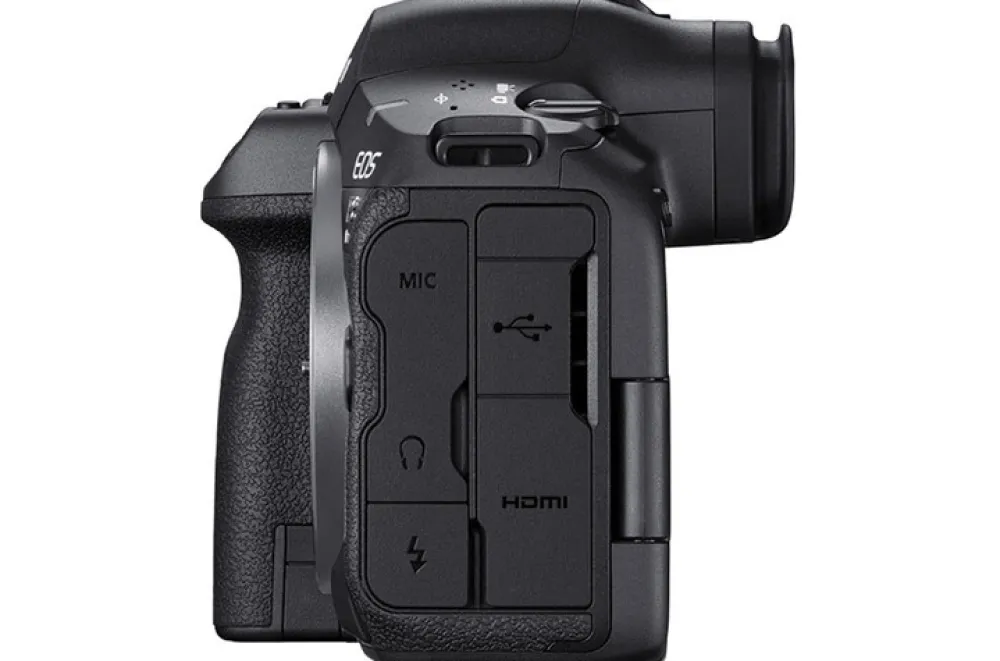

Audio I/O 1x 1/8″ / 3.5 mm TRS Stereo Microphone Input on Camera Body
  1x 1/8″ / 3.5 mm TRS Stereo Headphone Output on Camera Body

Power I/O  1x USB-C (5VDC at 1.5 A) Input

Other I/O  1x USB-C (USB 3.2 / 3.1 Gen 2) Data Input/Output (Shared with Power Input)

Wireless  2.4 / 5 / 6 GHz Wi-Fi 6 (802.11ax), Bluetooth 5.0

Display Type  Articulating Touchscreen LCD





Canon EOS R5 Mark II Mirrorless Digital Camera (Body Only)

• LP-E6P Lithium-Ion Battery Pack
• Camera Strap
• Canon R-F-5 Camera Cover
• Canon ER-kE Eyecup
• Canon ER-SC3 Shoe Cover Canon LP-E6P Lithium-Ion Battery Canon LC-E6 Charger for LP-E6 and LP-EL Battery Packs Battery Pack Cover Canon IFC-100U Interface Cable (39.4″) Power Cord
