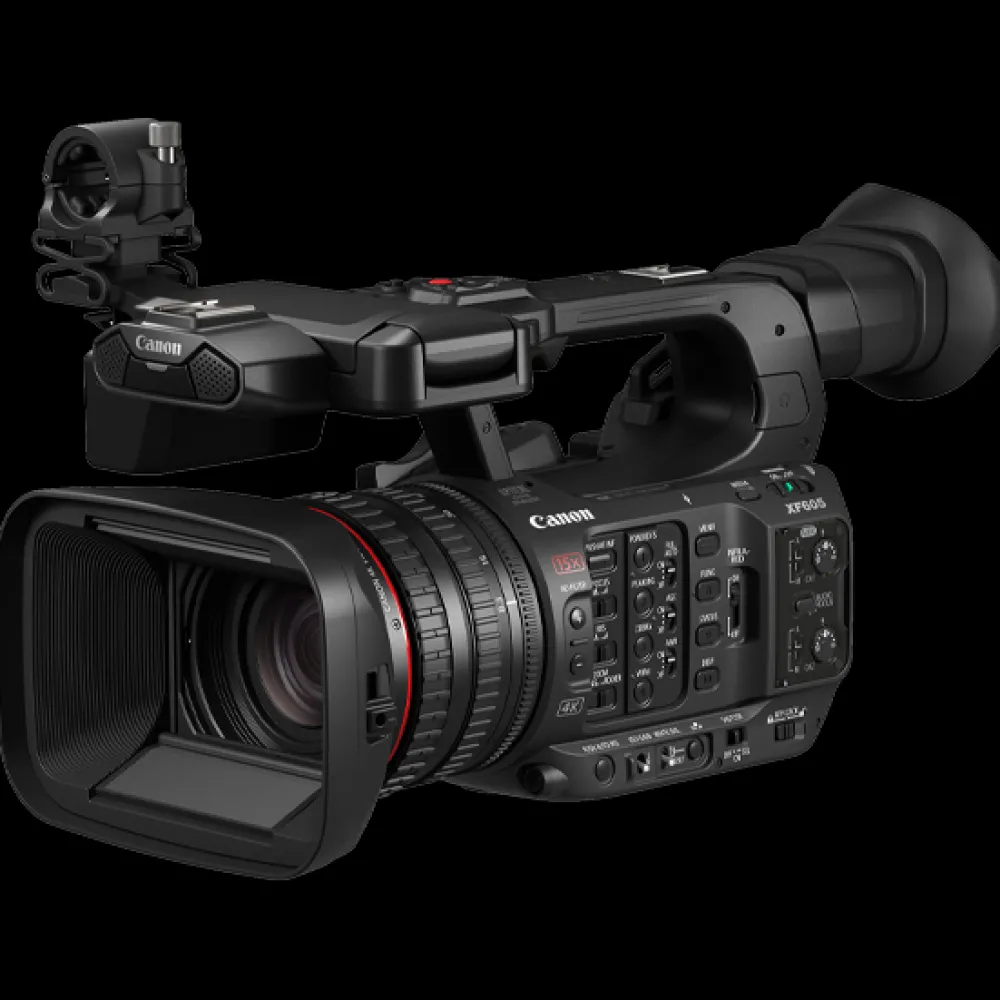

Canon Video Cameras | XF605 UHD 4K HDR Pro Camcorder

AT A GLANCE



Imaging

Sensor Resolution  Actual: 13.4 Megapixel (4268 x 3148), Effective: 8.29 Megapixel (3840 x 2160)

Sensor Type  1″ CMOS Sensor

Image Stabilization  Optical in Integrated Lens Digital

Built-In ND Filter  Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Shutter Type  Rolling Shutter

Shutter Speed  1/4 to 1/2000 sec

Shutter Angle  11 to 360°

Sensitivity  f/12 at 2000 lux

Minimum Illumination  1.5 Lux at 1/30 Shutter Speed

White Balance  2000 to 15,000K

Lens

Focal Length  8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm)

Optical Zoom Ratio  15x

Max Digital Zoom  30x ( in 1080p)

Maximum Aperture  f/2.8

Minimum Aperture  f/4.5

Optical Design  18 Elements in 14 Groups

Minimum Focus Distance  Entire Zoom Range: 2.0′ / 60.0 cm, Wide: 0.4″ / 1.0 cm

Filter Size  58 mm

Control Rings  Focus, Zoom, Iris

Focus Control  Autofocus,  Manual Focus

Recording

Recording Modes

MXF/XF-AVC 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (160 to 410 Mb/s)
1920 x 1080p at 23.98/25/29.97/30/50/59.94/120 fps (50 to 310 Mb/s)
1920 x 1080i at 50/59.94 fps (50 to 160 Mb/s)
1280 x 720p at 23.98/25/29.97/30/50/59.94 fps


H.265/MP4 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (135 to 225 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94/120 fps (50 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (12 Mb/s)


H.265/MP4 4:2:0 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (100 to 170 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (9 Mb/s)


H.264/MP4 4:2:0 8-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (150 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 Mb/s)
1280 x 720p at 50/59.94 fps

Variable Frame Rates  to 120 fps

Gamma Curve  Canon Log 3, HDR-HLG

Audio Recording  2-Channel 16-Bit 48 kHz AAC Audio, 4-Channel 24-Bit 48 kHz LPCM Audio

IP Streaming  MPEG2: 1920 x 1080 to 3840 x 2160 at 25p, 29.97p, 50p, 59.94p (4.0 to 16.00 Mb/s), MPEG2: 1920 x 1080 to 1920 x 1080 at 50i, 59.94i (4.0 to 9.0 Mb/s)

Interface

Media/Memory Card Slot  Slot 1: SD/SDHC/SDXC, Slot 2: SD/SDHC/SDXC

Video Connectors 1 x HDMI (HDMI 2.0) Output, 1 x BNC (12G-SDI) Output

Audio Connectors  2 x 3-Pin XLR Input, 1 x 1/8″ / 3.5 mm Stereo Input, 1 x 1/8″ / 3.5 mm Stereo Headphone Output

Built-In Microphone Type  Stereo

Other I/O

• 1 x USB Type-A Output
• 1 x USB Type-C
• 1 x BNC Genlock, Sync Input/Output
• 1 x BNC Timecode Input/Output
• 1 x 2.5 mm Control
• 1 x 8-Pin D-Sub Control
• 1 x RJ45 LAN Input/Output

Wireless Interfaces  2.4 / 5 GHz MIMO Wi-Fi Video Output, Audio Output, Control

Monitor Size  3.45″

Resolution  2,760,000 Dot

Display Type  Articulating Touchscreen LCD

EVF

EVF  Attached

EVF Display Type  OLED

Screen Size  .36″

EVF Resolution  1,770,000 Dots

Power

Battery Type  Canon BP-A Series

Power Connectors  1 x Barrel (24 VDC) Input

Power Consumption  21.5 W

• Canon XF605 UHD 4K HDR Pro Camcorder
• Canon BP-A30 Battery Pack for EOS C300 Mark II, C200, and C200B
• Canon CA-CP200L Compact AC Power Adapter
• Lens Cap
• Lens Hood
