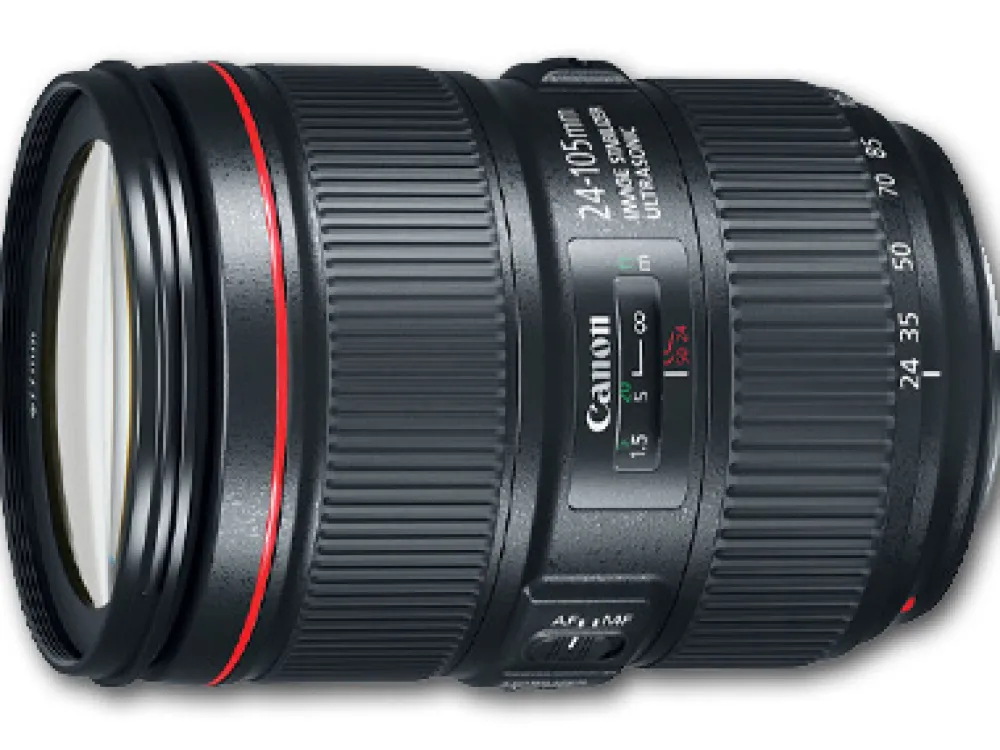

Canon Wide Angle Zoom | 24-105mm f4L IS II USM EF Lens

AT A GLANCE

• EF Mount L-Series Lens
• Aperture Range: f/4-22
• Four GMo Aspherical Elements
• Air Sphere Coating
• Ring-Type Ultrasonic Motor AF System
• Optical Image Stabilisation
• Internal Focus; Full-Time MF Override
• Zoom Lock Switch; Fluorine Coating
• Dust- and Water-Resistant Construction
• Rounded 10-Blade Diaphragm
• 77mm Filter Thread Diameter

DESCRIPTION

The EF 24-105mm f/4L IS II USM Lens from Canon is an exceptionally versatile zoom range from wide-angle to short telephoto, a constant f/4 aperture, and an outstanding build quality befitting an L-series lens. This version II of the popular lens makes improvements to image quality through the use of a new optical design with four glass-moulded aspherical elements which helps to limit vignetting in your images. Also, it users an Air Sphere Coating to reduce ghosting and flaring.

A ring-type Ultrasonic Motor AF system provides fast and accurate autofocus while built-in optical image stabilisation can help compensate for about 4 stops of shutter speed, minimising the effects of camera shake. This lens also offers a zoom lock switch to prevent lens creep when not actively in use as well as an internal focus system. Full-time manual focus override is available for making adjustments regardless of the AF mode. Additionally, it has a rounded 10-blade aperture diaphragm for smooth out of focus elements.

As with all L-series lenses, this optic has a dust- and water-resistant construction thanks to numerous seals that prevent intrusion when working in inclement weather. It also uses a fluorine coating on the exposed front and rear elements to help prevent smudges and make cleaning easier.

• Offering a versatile zoom range of 24-105mm, this L-series lens is a staple of many shooters’ kits. This updated version offers improved image quality, with a notable enhancement in peripheral brightness.
• Designed for use with full-frame DSLRs, this optic is compatible with APS-C format cameras as well where it will provide a 38.4-168mm equivalent focal length range.
• Constant f/4 maximum aperture offers consistent performance and light transmission throughout the zoom range.
• Four glass-moulded aspherical elements, including one large-diameter double-sided glass-moulded lens, help to minimise distortions throughout the zoom range in order to maintain edge-to-edge sharpness and illumination.
• An Air Sphere Coating (ASC) has been applied to lens elements to reduce backlit flaring and ghosting for maintained light transmission and high contrast in strong lighting conditions.
• A ring-type Ultrasonic Motor (USM), along with an internal focusing system, high-speed CPU, and optimised AF algorithms, are employed to deliver fast, precise, and near-silent autofocus performance.
• Optical image stabilisation minimises the effects of camera shake by compensating for up to 4 stops of shutter speed.
• Full-time manual focus operation is available for fine-tuning of your focus position when working in the AF mode.
• Zoom lock prevents lens creep when not in use.
• A weather-resistant design protects the lens from dust and moisture to enable its use in inclement conditions. Additionally, fluorine coatings have also been applied to the front and rear lens elements for further protection against fingerprints and smudging.
• Ten rounded diaphragm blades contribute to a pleasing out of focus quality that benefits the use of shallow depth of field and selective focus techniques.

SPECIFICATIONS

Focal Length 24 – 105mm
Aperture Maximum: f/4 Minimum: f/22
Camera Mount Type Canon EF
Format Compatibility 35mm Film / Full-Frame Digital Sensor Canon (APS-C)
Angle of View 84° – 23° 20′
Tilt/Shift None
Minimum Focus Distance 1.48′ (45 cm)
Magnification 0.23x
Maximum Reproduction Ratio 1:4.3
Elements/Groups 17/12
Diaphragm Blades 10, Rounded
Image Stabilisation Yes
Autofocus Yes
Tripod Collar No
Filter Thread Front:77 mm
Dimensions (DxL) Approx. 3.29 x 4.65″ (83.5 x 118 mm)
Weight 28.04 oz (795 g)

• EF 24-105mm f4L IS II USM Lens
• Lens Cap E-77U
• Dust Cap E
• Lens Hood
• Lens Case
