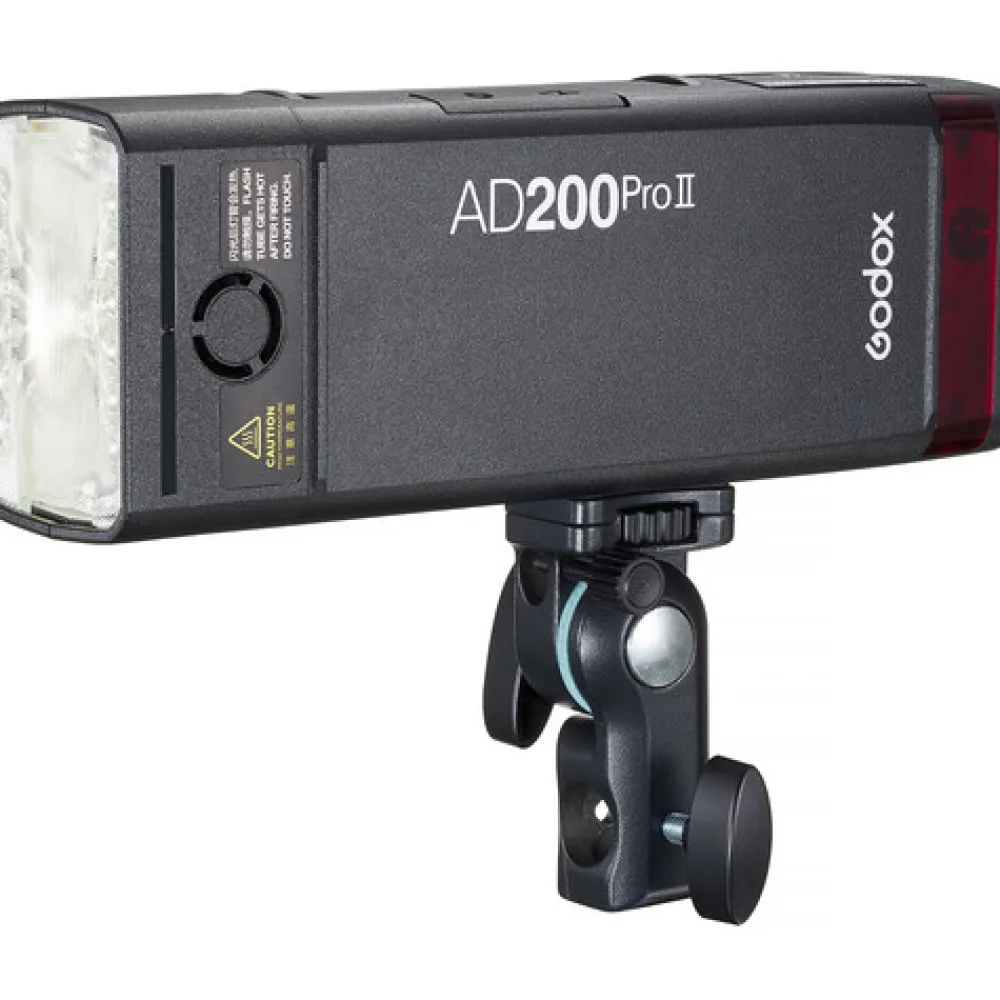

Godox Studio Lighting | AD200Pro II TTL Pocket Flash

AT A GLANCE

• Includes Speedlite & Bare Bulb Heads
• Wireless Sync with Optional X3 Trigger
• Compatible with Most TTL Systems
• 200Ws, 1/512 to 1/1 Power Output
• Up to 500 Full-Power Flashes
• Flash Duration: 1/272 to 1/23,500 sec
• 0.01-1.8 sec Recycling Time, HSS Support
• Heads with Bi-Color LED Modeling Light
• Upgraded TFT Screen for Onboard Control
• Includes Battery & Charger

Your Lighting Companion

The AD200Pro II offers full compatibility with several TTL systems including Canon, Nikon, Sony, FUJIFILM, Olympus, and Panasonic. All of its functions can not only be made manually on the unit but also wirelessly thanks to the Godox wireless X system. Remote operation requires separate purchase of a Godox trigger, such as the recommended X3, and the flash is also compatible with the X2, XPro, and XPro II models. The AD200Pro II body is compact and lightweight enough to become your ideal lighting companion in the studio or on location.

AD200Pro II Upgrades

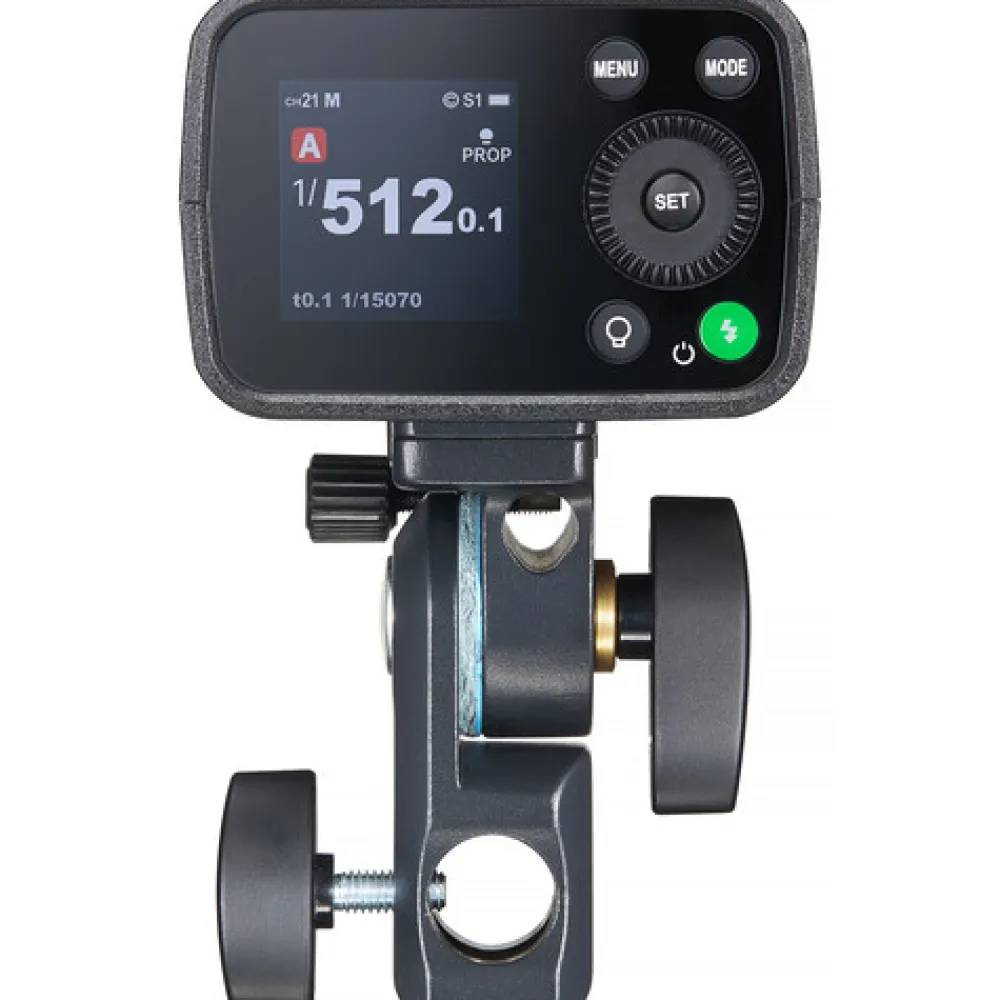

Keeping some characteristics of its previous version, such as 200Ws and 0.01-0.8 sec recycling time for fast and reliable use, the AD200Pro II provides flash durations from 1/272 to 1/23,500 sec with its speedlite flash head, 1/252 to 1/16,200 sec with its bare bulb one, and a wider output range from 1/1 to 1/512. Settings are accessible via local buttons and displayed on the easy-to-read, upgraded TFT (thin-film-transistor) color screen for intuitive onboard control.

One-Tap Sync Capability

Godox has thought about every aspect to simplify the use of the AD200Pro II when combined with the separately available X3 trigger. Made for instant synchronization with the X3, the AD200Pro II lets you focus on your visual creation. This wireless sync function will optimize your photo workflow, cutting down the time you normally spend managing complicated channels and ID settings. Simply press the wireless sync option on both your X3 and the AD200Pro II to achieve quick synchronization.

Smooth Workflow with Group Color Identification

The AD200Pro II is part of Godox’s 2.4 GHz wireless X system with a range of 328′, featuring 16 groups and 32 channels that facilitate the use of multiple lights. Use the optional X3 trigger or the X2, XPro, and XPro II triggers to wirelessly control the flash head. The brand presents what they call “Group Color Indicator”, meaning that each of the 16 groups will display a different color locally on the flash head for easy group identification even from a distance.

Versatility

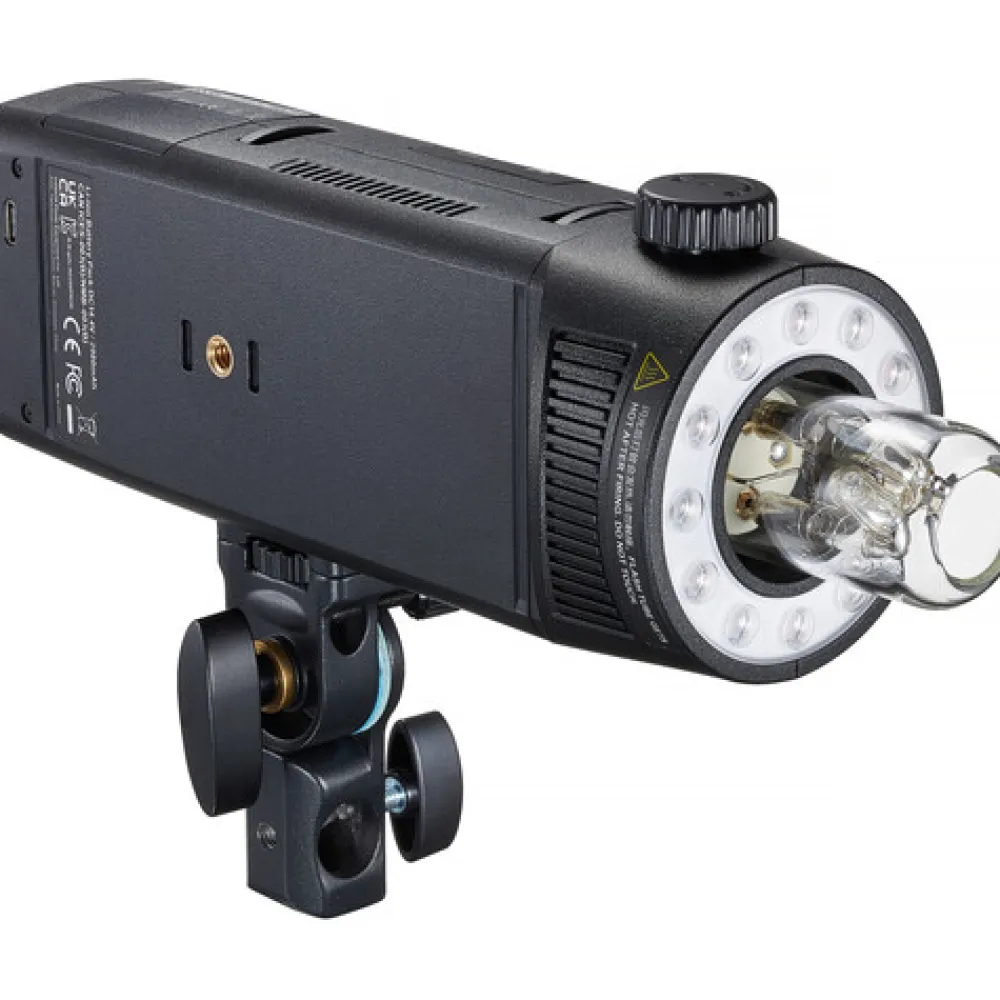

The included flash heads can be easily swapped out for different situations. The speedlite head outputs the standard look of an on-camera flash, while the bare bulb head produces a softer light. Users can also take advantage of the Godox separately available H200R round and R200 ring flash heads to vary the AD200Pro II’s quality of light depending of the environment. The possibilities won’t stop here as the AD200Pro II is also compatible with an optional ADS200 stick flash head that enables a wide 360° beam spread.

Godox Wireless X System

The built-in 2.4 GHz wireless X system, with the help of the division into 16 groups (0-9, A-F) and 32 channels, facilitates the creative use of multiple light sources. 99 wireless ID settings (01-99) limit interference from other nearby systems. Additionally, the AD200Pro II has a 3.5mm sync port for setting up a wired connection.

500 Full-Power Flashes

The AD200Pro II maintains a stable output, providing 10 steps of extended output power with adjustability from 1/512 to full power 1/1 in 0.1 stop increments. It runs on a removable and rechargeable 14.4V/2900mAh lithium battery that will give you up to 500 full power flashes and thousands of lower power flashes. Godox conveniently includes the charger in the box. Besides that, the AD200Pro II can work with an optional PB960 power box.

Stable Color Temperature Mode

A dedicated stable color temperature mode improves color consistency to within +/- 100K throughout the entire power range.

Adjustable Bi-Color LED Modeling Light

At 5800K, the AD200Pro II is well-suited for portraits, weddings, and other types of photography. Both of the included flash heads come with a bi-color LED modeling lamp adjustable from 2800 to 6000K. These LED modeling lights output 1400 lux at 3.3′ and can be set to proportional to mimic the effects of the flash’s power setting for pre-visualizing your final shot, or can be adjusted from 10 to 100%. The H200J II provides up to 5.5 hours of continuous modeling light, while the H200 II offers up to 6 hours.

Easy Mounting

The AD200Pro II ships with a bracket that has a 5/8″ receiver to mount separately available stands. The unit features 1/4″-20 threads conveniently placed in different parts of its body.

Other Specs & Benefits

• Supports TTL, M, and Multi modes
• Guide number of 170′ / 52m at ISO 100 (speedlite flash head)
• Guide number of 196′ / 60m at ISO 100 (bare bulb flash head)
• S1 and S2 modes
• High-speed sync enables shutter speeds up to 1/8000 sec
• First curtain and second curtain sync modes
• Stroboscopic flash up to 90 times
• Flash exposure compensation
• Fan cooled for improved heat dissipation

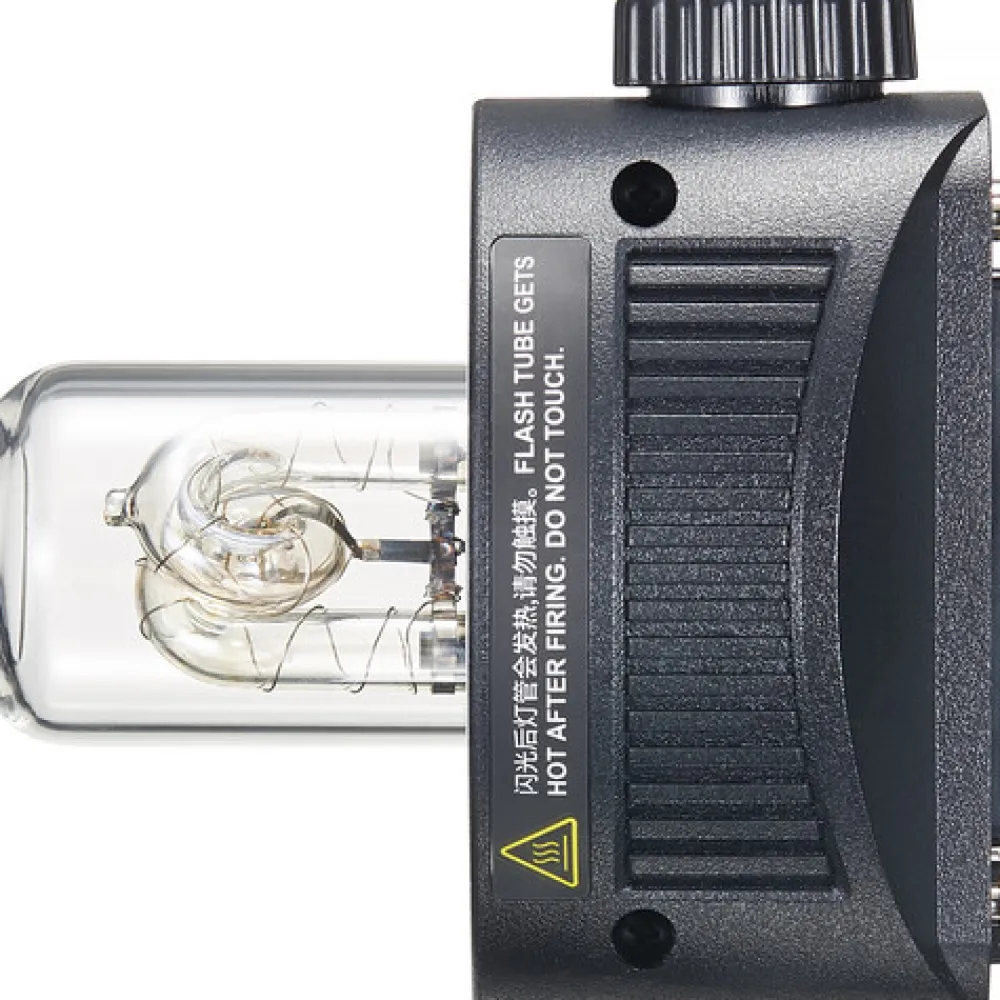

• Replaceable flash tube
• Quick charging port
• Allows for firmware updates
• Optional barndoors, softbox, and other modifiers and accessories are available to personalize your work
• Not compatible with the Godox AD-B2 dual power flash bracket

Pocket-Size Portability

At just 2 lb, users can create a kit with two or more AD200Pro II units without it being a burden to carry around. It measures only 8.27 x 3.07 x 2.05″ when combined with its speedlite head and 10.24 x 3.54 x 3.11″ with its bare bulb head.

Item Type  1x Monolight

Includes Flash Tube  Yes

Included Storage Case  Yes

Power Range  200 Ws

Power Control  10-Stop Range

Guide Number  170.6′ / 52 m, ISO 100

Recycle Time  0.01 to 1.8 Sec

Color Temperature  5800K +/- 200K

Flash Ready Indicator  Audio & Visual

TTL Metering  Yes, via Non-Included Transmitter (Canon E-TTL / E-TTL II, FUJIFILM TTL, Nikon i-TTL, Sony ADI / P-TTL)

Cooling System  Fan

Umbrella Mount  No

Front Accessory Mount  Proprietary

Replaceable Flash Tube  Yes (User Replaceable)

Modeling Light  LED Built-In (2800 to 6000K)

Control Modes  Free Set, Off, Proportional

On/Off Switch  Yes

Wireless  2.4 GHz Radio/RF  *Built-In

Wireless Remote Control Type  Radio/RF Receiver Built-In

Optical Receiver Built-In

Mobile App Compatible  No

Wireless Channels  32

Wireless Groups  16

Wireless Frequency  2.4 GHz

Wireless Range  328.1′ / 100 m (Radio/RF)

Flash Duration  1/23,500 to 1/272 Sec

Sync Speed  1/8000 Sec (High-Speed)

Delay Range  0.01 to 30 Sec

Power Source  Battery (Included)

Inputs/Outputs  1x 1/8″ / 3.5 mm Flash Sync Input
 1x USB-C Battery/Firmware Input

Battery  1x Rechargeable Lithium, 14.4 VDC, 2900 mAh (Included)
  • 500 Flashes at Maximum Brightness

Battery Charging  1x Single-Bay Charger (Included)

Input Power  14.4 VDC

Auto Dump  No

Fixture Mounting  Support Mount
 2x 1/4″-20 Female Thread

Included Adapter  1x Swivel Mount: 1/4″-20 Male Screw to 5/8″ Receiver

Dimensions  8.27 x 3.07 x 2.05″ / 21.01 x 7.8 x 5.21 cm

Weight  2 lb / 907 g

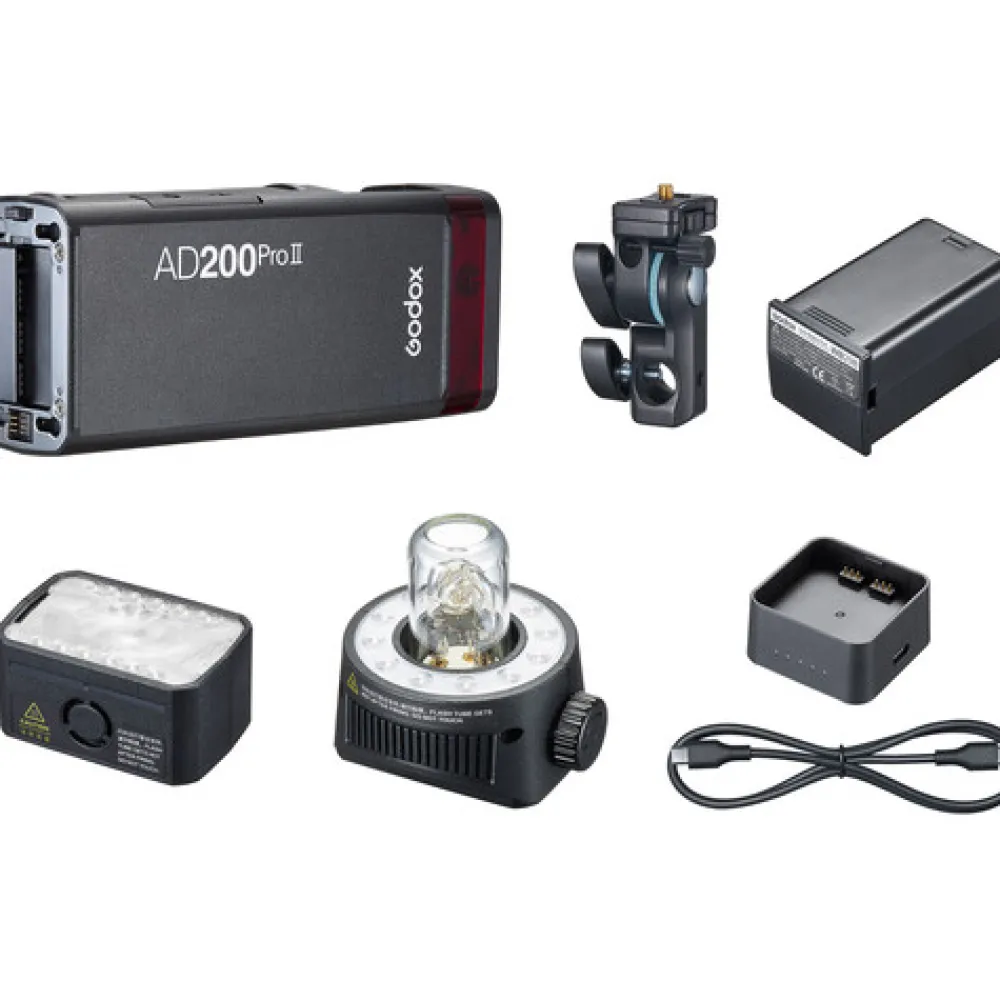

Godox AD200Pro II TTL Pocket Flash

• Flash Body
• H200 II Speedlite Flash Head
• H200J II Bare Bulb Flash Head
• Flash Tube
• Battery
• Charger
• PD Adapter
• USB Cable
• AD-E2 Holder
• Battery Protection Cover
• Carry Bag
