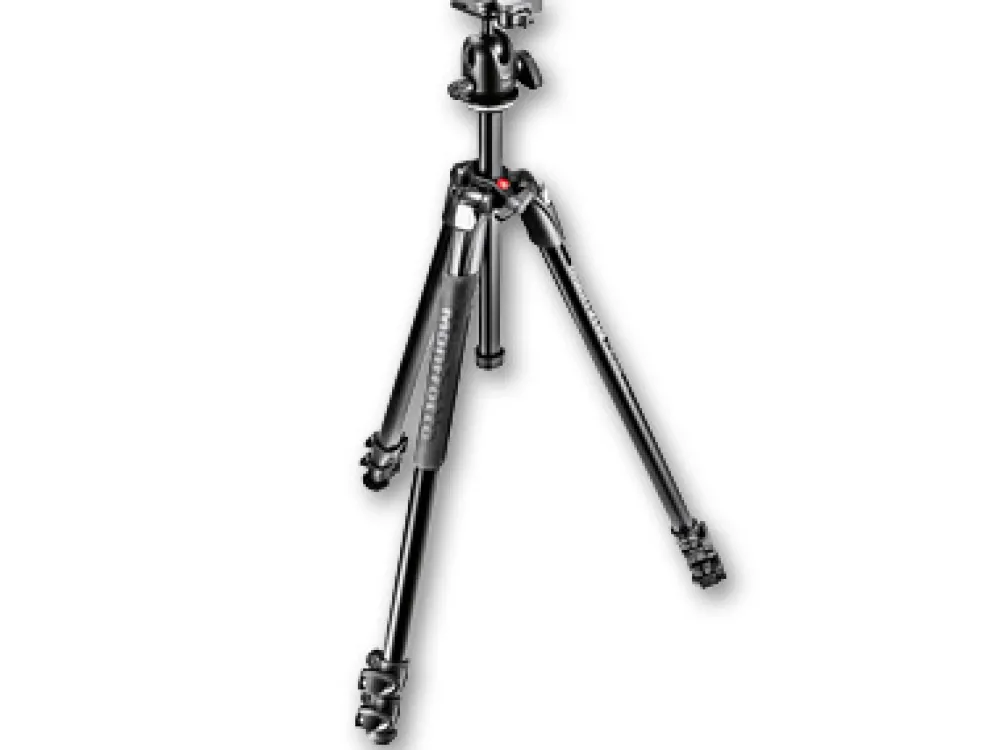

Manfrotto Tripods / Heads | MK290XTABH290 Xtra Aluminium Tripod /w Ball Head

AT A GLANCE

• Load Capacity: 11 lb
• Max Height: 66.9″
• Min Height: 15.7″
• Folded Length: 27.8″
• Leg Sections: 3
• Weight: 4.9 lb
• Four Leg Angle Positions
• Shoulder Carrying Bag Included

DESCRIPTION

The Manfrotto MK290XTA-BH 290 Xtra Aluminium Tripod with Ball Head extends from 15.7″ to a maximum height of 66.9″. It weighs 4.9 lb and can hold up to 11 lb of gear. The tripod’s 3-section legs have flip locks to individually change the height of each leg. The locks are tension-adjustable to help maintain a tight lock over the tripod’s lifespan. Four leg angles allow you to position the tripod in a variety of ways. A rubber grip on one of the legs aids in carrying the tripod, and rubber feet keep it stable on slippery surfaces. Included with the tripod is a shoulder bag for added comfort and protection during transport.

The included 496RC2 Compact Ball Head is constructed of die-cast aluminum, has a single repositionable locking lever, ±90° tilt movement, plus a friction control for precise positioning. An RC2 quick-release plate allows for fast and easy camera attachment.

MT290XTABH 290 Xtra Aluminium Tripod
The Manfrotto MT290XTA3US 290 Xtra Aluminum Tripod extends from 12″ to a maximum height of 63.2″. It weighs 4.4 lb and can hold up to 11 lb of gear. The tripod’s 3-section legs have flip locks to individually change the height of each leg. The locks are tension-adjustable to help maintain a tight lock over the tripod’s lifespan. Four leg angles allow you to position the tripod in a variety of ways. A rubber grip on one of the legs aids in carrying the tripod, and rubber feet keep it stable on slippery surfaces. Included with the tripod is a shoulder bag for added comfort and protection during transport.

496RC2 Compact Ball Head with RC2 Quick Release
The Manfrotto 496RC2 Compact Ball Head with RC2 Quick Release is constructed of die-cast aluminum, strong enough to support SLR or DSLR cameras with a medium lens, and light medium format cameras. It has a single repositionable locking lever, ±90° tilt movement, plus a friction control for precise positioning. Cameras are attached to the ball head with the 200PL-14 Plate with 1/4” male threads. The head to tripod attachment has 3/8” female threads. Additionally, the Quick Release has a safety system to prevent an accidental detaching from the head.

SPECIFICATIONS

Load Capacity 11 lbs / 5 kg
Maximum Height 57.1″ (145 cm)
Maximum Height w/o Column Extended 53.9″ / 136.9 cm
Minimum Height 12″ / 30.5 cm
Folded Length 23.4″ / 59.4 cm
Head Mount Type 3/8″-16 Screw
Weight 3.9 lbs / 1.8 kg
Material Aluminium Alloy

Legs

Material Aluminum
Leg Stages/Sections 5
Leg Lock Type Flip Lock
Independent Leg Spread Yes, 4 positions

Centre Column

Center Column Sections 1
Center Column Extension Type Rapid
Lateral / 90-Degree Center Column No
Box Dimensions (LxWxH) 25.0 x 4.5 x 4.5″

496RC2 Compact Ball Head with RC2 Quick Release

Material Aluminium
Type Ball Head
Load Capacity 13.23 lb (6.0 kg)
Tripod Mount Thread Size 3/8″-16 Female thread
Camera Mount Thread Size 1/4″-20
Quick Release Yes, RC2 with 200PL-14 camera plate
Adjustments ±90°
Panning: 360°
Separate Panning Lock No
Tension Control Yes
Ball Sphere Diameter Not specified by manufacturer
Bubble Level No
Base Diameter Not specified by manufacturer
Dimensions Working height: 3.94″ (10 cm)
Weight 0.71 lb (0.42 kg)

MT290XTABHB 290 Xtra Aluminium Tripod
• Shoulder Carrying Bag496RC2 Compact Ball Head with RC2 Quick Release
• 200PL-14 Rectangular Quick Release Plate with 1/4″-20 Screw
