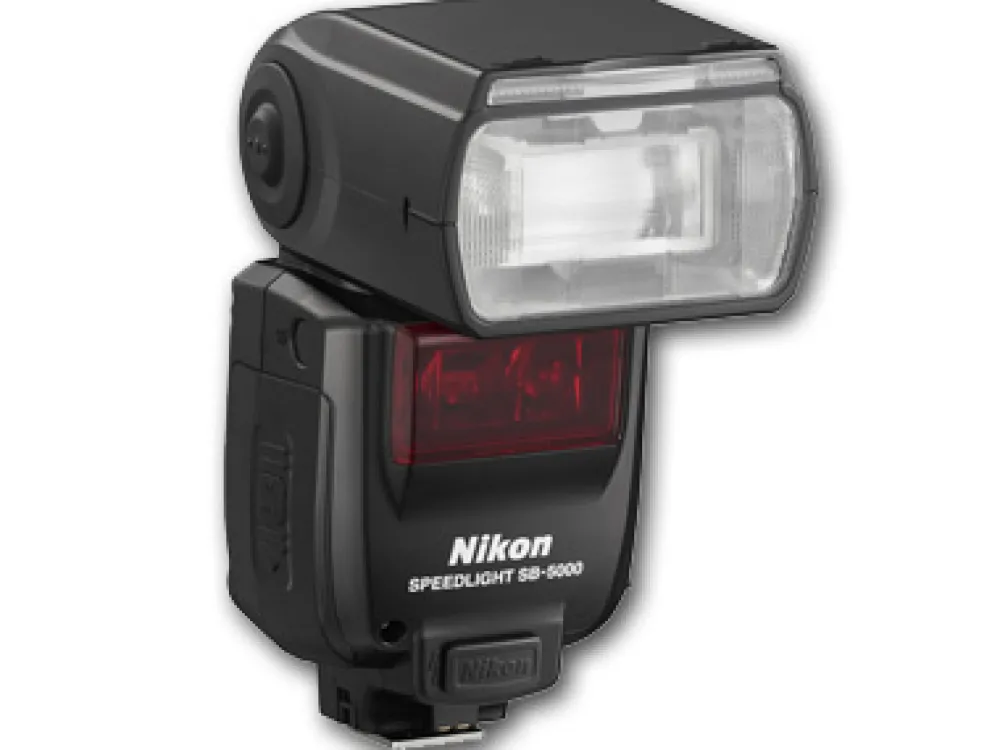

Nikon On-Camera Flash | SB-5000 AF Speedlight Flash

The Nikon SB5000 is Nikon’s best flash!

• AT A GLANCE



  • Radio Control Advanced Wireless Lighting
  • Cooling System for 100 Consecutive Shots
  • Compatible with Nikon i-TTL
  • Guide Number: 113′ at ISO 100 and 35mm
  • Zoom Range: 24-200mm (14mm with Panel)
  • Tilts from -7° to 90°
  • Rotates Left & Right 180°
  • Info Button for Quick Access to Settings
  • Recycle Time: 1.8-2.6 Seconds
  • Slow, High-Speed, 1st & 2nd Curtain Sync

  DESCRIPTION

  Nikon has reimagined both on- and off-camera lighting with the SB-5000 AF Speedlight, which brings revolutionary radio control to the Creative Lighting System with Advanced Wireless Lighting and comes equipped with a world’s first shoe-mounted flash cooling system that enables up to 100 consecutive full-power flashes. These features alone are enough to put it at the top of the speedlight heap, but the SB-5000 doesn’t rest and provides a powerful guide number of 113′ at ISO 100 and 35mm while also shrinking in overall size compared to its predecessors.

  Of course, the SB-5000 AF Speedlight is fully compatible with Nikon’s i-TTL automatic exposure system found in a majority of their cameras for fast, accurate operation. Along with this, the radio control implemented in the SB-5000 requires a compatible DSLR using the WR-A10 Wireless Remote Adapter and WR-R10 Wireless Remote Controller in order to fully realize the power of the system. This enables the camera and flash to wirelessly control up to 6 groups of flashes from up to 98′ away, without requiring any line of sight. Also, the SB-5000 and the radio system are fully compatible with the existing optical triggering method of older units and can even be mixed and matched for maximum versatility.

  Designed for reliability as well as versatility, the innovative built-in cooling system of the SB-5000 is a first for shoe-mounted flashes. It allows the unit to fire up to 100 consecutive full power flashes without issue by venting heat quickly and efficiently. It also means that the flash can be made smaller without compromising performance. This new design also ensures speedy and intuitive operation, implementing an Info button for fast access to some of your most commonly used settings.

  As a standard flash the SB-5000 with not disappoint, providing a wide ranging zoom head of 24-200mm which can be extended down to 14mm with use of the built-in diffusion panel. The head will also tilt from -7 to +90° and rotation left and right 180° for complete bounce capabilities. Full sync mode support is available with slow, high-speed, 1st and 2nd curtain options.

  In addition to this, the flash has a quick recycle time of 1.8-2.6 seconds and runs on 4 AA batteries. It can be powered by select external Battery Packs. A PC terminal can be found on the SB-5000 for further triggering options and it comes supplied with a stand, diffusion dome, fluorescent and incandescent filters, and a soft case.



• Radio control Advanced Wireless Lighting when used with a D5 or D500 DSLR equipped with WR-R10 Wireless Remote Controller and WR-A10 Wireless Remote Adapter
• Radio triggering range of 98′ with no line-of-sight requirement and with control over 6 groups of flashes
• Shoe-mount flash cooling system with a heat-shedding design enables over 100 bursts at full output without overheating
• Guide number of 113′ at ISO 100 and 35mm or 180′ at ISO 100 and 200mm
• Coverage of 14-24mm in FX when using built-in wide-angle diffusion panel
• Manual power output from 1/1 to 1/256
• Light distribution angle is automatically adjustable to the camera’s image area in both FX and DX formats with standard, even, and centre-weighted options
• Wireless Commander TTL capabilities with both optical and radio trigger options
• Commander Mode to set up optical wireless flashes in 3 groups and in one of 4 channels
• Control and mix optical and radio flashes
• Backlit rear LCD panel
• Customize settings with Unified Flash Control and a personal computer with version 2.23 or later of Nikon’s Camera Control Pro 2 software installed
• Flash head tilts with click-stops at -7°, 0°, 45 °, 60°, 75°, and 90°
• Flash head rotates left and right with click-stops at 0°, 30°, 60°, 75°, 90°, 120°, 150°, and 180°
• Flash exposure compensation from -3 to +3 EV in 1/3 EV steps
• Info button for fast access to commonly adjusted settings
• Works with SK-6 Power Bracket Unit and SD-9 High-Performance Battery Pack
• Flash-ready indicator lights
• Flash duration of 1/980 to 1/30,820 second depending on output setting
• AF-assist light, modelling illuminator, monitor pre-flashes, and test firing settings
• Automatic colour filter detection for adjusting the camera’s colour temperature settings
• Firmware can be updated through camera

SPECIFICATIONS

Mount Shoe
Guide No.

• 113.19′ (34.5 m) ISO100 at 35 mm position
• 180.45′ (55 m) ISO100 at 200 mm position

Exposure Control Manual, i-TTL
Angle of Coverage84° – 12°
Wide-Angle Adapter 114° – 84°
Vari-Power 1/1 – 1/256
Bounce Head -7° to +90°
Swivel Head 360°
Coverage 14 mm – 200 mm (Full frame)
Zoom Head Full frame: 24 mm – 200 mm
Off Camera Terminal PC
Recycle Time Approximately 1.8 – 2.6 seconds
Flash Duration 1/980 – 1/30820 sec
Flash-ready Indicator Yes
Compensation -3 EV to +3 EV (in 1/3 EV steps)
Wireless Operation Method RF

• Distance: Up to 98.43′ / 30 m
• Mode: Commander, Slave
• Method: Optical pulse
• Distance: Up to 32.81′ / 10 m
• Mode: Commander, Slave

Wireless Communication Channels 4 Channels
Wireless Groups 6 Groups
Power Source 4x AA Alkaline, Rechargeable NiMH Batteries
Dimensions (WxHxD) 2.9 x 5.4 x 4.1″ / 73.0 x 137.0 x 103.5 mm
Weight 14.82 oz / 420 g

Nikon SB-5000 AF Speedlight

• SW-15H Diffusion Dome for SB-5000 Speedlight
• AS-22 Speedlight Stand for SB-700 (Replacement)
• SZ-4FL Fluorescent Filter
• SZ-4TN Incandescent Filter for SB-5000 AF Speedlight
• SS-5000 Soft Case for SB-5000 AF Speedlight
