OM System On-Camera Flash | FL 600R Wireless Flash

AT A GLANCE

• TTL, AUTO, Manual
• Wide LCD, Integrated LED Light
• Bounce: 90° – 7.0° Tilt
• Swivels Side-To-Side Up To 180°
• Built-In Wide Panel, Catch Light Plate
• Remotely Fires Other Flashes
• Usable As A Slave
• 3 Groups Of Flashes Configurable
• 4 Wireless Channels

DESCRIPTION

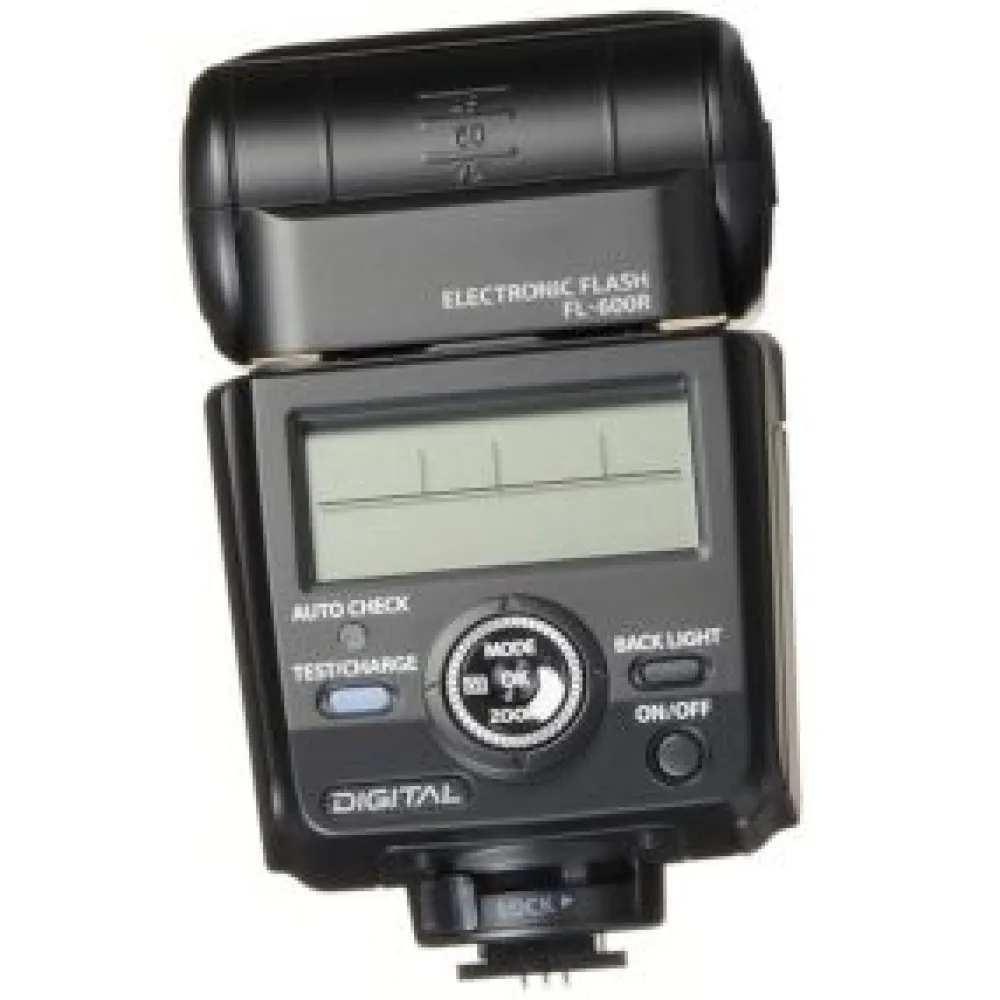

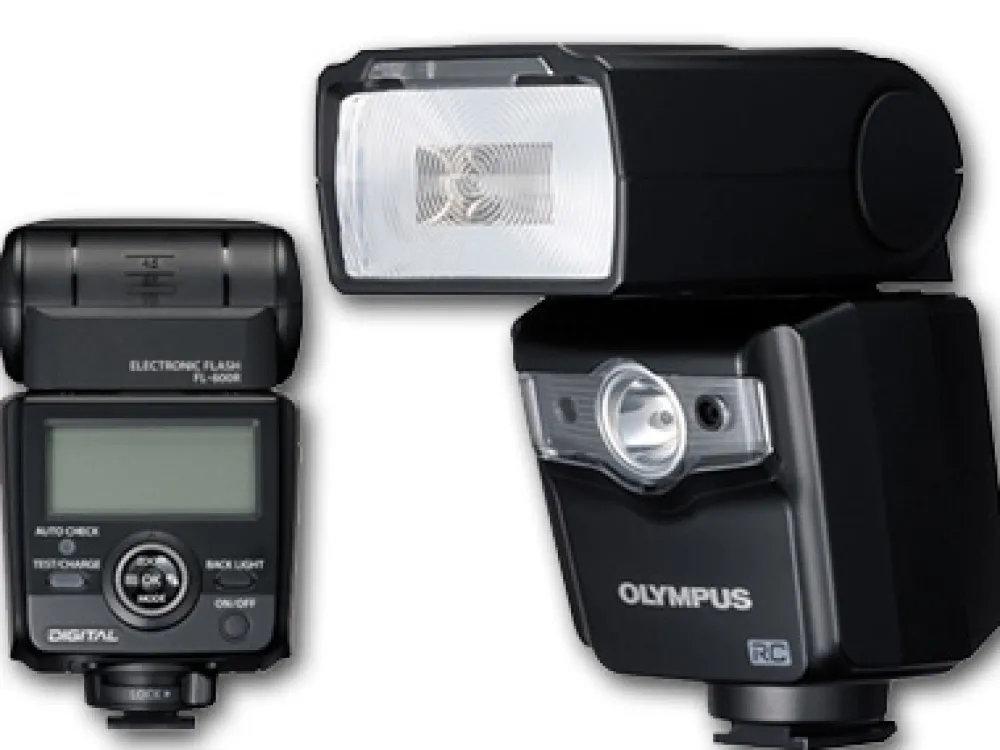

The Olympus FL-600R Wireless Electronic Flash is an easy-to-use external flash boasting a wide LCD and wireless control. An integrated LED light is capable of functioning as an AF illuminator for still images or full-time auxiliary lighting for video capture. Usable as a bounce flash, the FL-600R tilts upward to 90° and downward to 7.0°, and also swivels side-to-side up to 180° in each direction. The unit features a built-in wide panel and catch light plate, so you need not worry about misplacing them during travel. The flash settings are adjustable via the arrow keys and dial on the rear of the unit, or by using the controls on an attached camera.

When used in wireless mode, the FL-600R has an integrated commander function for remotely firing other wireless flash units without firing itself. A versatile unit, it may also be used as a slave flash, controlled via a camera’s built-in flash or another commander unit. As many as 3 groups of flashes, as well as a clip-on flash like the FL-LM2, can be configured independently. There are 4 wireless channels available, preventing interference from other photographers’ flashes. The FL-600R can also be attached and locked securely onto a camera’s hot shoe, or mounted externally with a compatible flash bracket and cable like the FL-BK01, FL-BKP02, FL-BKM03 or FL-BK04.

Drawing its power from 4 AA alkaline or Ni-MH batteries, the FL-600R’s charging time is roughly half that of the FL-50R, enabling you to get back to shooting even faster.

Note! Wireless mode not fully functional with OLYMPUS PEN E-P1, E-1 or Evolt 300 330 410 500 510. Wireless Mode only works in Manual mode (not TTL) on flash. Flash provides TTL when mounted directly on these models.

Wireless TTL mode possible with SP-560UZ, SP-565UZ, SP-570UZ and SP-590UZ, which do not have hotshoe. Firmware (available via OLYMPUS Master 2 / Digital Camera Updater software) of SP-560 UZ must be updated to provide functionality.

• Wide LCD screen
• Integrated LED light is capable of functioning as an AF illuminator for still images or full-time auxiliary lighting for video capture
• Guide number of 50 at ISO 200, 36 at ISO 100 when built-in wide panel not in use; 17 at ISO 200, 12 at ISO 100 when using built-in wide panel
• 8.0mm equivalent coverage (35 mm equivalent focal length = 16 mm) with built-in wide panel
• Usable as a bounce flash, the FL-600R tilts upward to 90° and downward to 7.0°, and also swivels side-to-side up to 180° in each direction
• 30° firing angle
• Built-in wide panel and catch light plate, so you need not worry about misplacing them during travel
• Flash settings are adjustable via the arrow keys and dial on the rear of the unit, or by using the controls on an attached camera
• 6 modes: TTL-AUTO, AUTO, Manual, FP TTL-Auto, FP Manual, RC
• When used in wireless mode, the FL-600R has an integrated commander function for remotely firing other wireless flash units without firing itself
• A versatile unit, it may also be used as a slave flash, controlled via a camera’s built-in flash or another commander unit
• As many as 3 groups of flashes, as well as a clip-on flash like the FL-LM2, can be configured independently
• 4 wireless channels available, preventing interference from other photographers’ flashes
• Can also be attached and locked securely onto a camera’s hot shoe, or mounted externally with a compatible flash bracket and cable like the FL-BK01, FL-BKP02, FL-BKM03 or FL-BK04
• Drawing its power from 4 AA (R6) alkaline or Ni-MH batteries, the FL-600R’s charging time is roughly half that of the FL-50R, enabling you to get back to shooting even faster
• Comes with flash stand, soft case, instruction manual and warranty card

SPECIFICATIONS

Mount Shoe
Guide No. 50′ (15.24 m) ISO200 at 8 mm position
Exposure Control Manual/TTL
Angle of Coverage 30°
Bounce Head Yes, +90° to +7°
Swivel Head Yes, 180°
Wireless Communication Channels 4 Channels
Wireless Groups 3 Groups
Power Source 4x AA Alkaline, Rechargeable Ni-MH Batteries
Dimensions (WxHxD) 2.4 x 4.1 x 1.1″ / 6.1 x 10.4 x 2.8 cm
Weight .58 lb / .26 kg

• Olympus FL-600R Wireless Electronic Flash
• Flash Stand
• Soft Case
• Instruction Manual
