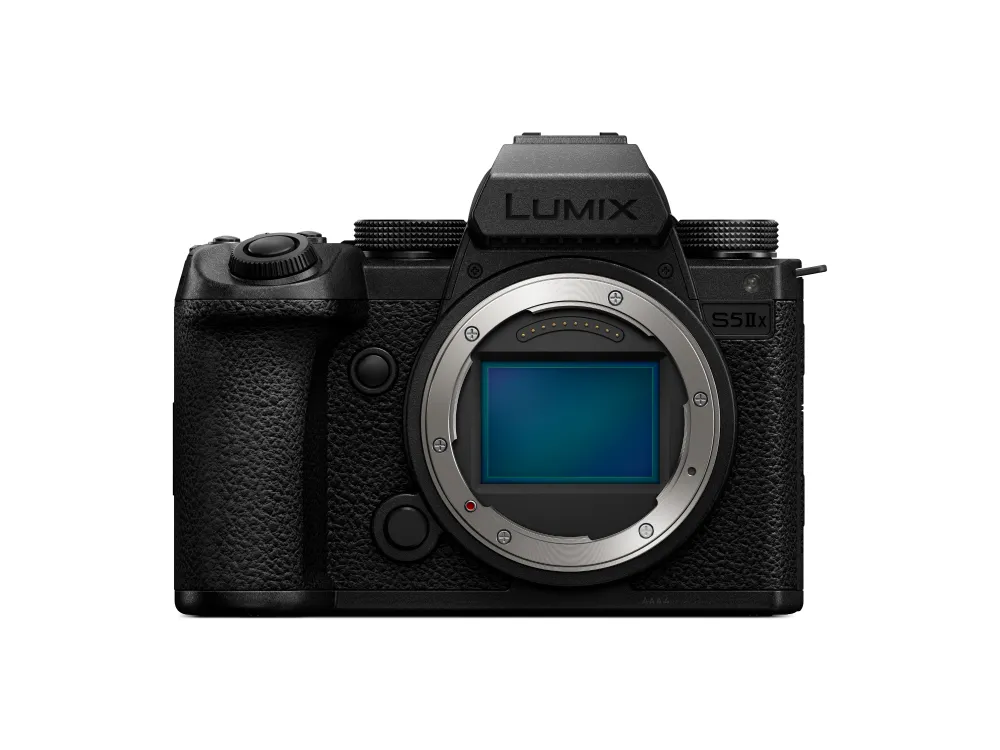

Panasonic Interchangeable Lens Cameras | Mirrorless Cameras Only | DC-S5IIx Camera Body
$192.00
Lens mount L-MountIMAGE SENSORType 35mm full-frame (35.6mm x 23.8mm) CMOS sensorCamera effective pixels / Total pixe…
Lens mount L-Mount
IMAGE SENSORType 35mm full-frame (35.6mm x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels 24.20 megapixels / 25.28 megapixels
AR (Anti Reflection) coating Yes
Aspect ratio / Color filter 3:2 / Primary color filter
Dust reduction system Image sensor shift type
LATITUDE 14+ stops (V-Log)
STILL IMAGE Recording file format JPEG (DCF, Exif 2.31), RAW
Aspect ratio 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
File size (Pixels) When using full-frame lenses 3:26000×4000(L) / 4272×2848(M) / 3024×2016(S) / 12000×8000(XL)* / 8496×5664(LL)* *High Resolution mode.
4:35328×4000(L) / 3792×2848(M) / 2688×2016(S) / 10656×8000(XL)* / 7552×5664(LL)* *High Resolution mode.
16:96000×3368(L) / 4272×2400(M) / 3024×1704(S) / 12000×6736(XL)* / 8496×4784(LL)* *High Resolution mode.
1:14000×4000(L) / 2848×2848(M) / 2016×2016(S) / 8000×8000(XL)* / 5664×5664(LL)* *High Resolution mode.
65:246000×2208(L)
2:16000×3000(L)
When using APS-C/Super 35mm lenses 3:23984×2656(L) / 2880×1920(M) / 2064×1376(S)
4:33536×2656(L) / 2560×1920(M) / 1840×1376(S)
16:93984×2240(L) / 2880×1624(M) / 1920×1080(S)
1:12656×2656(L) / 1920×1920(M) / 1376×1376(S)
Image quality RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine)
Color spaces RGB, AdobeRGB
MOTION PICTURE Recording file format MOV: H.264/MPEG-4 AVC, H.265/HEVC
MP4: H.264/MPEG-4 AVC, H.265/HEVC
Audio format MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
MP4: AAC (2ch 48kHz/16-bit)
*When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).
System frequency 59.94Hz / 50.00Hz / 24.00Hz
Image area of video Full / APS-C / PIXEL/PIXEL
[6K] 5952×3136 (17:9)29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [5.9K] 5888×3312 (16:9)29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [C4K] 4096×216029.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [4K] 3840×216029.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [FHD] 1920×1080119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
APS-C / PIXEL/PIXEL[C4K] 4096×216059.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [3.3K] 3328×2496 (4:3)47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [FHD] 1920×1080119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Image Area of Video is set to APS-C.
50.00HzFULL[6K] 5952×3968 (3:2)25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[6K] 5952×3136 (17:9)25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [5.9K] 5888×3312 (16:9)25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [C4K] 4096×216025.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [4K] 3840×216025.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [FHD] 1920×1080100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
APS-C / PIXEL/PIXEL[C4K] 4096×216050.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [3.3K] 3328×2496 (4:3)50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [FHD] 1920×1080100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Image Area of Video is set to APS-C.
24.00HzFULL[6K] 5952×3968 (3:2)24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[6K] 5952×3136 (17:9)24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [5.9K] 5888×3312 (16:9)24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [C4K] 4096×216024.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [4K] 3840×216024.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [FHD] 1920×108048.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
APS-C / PIXEL/PIXEL[C4K] 4096×216048.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [3.3K] 3328×2496 (4:3)48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) [FHD] 1920×108048.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
MP4 (*1)59.94HzFULL[4K] 3840×216029.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
APS-C / PIXEL/PIXEL[4K] 3840×216059.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
50.00HzFULL[4K] 3840×216025.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
APS-C / PIXEL/PIXEL[4K] 3840×216050.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
VIEWFINDER Type OLED Live View Finder
Pixels Approx. 3.68 million dots
Field of view / Magnification Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2
Eye point / Diopter adjustment Approx. 21 mm at infinity; -1.0 m-1 / -4.0 – +2.0 (dpt)
Eye sensor Yes
Display speed 120fps / 60fps
REAR MONITOR Type TFT LCD monitor with static touch control
Monitor size Free-angle, 3.0-inch (7.6cm), 3:2 aspect
Pixels Approx. 1.84 million dots
Field of view Approx. 100%
FOCUS Type Phase Detection AF system / Contrast AF system
DFD technology Yes
Focus mode AFS (Single) / AFC (Continuous) / MF
AF modeTracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
*Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set.
AF detective range EV -6 – 18 (F1.4, ISO100 equivalent, AFS)
AF custom setting AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light Yes
AF lock Set the Fn button in custom menu to AF lock
Focus ring control Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum)
Others AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resum
EXPOSURE CONTROL Light metering system1,728-zone multi-pattern sensing system
Light metering mode Multiple / Center Weighted / Spot / Highlight Weighted
Metering range EV0-18 (F2.0 lens, ISO100 equivalent)
Mode dial Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto
*The same exposure operations as P/A/S/M mode is available.
Exposure compensation 1/3 EV step ±5EV (±3EV for motion picture)
ISO sensitivity (Standard output sensitivity)[Normal]Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO
[V-Log]Auto / 320* / 640-51200 (1/3 or 1 EV step) *Extended ISO [HLG]Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISODual Native ISO[Normal]Native ISO: 100, 640
Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
Low: Auto / 50* / 100-800 *Extended ISO
High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO
Auto: Auto / 320* / 640-51200 *Extended ISO
Low: Auto / 320* / 640-5000 *Extended ISO
High: Auto / 2000* / 4000-51200 *Extended ISO [HLG]Native ISO: 400, 2500
Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
Low: Auto / 400-3200
High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO [Cinelike D2 / Cinelike V2]Native ISO: 200, 1250
Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
Low: Auto /100* / 200-1600 *Extended ISO
High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO
AE lockSet the Fn button in custom menu to AE lock
IMAGE STABILIZATION SYSTEMB.I.S. (5-axis / 5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.]Dual I.S. 2 (6.5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]
WHITE BALANCE White balanceAWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustmentBlue/Amber bias, Magenta/Green bias
Color temperature setting 2500-10000K in 100K
SHUTTER TypeFocal-plane shutter
Shutter speed Still image: Bulb (Max. 30 minutes), 1/8,000 – 60
Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 – 60
Electronic shutter: Bulb (Max. 60 sec), 1/8,000 – 60
Motion picture: 1/16,000 – 1/25
Creative Video M mode / MF mode: 1/16,000 – 1/2
Self timer 10sec, 3 images / 2sec / 10sec / Custom Time
Remote control Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter typeYes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
BRACKET AE bracket3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket 3, 5 or all positions
Focus bracket 1 to 999 images, focus steps can be set in 10 levels
White balance bracket 3 images in blue/amber axis or in magenta/green axis, color temperature setting
BURST SHOOTING Burst speedMechanical shutter /
Electronic front curtain shutterH: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
L: 2 frames/sec (AFS/AFC/MF) (with Live View)
Electronic shutter SH30: 30 frames/sec (AFS/AFC/MF)
H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
L: 2 frames/sec (AFS/AFC/MF) (with Live View)
Number of recordable imagesH/M/L*
RAW+JPEG: More than 200 images
RAW: More than 200 images
JPEG: More than 300 images
*Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
*When using a card with SD Speed Class with “UHS-II UHS Speed Class 3 (U3)”.
SH
RAW / RAW+JPEG / JPEG: 200 images
FLASH Flash typeTTL External Flash (sold separately)
Synchronization speed Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode.
Flash mode Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment 1/3EV step ±3EV
Wireless control Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
EXTRA TELE CONVERSION 2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording.
COLOR SETTINGS Photo StylePhoto StyleStandard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)*
*Set to ON from Show/Hide Photo Style to select.
Picture adjustment Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB / LUT
*Adjustable settings vary depending on the Photo Style mode.
Filter Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass
LUT Library Vlog_709 / Set 1-10
*REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied from these settings.
MOTION PICTURE FUNCTION Time lapse shot Yes
Stop motion animation Yes
Live cropping Yes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes)
SS/Gain operation Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Luminance level 8-bit: 0-255 / 16-235 / 16-255
10-bit: 0?1023 / 64?940 / 64?1023
Synchro scan Yes
Master pedestal level 31 steps
Color bars / 1kHz test tone Yes (SMPTE / EBU / ARIB) / Yes
LUT view assist Supported file types: .vlt, .cube
Monitor / HDMI
HLG view assistMonitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Wave form monitor / VectorscopeSelectable
Knee control Yes (in Like709 mode)
Red REC frame indicator ON / OFF
VERTICAL POSITION INFORMATION Still image / Motion picture (ON/OFF)
LEVEL GAUGE Yes
INTERFACE USB USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))
HDMI (*2) HDMIHDMI TypeA
Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
Monitor-through 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
Playback 59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*
50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*
24.00Hz: C4K/24p / 4K/24p / 1080p
*Only for playback.
Remote input φ2.5mm
Audio Build-in microphoneStereo
Wind Noise Canceller: OFF / Standard / High
External microphone / External audio device inputφ3.5mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE
Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately).
Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
XLR microphone Yes with DMW-XLR1 (sold separately)
4ch mic input Yes with DMW-XLR1 (sold separately)
Speaker Monaural
Headphone output φ3.5mm
SD card slot Slot 1, Slot 2
SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
WIRELESS Wi-Fi2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
5GHz bands (STA) (IEEE 802.11a/n/ac)
Security: WPA/WPA2/WPA3
Please refer to “Wi-Fi” Sheet
Bluetooth Bluetooth® v5.0 (Bluetooth Low Energy (BLE))
DUST AND SPLASH RESISTANT *Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
POWER BatteryLi-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
USB power supply, USB power charging, USB power delivery
Battery life (CIPA standard) Approx. 370 images, 1,250 images (Power Save LVF mode*) with S-R2060
Approx. 370 images, 1,200 images (Power Save LVF mode*) with S-S50
*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Continuous recordable time (Motion picture) (*1)MP4 [4K/60p]: Approx. 90 min (APS-C), MP4 [FHD/60p]: Approx. 130 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
Actual recordable time (Motion picture) (*1)MP4 [4K/60p]: Approx. 45 min (APS-C), MP4 [FHD/60p]: Approx. 65 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
Battery grip DMW-BGS5 (sold separately)
DIMENSIONS / WEIGHTDimensions (W x H x D)Approx. 134.3 x 102.3 x 90.1 mm / 5.29 x 4.03 x 3.55 inch (Body only, excluding protrusions)
Weight Approx. 740g / 1.64 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap)
Approx. 657g / 1.45 lb (Body, Hot Shoe Cover) (excluding body cap)
OPERATING ENVIRONMENT Operating temperature (*3)0? to 40? (32? to 104?)
Operating humidity 10%RH to 80%RH
show more…
- Panasonic Lumix DC-S5M2 Mirrorless Digital Camera (Body Only)
- Body Cap
- Hot Shoe Cover
- Cover for Battery Grip connector
- Battery Pack
- AC Adapter
- USB connection cable
1 Year Manufacturer’s Warranty.
For additional protection, consider purchasing an extended 3-year warranty … bringing the total warranty period to 4 years! Click on the warranty section on the checkout page.
Be the first to review “Panasonic Interchangeable Lens Cameras | Mirrorless Cameras Only | DC-S5IIx Camera Body”
Related products
Action Cameras
Action Cameras
Action Cameras
Action Cameras
Action Cameras
Reviews
There are no reviews yet.
