Panasonic Telephoto Zoom | Mirrorless Lenses Only | Lumix S 18-40mm F4.5-6.3 lens

AT A GLANCE

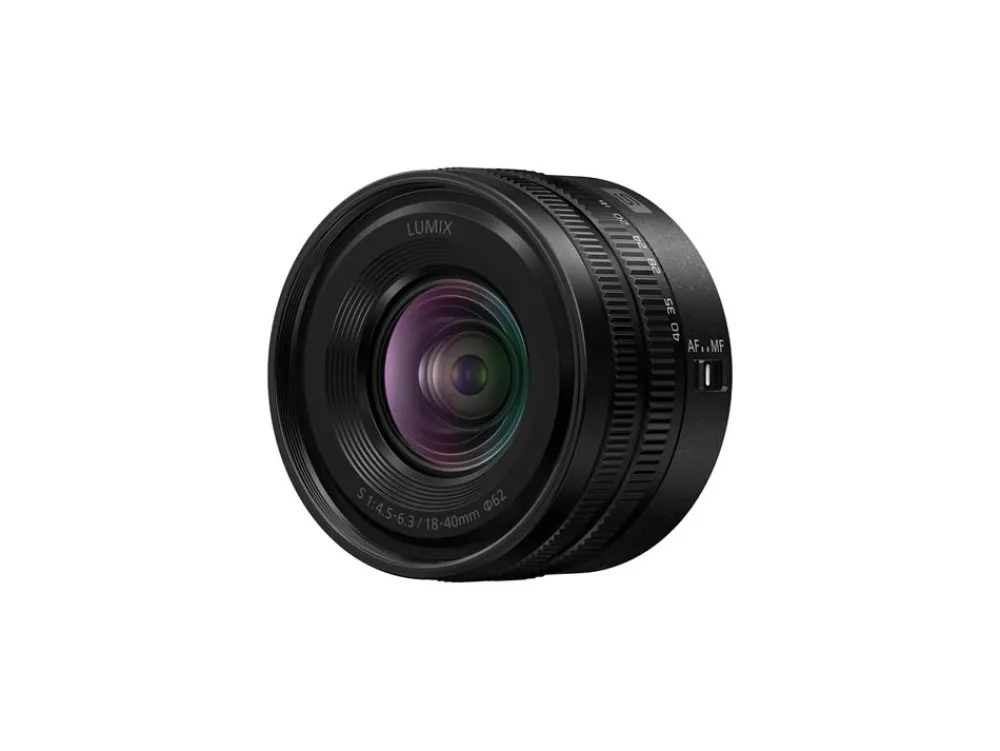

The new LUMIX S 18-40mm is the world’s smallest and lightest* zoom lens, weighing approximately 155g/0.34lb, and is designed to be a compact and lightweight addition to the LUMIX S Series full frame lens line up. This lens covers focal lengths from an ultra-wide angle of 18mm to a standard 40mm, with a closest shooting distance of 0.15m/0.49ft, allowing for the flexibility to capture expansive landscapes and buildings or portrait shots in a natural perspective.

In addition, the lens incorporates the high-quality video performance expected from LUMIX with effective focus breathing suppression.

Main Features

1. The World’s Smallest and Lightest* Zoom Lens

– Designed to be compact and portable with dimensions of φ67.9 x 40.9 mm** and a light weight of 155g

– A perfect partner to the compact full frame LUMIX S9 camera

– Robust and reliable dust, splash and freeze-resistant design with fluorine coating

2. Unique 18-40mm Focal Length

– 18mm ultra-wide angle allows for capture of expansive landscapes, while the standard 40mm is perfect for shots with a natural perspective

– Capable of 18-120mm with the Hybrid Zoom function on the LUMIX S93.

3. Ideal for Both Videography and Photography

– Excellent performance in both photo and video, capturing in high-resolution with beautiful bokeh

– Effectively suppresses focus breathing, in which the angle of view changes caused by movements in the focus position

* As of October 8, 2024. Among AF compatible interchangeable zoom lenses for full-frame mirrorless cameras.



Lens Construction  8 elements in 7 groups (3 aspherical lenses, 2 ED lenses, 1 UHR lens) (excluding 1 protection element)

Mount  L-Mount

Optical Image Stabilizer – No

Focal Length  18-40mm

Aperture Type  7 diaphragm blades / Circular aperture diaphragm

Maximum Aperture  F4.5 (Wide) – F6.3 (Tele)

Minimum Aperture  F22 (Wide) – F32 (Tele)

Closest Focusing Distance  0.15m/0.49ft (at focal length 18-21mm) / 0.35m/1.15ft (at focal length 40mm)

Maximum Magnification  0.28x (at focal length 21mm)

Diagonal Angle of View  100°(Wide) – 57°(Tele)

Dust and Splash Resistant  Yes*

Recommended Operating Temperature  -10? to 40?  (14? to 104?)

Filter Size  φ62mm

Max. Diameter  φ67.9mm / 2.67inch

Overall Length  Approx. 40.9mm / 1.61inch  (from the tip of the lens to the base side of the lens mount)

Weight  Approx. 155g / 0.34lb (excluding lens cap and lens rear cap)

*Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.



Panasonic Lumix S 18-40mm f4.5-6.3 lens

• Front Lens Cap
• Rear Lens Cap
