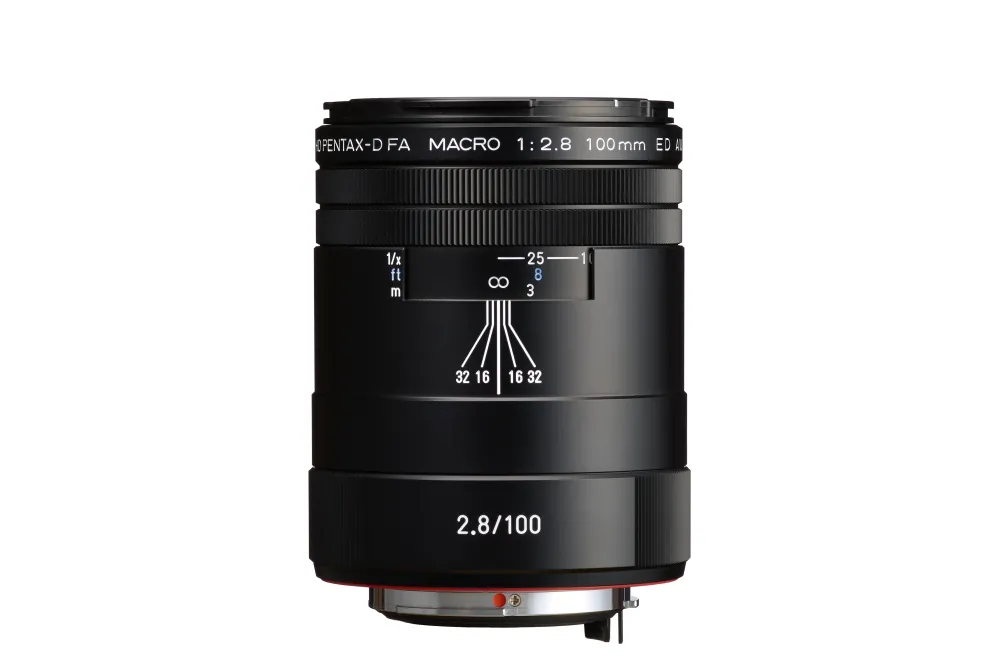

Pentax Macro Lens | 100mm HD-D FA MACRO F2.8ED AW Lens

Exceptional imaging performance made possible by the latest optical design technologies The lens incorporates one ED (Extra-low Dispersion) glass optical element and two Anomalous Dispersion glass optical elements to compensate for various aberrations and minimize the generation of the unwanted purple fringe effect. This is coupled with the high-grade, multi-layer HD (High Definition) Coating, which significantly reduces average reflectance in the visible ray spectrum to less than 50 percent compared to conventional models, and the innovative FREE (Fixed Rear Element Extension) focusing system. All together, these technologies effectively reduce the generation of flare and ghost images to a minimum over the entire focus range — from minimum focusing distance to infinity — and deliver clear, highquality images.

 Dustproof, weather-resistant AW construction for exceptional outdoor shooting reliability Ready for adverse weather conditions, the lens features dustproof, weather-resistant AW (All Weather) construction for the first time in a PENTAX macro lens. This dependable construction prevents the intrusion of dust and moisture into the interior, using six sealing parts to optimize airtight performance. When mounted on a dustproof, weather-resistant PENTAX digital SLR camera body, it creates a highly dependable, durable imaging system that performs superbly in demanding shooting conditions — such as snow, mist, rain, or in locations prone to splashing or spraying water.

 Exclusive exterior design and outstanding operability The lens has an attractive, stylish appearance with its metallic exterior parts meticulously machined from high-grade aluminum. Its focus ring features the PENTAX-original Quick-Shift Focus System, which allows the photographer to instantly shift the focus mode from auto to manual after the subject has been captured in focus by the camera’s autofocus system. This single-action operation assures a smooth, comfortable focus-mode switching during manual focus shooting, for dramatically improved operability.

 Compact, lightweight design for superb maneuverability Despite the greatly improved imaging power made possible by the new optical design and outstanding AW construction which provides improved dust-proof, weather-resistant performance, the lens is design is almost as compact and lightweight as the smc PENTAX-D FA MACRO 100mm F2.8 WR (launched in December 2009), assuring outstanding weight distribution, ergonomics, and maneuverability

 A working distance of 5.1 inches (13 centimeters) at life-size magnification to facilitate the shooting of unapproachable subjects, such as insects • Circular diaphragm produces a natural, beautiful bokeh (defocus) effect from open aperture to F5.6, while minimizing the streaking effect of point light sources. • SP(Super Protect)Coating applied to the front optical element helps to keep the front surface free of dust or stains

Focal Length 100mm Equivalent to 153mm in 35mm format (when attached to PENTAX APS-C size DSLR cameras)

Maximum Aperture F2.8

Minimum Aperture F32

Lens Construction 10 elements in 8 groups

Angle of View (Diagonal) 24.5° 16° (when attached to PENTAX APS-C size DSLR cameras)

Mount KAF

Minimum Focusing Distance 0.303 m (1.0 ft.)

Maximum Magnification 1.00x

Filter Diameter 49 mm

Diaphragm Control Fully automatic

Number of Diaphragm Blades 8

Rounded diaphragm (100mm:F2.8-F5.6)

Aperture Ring N/A

Tripod Mount N/A

Maximum Diameter x Length approx. 65 mm x 80.5 mm (approx. 2.6 in. x 3.2 in.)

Weight approx. 348 g /with Lens Hood approx. 387 g (approx. 12.3 oz. / with Lens Hood approx. 13.7 oz)

Temperature -10°C~40°C (14°F~104°F) Humidity 85% or less (no condensation)

What’s in the Box:
• 100mm HD-D FA MACRO F2.8ED AW Lens
• Lens Hood PH-RBE49
• Lens Cap O-LC49
• Lens Case S80-120
