MAIN FEATURES:

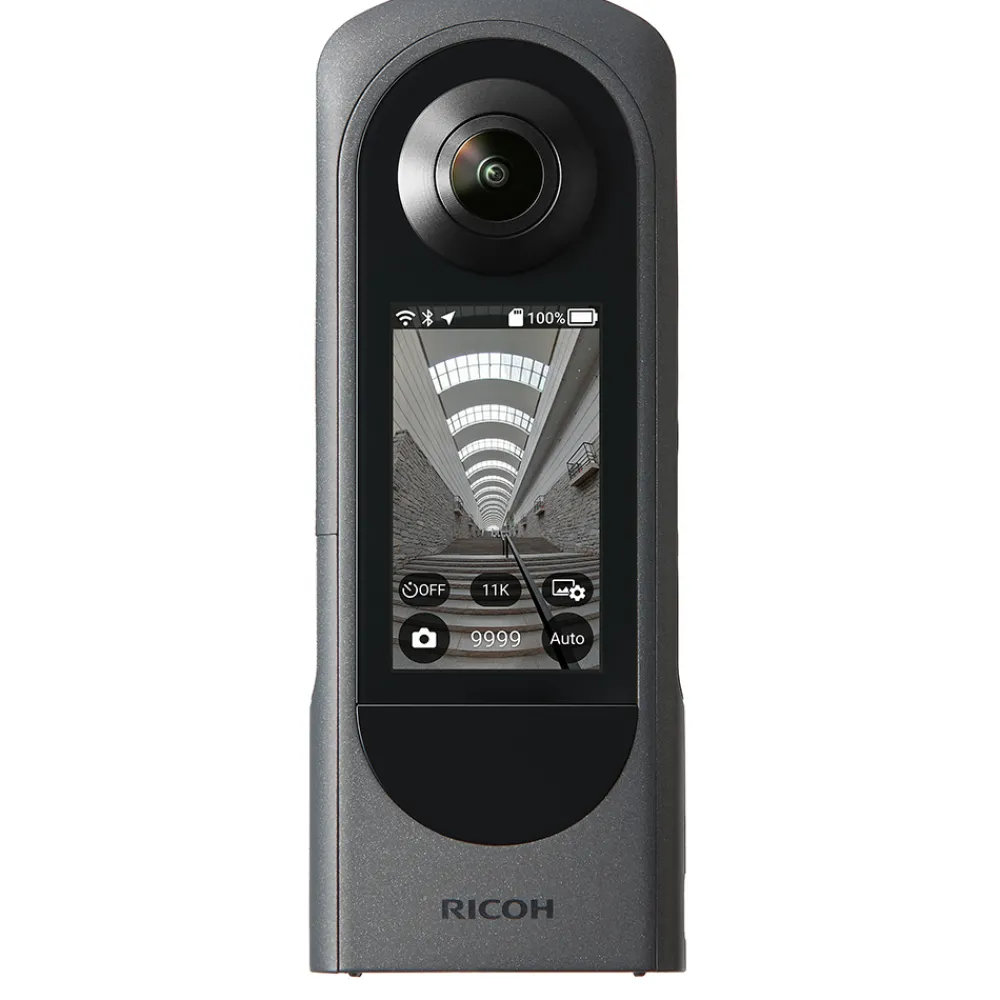

 Large user-friendly 2.25-inch touch screen display

The large, user-friendly 2.25-inch touch screen display significantly improves operability. Preview the scene before image capture, adjust shooting settings and view images you have taken on the touch panel without having to connect to a smartphone.

 High-resolution 360-degree still image and video capture

The CMOS image sensor, main processor, and lens design have all been renewed. Incorporating a new sensor with approximately 48MP, it is now possible to capture highresolution 360-degree still images with a maximum output of approximately 60MP. Two image sizes are available to match the scene: 11K for a high-resolution bright-light indoor photography, and 5.5K to capture images easily and efficiently in other scenarios. In addition, enhanced image stabilization realizes vivid and smooth shooting for 360-degree videos to be captured at a 5.7K-equivalent resolution of 5760 × 2880 pixels at 30 frames per second (fps).

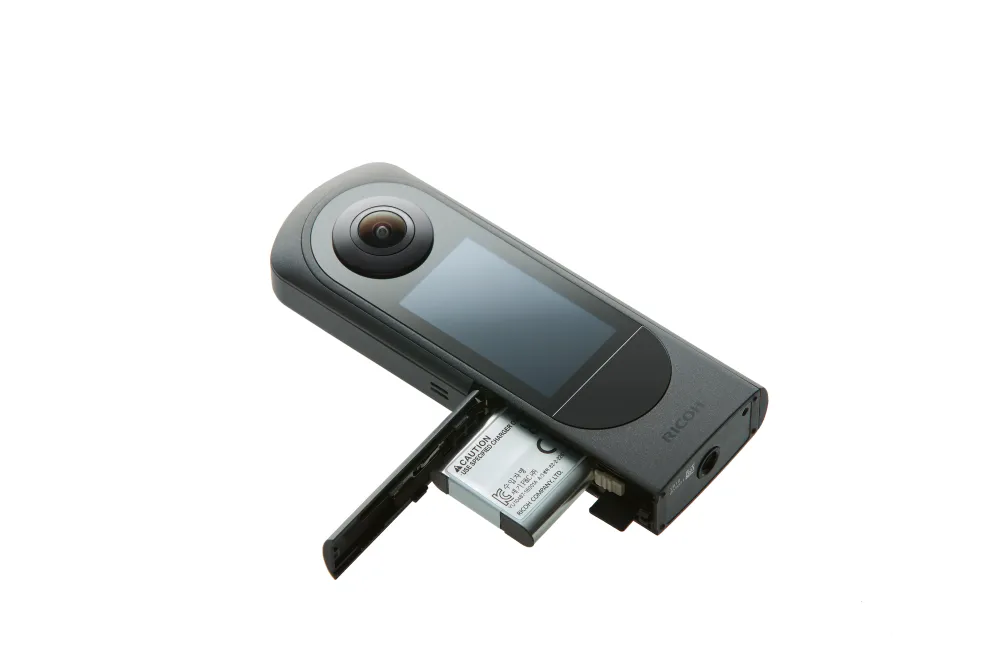

 Ability to switch battery and memory cards

For the first time in the RICOH THETA series, the THETA X is powered by an interchangeable battery (Rechargeable Battery DB-110). Plus, in addition to the 46GB internal memory, storage capacity can be increased with the use of an external microSDXC memory card. Even when shooting long hours or capturing many images, users can continue shooting without worrying about remaining battery levels or storage capacity.

 Increased compatibility with smartphone

The THETA X can easily make a wireless connection to a smartphone without the need to enter an SSID by establishing a Bluetooth connection. Incorporated MIMO* wireless communication technologies and real-time processing, such as top/bottom correction while shooting videos, makes it possible to transfer still images and videos from the camera to a smartphone at higher speeds**.

*Multiple Input Multiple Output technology that communicates using multiple antennas

** Approximately 1.5 times faster compared with the conventional camera RICOH THETA V while shooting 5.5K still images under the same condition according to actual measurements taken by Ricoh

Improved expandability of the camera

Like the THETA V and THETA Z1, the THETA X utilizes an Android-based OS, allowing third-party developers to develop and release applications (plug-ins) to expand the function of the camera. Additionally, the camera’s large touch screen display significantly extends the scope for plug-in development. It is now also possible to easily set up the “client mode” (a mode used to directly connect the RICOH THETA to a wireless router) without using a smartphone. This allows plug-ins to be installed and firmware to be updated simply by operating the THETA X itself without using a computer or smartphone, making it easy to expand functions to suit the user’s needs

Additional Features

• The camera employs magnesium alloy for the body exterior, ensuring robustness and excellent heat dissipating properties.

• With built-in GPS and support for A-GPS function, accurate positional information can be obtained from the device.

• Through the USB Type-C port on the side of the main body, power can be supplied to the camera even during tripod use without using the optional extension adapter.

• Time Shift Shooting mode allows the photographer to capture an image without being in the frame, and continuous shooting mode continuously captures 20 still images per second (when shooting 5.5K still images).

• Incorporates a touch shutter function that allows a photo to be taken by tapping on the touch screen in addition to pressing a shutter button.

• Images can be registered as favorites from the list of images shown on the touch panel display. The images marked as favorites can be viewed on the THETA app on a smartphone.

• Still image playback orientation can be selected in shooting settings. The RICOH THETA X features AI Auto, which utilizes AI recognition technology to identify the subject in images captured and display from that point.

• Exposure compensation and white balance can be adjusted with the camera itself before livestreaming.

• Easily switch between various shooting modes (still image, video, custom settings, livestreaming, plug-in) using only the mode button on the camera.

Specifications:

Lens Construction 7 Elements in 7 Groups

Lens F Number F2.4

Object Distance Approx. 40cm – ∞ (from front of lens)

Image Sensor Size 1/2.0 type (x2)

Image Sensor Effective Pixels Approx. 48 megapixels (x2)

File Size Still Images 11K: 11008 x 5504 (Approx. 60 megapixels)

5.5K: 5504 x 2752 (Approx. 15 megapixels)

File Size Videos 5.7K: 5760 x 2880 /30fps /120Mbps,64Mbps,32Mbps (*)

  4K: 3840 x 1920 /60fps /120Mbps,64Mbps,32Mbps (*)

  4K: 3840 x 1920 /30fps /100Mbps,54Mbps,32Mbps

  2K: 1920×960 /30fps /32Mbps,16Mbps,8Mbps

(*) Available when the wireless LAN is off or when power is supplied via the AC Adapter K-AC166* (Not included) connected without the battery inserted.

Live Streaming (USB) 4K: 3840×1920 /30fps /100Mbps *1

File Format Still image: JPEG (Exif Ver. 2.3.1)

  Video:MP4(Video: MPEG-4 AVC/H.264, Audio: AAC-LC(1ch))

  Live Streaming: Video:AVC/H.264, Audio: AAC-LC(1ch)

Recording Medium Internal memory: Approx. 46GB

microSDXC Memory Card (64GB or higher, and conforms to UHS-I interface and Video speed class V30, exFAT format)

Number of photos that can be recorded, time *2 With an Internal memory (Approx. 46GB)

  Still image: (11K) Approx. 4600 photos, (5.5K) Approx. 11500 photos

  Video (time per recording): Max. 5minutes/Max. 25 minutes *1

  Video (total recording time):  5.7K/30fps/120Mbps: Approx. 50 minutes

5.7K/30fps/64Mbps: Approx. 100 minutes

5.7K/30fps/32Mbps: Approx. 200 minutes

4K/60fps/120Mbps: Approx. 50 minutes

4K/60fps/64Mbps: Approx. 100 minutes

4K/60fps/32Mbps: Approx. 200 minutes

4K/30fps/100Mbps: Approx. 60 minutes

4K/30fps/54Mbps: Approx. 115 minutes

4K/30fps/32Mbps: Approx. 200 minutes

2K/30fps/32Mbps: Approx. 200 minutes

2K/30fps/16Mbps: Approx. 395 minutes

2K/30fps/8Mbps: Approx. 775 minutes

Exposure Control Mode Auto, Shutter Priority, ISO Priority, Manual

Shutter speed Still image: [AUTO] 1/16000 sec. to 1/8 sec (When the camera is determined to be stationary: Up to 1/2 seconds), [Shutter Priority, ISO Priority] 1/16000 sec. to 15 sec. [Manual] 1/16000 sec. to 60 sec.

Video: 1/16000 sec. to 1/30 sec.

Live Streaming: 1/16000 sec. to 1/30 sec.

ISO Sensitivity (standard output sensitivity) Still image, Video: [AUTO, Shutter Priority] ISO50 to 3200, The Upper Limit settings ISO100 to 3200, [ISO Priority, Manual] ISO50 to 3200

  Live Streaming: ISO50 to 3200

Exposure Compensation -2.0 to +2.0EV, 1/3EV step

White Balance Mode Auto, outdoor, shade, cloudy, incandescent lamp 1, incandescent lamp 2, daylight colour fluorescent lamp, natural white fluorescent lamp, white fluorescent lamp, light bulb colour fluorescent lamp, Underwater, Colour temperature(2500K-10000K) *3

Shooting Mode Still image, Video: Auto, Shutter Priority, ISO Priority, Manual

 Live Streaming: Auto

Wireless Communications Standard IEEE802.11 a/b/g/n/ac (2.4GHz/5GHz) *4 IEEE802.11 b/g/n (2.4GHz Only) Bluetooth 5.0

Wireless Communication Operating Frequency Band Range 2400MHz ~ 2483.5MHz 5150MHz ~ 5250MHz *4

Wireless LAN using Channel 2.4GHz:1 – 11ch or 1 – 13ch *4 5GHz:W52(36 – 48ch, Channel bandwidth 20/40/80MHz) *4

Wireless LAN Protocol HTTP (Open Spherical Camera API Level2), HTTPS(Plug-in Store, Update firmware)

External Interface USB Type-C, USB3.2 gen1

Remote Shutter Remote Control TR-1

Power Source Rechargeable battery DB-110 (1350mAh) *5

Battery Life Still image: Approx. 220 photos *6 Video:5.7K 30fps Approx. 30 minutes, 4K 30fps Approx. 55 minutes *6

Exterior/External Dimensions 51.7mm (W) x 136.2mm (H) x 29.0mm (21.5mm *7) (D)

Weight Approx. 170g (Included dedicated battery and SD memory card), Approx. 144g (Body only)



*1 If the temperature in the camera rises, shooting will end automatically. The maximum shooting time for recording 5.7K/30 fps and 4K/60 fps videos is approx. 10 minutes (at an ambient temperature of 25°C) due to the temperature rise of the camera. The maximum time for streaming 4K/30 fps live streaming is approx. 25 minutes (at an ambient temperature of 25°C). If the temperature in the camera rises rapidly due to the surrounding environment or shooting conditions, the shooting time will be even shorter.

*2 The number of photos and time are guides only. The actual number differs according to the photography conditions.

*3 The Colour temperature can be set for Still image or Video mode.

*4 That differs depending on the region.

*5 Charge the battery by connecting it to a PC using the supplied USB cable.

*6 The number of photos that can be taken is a guide based on RICOH’s measurement method. The actual number differs according to usage conditions.

*7 Excluding lens section

Ricoh THETA X Camera

• Rechargable Battery DB-110
• USB Cable
• Soft CAse
