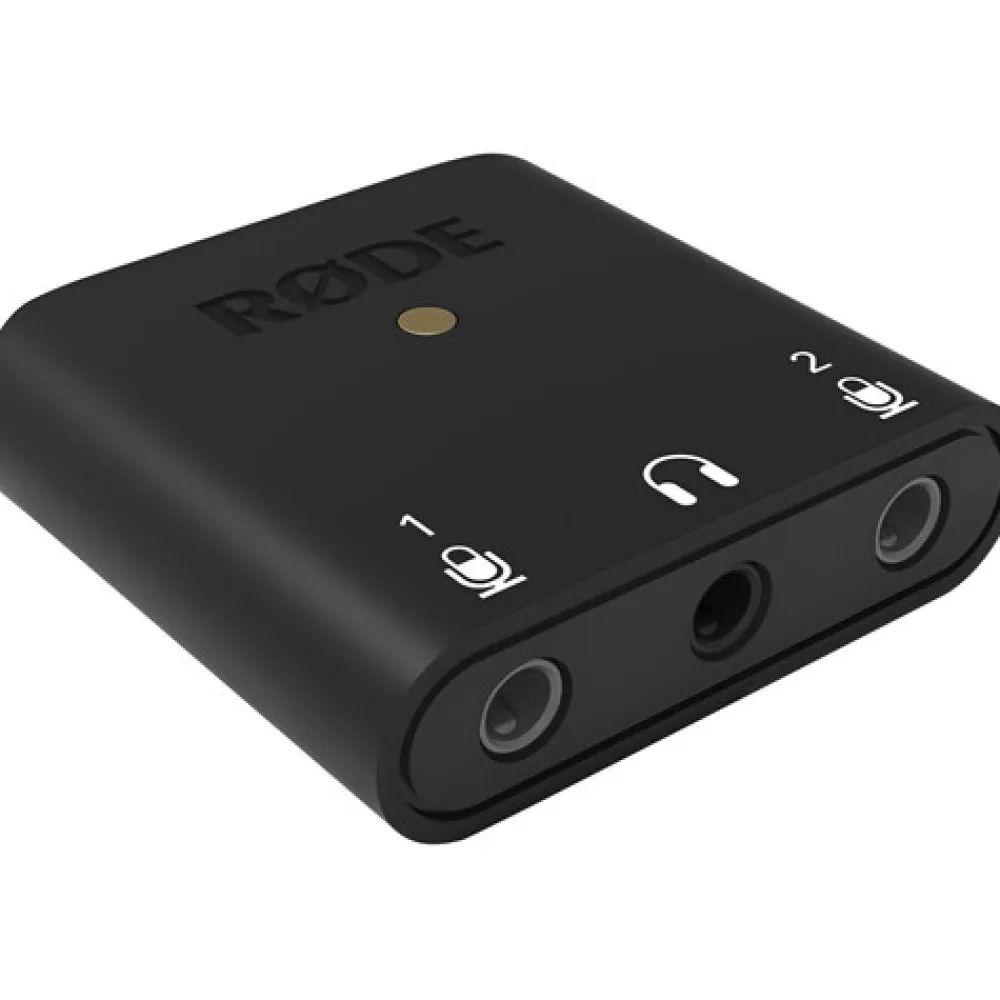

RODE Video Accessories | Microphones / Headphones / Speakers | AI-Micro Ultracompact  Audio Interface

AT A GLANCE

• Podcasters, Interviewers, Content Makers
• Connect Lightning, USB Type-A, and USB-C
• 2 Auto-Sensing TRS/TRRS Mic Inputs
• 1 Headphone Output
• Up to 24-Bit / 48 kHz Resolution
• Bus Powered / Mac, Windows, iOS, Android
• Zero-Latency Monitoring
• Expanded Functionality via Rode Apps
• Ultracompact and Portable Form Factor

Pocket friendly and bus powered, the AI-Micro is perfect for keeping your setup small and simple while maintaining quality, and enjoying convenient optimization and expanded functionality through Rode’s suite of popular apps.

The interface’s two mic inputs are auto-sensing jacks, allowing them to accept signal from a broad range of TRS/TRRS microphones without needing additional adapters. Monitor the live signal or playback via the built-in, zero-latency headphone port, and connect to virtually any mobile device or computer with the supplied USB Type-C, USB Type-A, and Lightning cables.

Record Two Mics at Once

With two mini-jack mic inputs and a USB Type-C output, the AI-Micro lets you simultaneously record two mics to your computer or mobile device at up to 24-bit / 48 kHz digital resolution. It’s ideal for interviews, podcasts, live streaming, and more. Alternatively, input 1 can be configured as a single stereo TRS input for use with stereo microphones.

Auto-Sensing Inputs

The two 3.5mm inputs are auto sensing and detect whether a TRS or TRRS microphone is connected, automatically switching to accommodate a wide variety of separately available mics such as the SmartLav+, Lavalier GO, RODELink Lav, any VideoMic with 3.5mm outputs, and more.

Built-In Headphone Output

The AI-Micro also features a high-quality 3.5mm headphone output for zero-latency audio monitoring and playback.

Universal Connectivity

Thanks to the supplied cables, the AI-Micro can connect seamlessly to USB Type-A, USB Type-C, and Lightning devices. Use it with your Mac/Windows computer, iPhone, iPad, or Android smartphone/tablet.

App Support

It is compatible with the Rode app suite including Rode Central, Rode Connect, and Rode Reporter, for accessing expanded features and functionality, on-the-go configuration, and broadcast-quality recording on any device.

Ultracompact and Portable

Easily held in the palm of your hand or tucked away in your pocket, the AI-Micro boasts an exceptionally small footprint. Plus, it is bus powered, so you never have to worry about swapping batteries or recharging it.

Rode AI-MICRO Specs

Form Factor  Mobile

Display  None

Channels of I/O  2 Inputs / 2 Outputs

Max Sample Rate/Resolution  48 kHz / 24-Bit

Number of Mic Preamps  2

Input Level Adjustment 2x via Software

Expansion Slots  None

Signal Processing

Pad  None

Gain/Trim Range  -24 to 0 dB

High-Pass Filter  75 to 150 Hz (via Software)

Solo/Mute  None

Connectivity

Analog Audio I/O  2 x 1/8″ / 3.5 mm TRRS Unbalanced Mic Input
 1 x 1/8″ / 3.5 mm TRS Unbalanced Headphone Output

Phantom Power  None

Digital Audio I/O  None

Host Connection / USB  1 x USB Type-C (Class-Compliant)

USB (Non-Host)  None

Sync I/O  None

Network I/O  None

MIDI I/O  None

Wireless Connectivity  None

Performance

Frequency Response  20 Hz to 20 kHz

Headphone Output Power  125 mW into 32 Ohms

Dynamic Range  100 dB (A-Weighted)

Digital Audio

Sample Rates  44.1 / 48 kHz

Sample Rate Conversion  None

Bit Depths  24-Bit

Latency  Zero-Latency Direct Monitoring

Sync Sources  Internal

Audio Storage & Playback

Memory Card Slot  None

Compatibility

OS Compatibility  macOS 11
Windows 10.19,041
 iOS 14
Android 9.0

Included Software  None

Compatible Software (Not Included  Any Core Audio (Mac) Compliant Software

Included Plug-Ins  None

Supported Drivers/API & Plug-Ins  macOS Class-Compliant (No Driver Needed)
Windows Class-Compliant (No Driver Needed)
Android Class-Compliant (No Driver Needed)

Mobile Device Compatibility  iPad
  iPhone
  Android Smartphone
  Android Tablet

Required Hardware  Available Lightning Port, USB Port, or USB Type-C Port

Internet Connection  Required for Registration, Software/Driver Download

Power

Power Requirements  USB Bus Power

Physical

Dimensions  1.6 x 1.5 x 0.4″ / 40 x 38.2 x 11.1 mm

Weight  0.5 oz / 13.0 g
