The All-in-One Streaming Solution

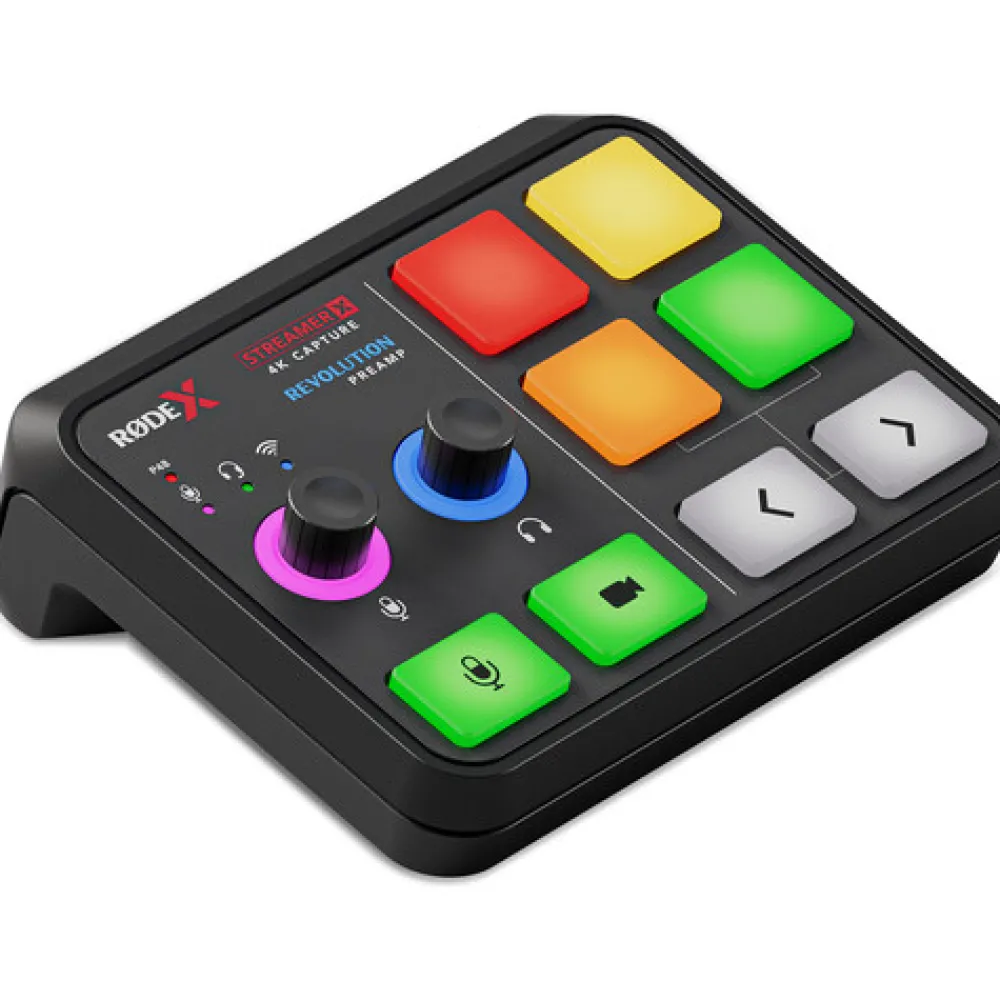

Combining a professional audio interface and a video capture card in one ultracompact, intuitive package, the Streamer X from RODE X represents a new way to livestream incredible, broadcast-quality audio and video. Sporting a studio-grade audio input for mic- or line-level sources, a low-noise, high-gain Revolution preamp with selectable phantom power, and powerful onboard APHEX audio processing, the Streamer X makes it easy to deliver pristine audio quality to your streams, and the Streamer X even features integrated wireless-receiver technology for compatibility with any RODE Series IV wireless microphones and transmitters.



Of course, modern streamers and content creators need quality video to keep up with the competition as well, and that’s why the Streamer X also features HDMI I/O that supports up to 4K 30 fps and 2K 60 fps streaming, and up to 2K 120 fps and 4K 60 fps pass-through for exceptional video quality that will enhance any modern application from gaming, streaming, and podcasting to video content creation and corporate presentations. Two dedicated USB-C connections allow for dual-PC setups, and with the four customizable SMART pads, you cant trigger sounds, voice FX, and other types of engaging material on the fly. And if that’s not enough, you can expand your console’s functionality with full compatibility for all of RODE’s software solutions, such as UNIFY, RODE Central, and RODE Connect.

Flexible I/O

Despite its compact size, the Streamer X sports just the right amount of connections to facilitate most livestreaming applications.



• An XLR-1/4″ combo input jack with a Revolution preamp and selectable 48V phantom power
• A 1/4″ headphone output for monitoring your streams
• A 3.5mm headset output to join in on your streaming and produce more engaging content
• HDMI input and output/through for streaming and passing through high-quality, 4K video
• Two USB-C connections for dual-computer setups
• A third USB-C connection for convenient bus power
• A Kensington security slot to keep your Streamer X secure during use in public spaces

Intuitive Interface

The interface is designed to be simple yet powerful with easy-to-use colorful buttons and knobs. Two color-coded knobs let you control your audio input and headphone output.

Multicolor customizable SMART pads allow you to trigger sounds and vocal FX in real time, and you can switch through multiple banks of sounds via the arrow buttons. You can activate or deactivate audio or video content directly with the two dedicated front-panel buttons.

Tiny Footprint, Huge Potential

The Streamer X provides incredible streaming potential in a miniscule form factor that is supremely easy to transport and will take up an absolute minimum of your workspace real estate. Whether used in the comfort of your home studio or in a live public setting, the Streamer X is compact, efficient, and attractive.

Channels of I/O  2 Inputs / 2 Outputs

Built-In DSP  None

Maximum Sampling Rate  48 kHz / 24-Bit

Number of Microphone Preamps  1 Preamp

Built-In Microphone  None

Expansion Slots  None

Analog Audio I/O  1 x Combo XLR-1/4″ TRS Mic/Line Input
 1 x 1/8″ / 3.5 mm TRRS Headset In/Out
 1 x 1/4″ TRS Headphone Output

Digital Audio I/O  None

Host Connection / USB  2 x USB-C

Host Connection Protocol  USB 3.0 / 3.1/3.2 Gen 1

USB (Non-Host)  None

Sync I/O  None

Network I/O  None

MIDI I/O  None

Other I/O  1 x HDMI Expansion Input
 1 x HDMI Expansion Thru

Wireless Connectivity  None

Sample Rates  48 kHz

Bit Depths  24-Bit

Sync Sources  None

Memory Card Slot  None

OS Compatibility  macOS
Windows
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility

Included Software  None

Included Plug-Ins  None

Mobile App Compatible  No
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility

Mobile Device Compatibility  None

Required Hardware  USB-C Port

Internet Connection  Required for Software/Driver Download

Power Requirements  AC/DC Power Adapter (Included)

AC/DC Power Adapter  Included

Anti-Theft Features  Kensington Security Slot



• RODE X Streamer X Audio Interface and Video Streaming Console
