Sirui Tripods / Heads | KV-10 Pan and Tilt Head with Leveling Base

AT A GLANCE

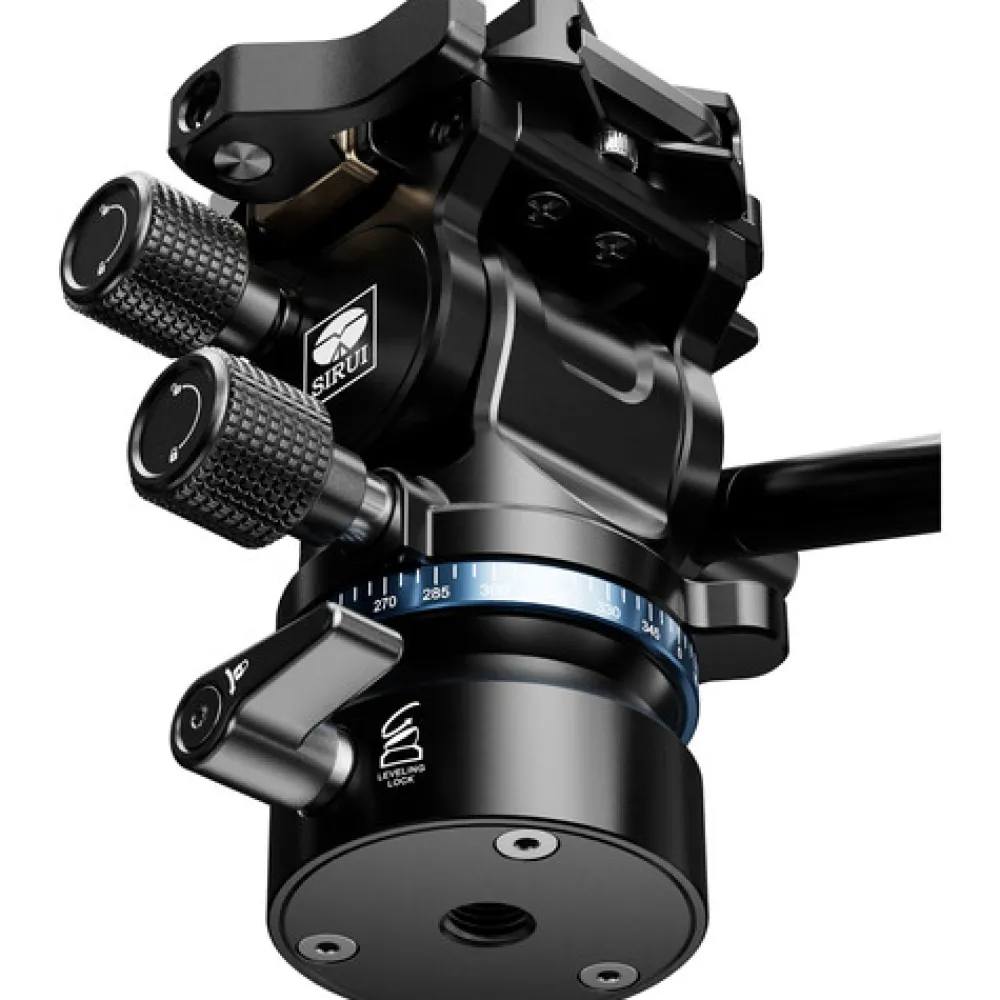

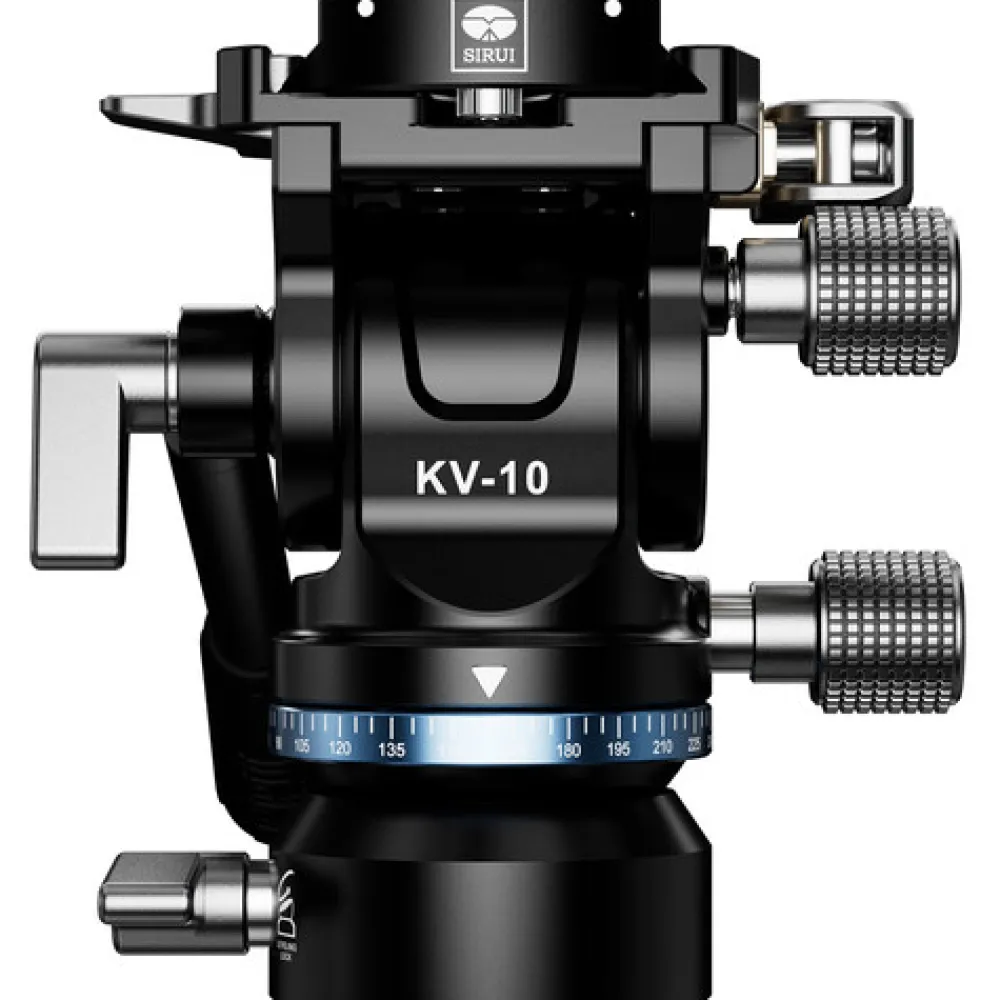

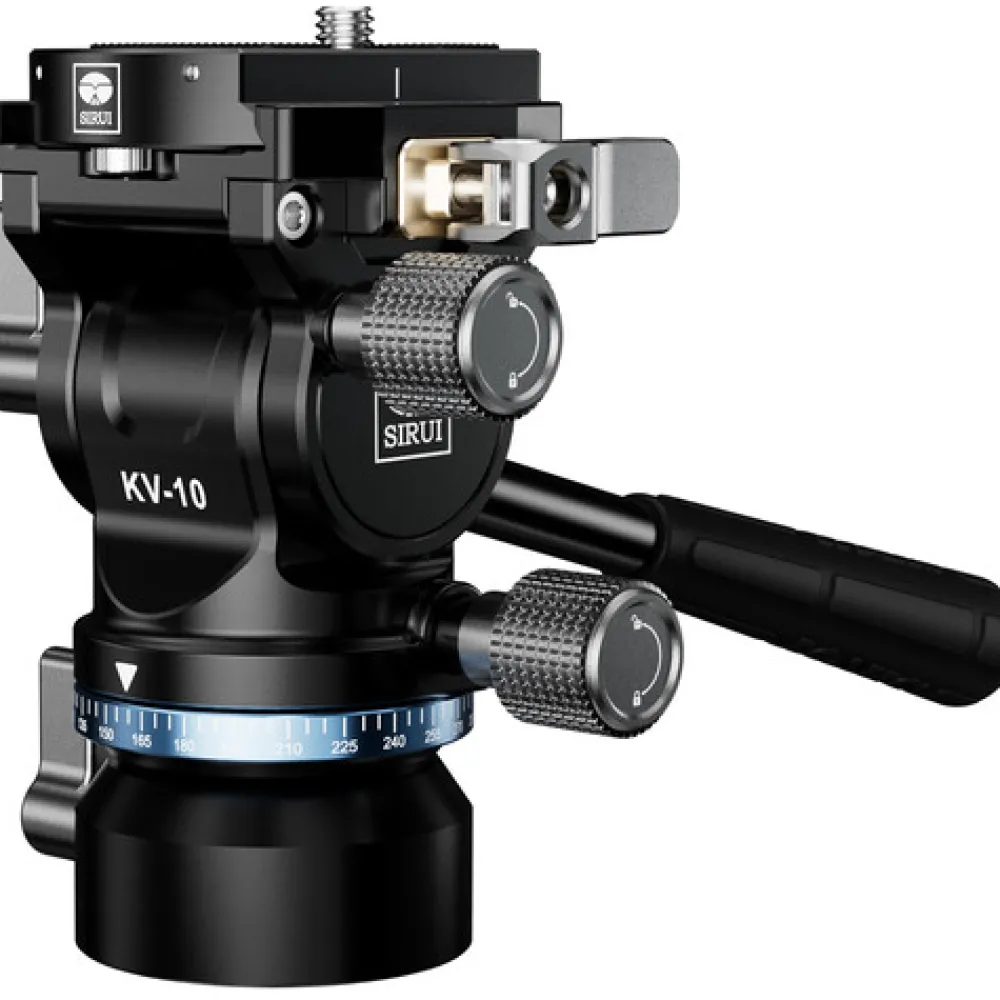

The KV-10 Pan and Tilt Head with Leveling Base from Sirui is a compact, lightweight head ideal for travel photography, vlogging, and vertical capture. It features a flat tripod base and an integrated ball base that provides up to 8° adjustment in any direction for rapid leveling. This aluminum alloy head also features a quick release plate with a secure, dual-lock system, a bubble level, a pan handle, and separate control knobs for pan, tilt, and drag. It weighs only 13.4 oz yet supports cameras weighing up to 11 lb and provides 90° tilt for portrait orientation and 360° pan.

Camera Attachment

Camera Mounting Screw  1x 1/4″-20 Male

Camera Plate  Quick Release

Head

Head Type  Ball Head

Base Mount  Flat Base with 3/8″-16 Female

Counter Balance  No

Head Dimensions  Base Diameter: 1.7″ / 43.00 mm
  Depth: 2.4″ / 62.00mm
 Width: 3.5″ / 90.00 mm
  Height: 3.9″ / 100.00 mm

Pan & Tilt

Drag Control  Yes

Independent Pan Lock  Yes

Independent Tilt Lock  Yes

Vertical Tilt  +90° to -90°

Lateral Tilt  No

General

Load Capacity  11 lb / 5 kg

Bubble Level  Yes

Weight  13.4 oz / 380 g

Sirui KV-10 Pan and Tilt Head with Leveling Base

• Quick Release Plate
• 1/4″-20 Screw
• Magnetic Allen Key
