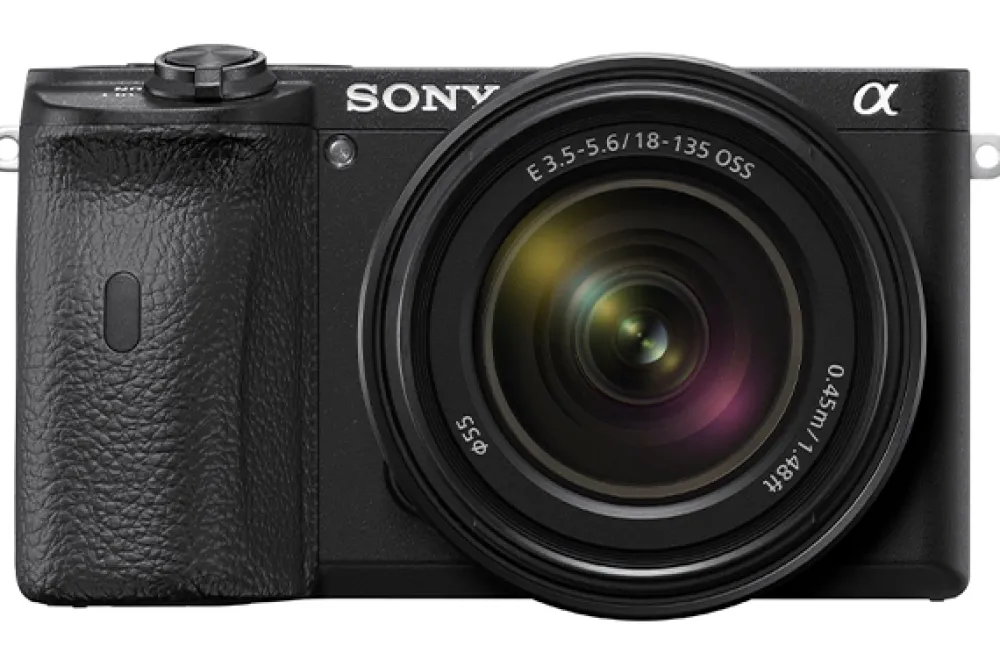

Sony Interchangeable Lens Cameras | Mirrorless Cameras Only | Alpha a6600 with 18-135mm

AT A GLANCE

• 24.2MP APS-C Exmor CMOS Sensor
• BIONZ X Image Processor
• UHD 4K30p Video with HLG & S-Log3 Gammas
• XGA Tru-Finder 2.36m-Dot OLED EVF
• 3.0″ 921.6k-Dot 180° Tilting Touchscreen
• 5-Axis SteadyShot INSIDE Stabilization
• Up to 11-fps Shooting, ISO 100-32000
• 4D FOCUS with 425 Phase-Detect Points
• Real Time Eye AF for Stills and Video
• Headphone & Mic Ports, Wi-Fi & Bluetooth
• NP-FZ100 Rechargeable Lithium-Ion Battery
• E 18-135mm f/3.5-5.6 OSS Lens
• Filter Thread 55mm

DESCRIPTION

With an emphasis on speed and versatility, the Sony Alpha a6600 is a sleek-yet-fully-featured APS-C-format mirrorless camera well-suited for both stills and video. Sporting a revised 24.2MP CMOS sensor, the a6600 is capable of producing high-resolution photos and up to UHD 4K video with more efficient processing and faster focusing. The 4D FOCUS system, which covers 84% of the image frame, utilizes 425 phase-detection points along with 425 contrast-detection areas for especially quick and intuitive performance along with Real-time Eye AF for both photo and video. Complementing both stills and video, 5-axis SteadyShot INSIDE image stabilization minimizes the appearance of camera shake with all mounted lenses to support working with slower shutter speeds.

Beyond imaging capabilities, the a6600 also sports a robust magnesium alloy body that is dust- and moisture-resistant to permit working in harsh environments. The compact profile incorporates a high-resolution XGA Tru-Finder 2.36m-dot OLED electronic viewfinder for bright, clear, eye-level viewing, and this EVF features a 120-fps viewing mode for smooth tracking of fast-moving subjects. A rear 3.0″ 921.6k-dot touchscreen LCD monitor is also available and has a tilting design to benefit shooting from high and low working angles, and the touchscreen design allows for intuitive touch-to-focus control. For video, both headphone and microphone ports have been incorporated, too, for improved audio control. Additionally, for wireless remote control over the camera, or for just sharing imagery online, built-in Wi-Fi with NFC permits linking with a mobile device for intuitive wireless control.

24.2MP Exmor CMOS Sensor
A revised APS-C-format 24.2MP Exmor CMOS sensor realizes smooth, nuanced image quality with minimal noise and high sensitivity from ISO 100-32000, which can further be expanded to ISO 102400 for working in low-light conditions. The sensor features a unique design that utilizes thin copper wiring, enhanced circuit processing, and an enhanced front-end LSI to boost light-gathering abilities, reduce noise, and increase readout speeds to benefit video recording. The sensor and BIONZ X processor combination also avails a top continuous-shooting rate of 11 fps with AF and AE and permits 16-bit recording with 14-bit raw file output for a wider tonal and color scale.

UHD 4K Video Recording in XAVC S Format
Internal recording of UHD 4K movies is possible in multiple frame rates up to 30 fps and, based on the Super35mm recording area and effective 6K resolution, oversampling renders greater detail and full pixel readout is possible, that is void of pixel binning, for higher quality imagery with reduced moiré and aliasing. Full-frame 4K recording has also been dramatically improved for finer quality when working at mid to high sensitivities to permit full use of the entire sensor width. Full HD 1080p recording is also supported in frame rates up to 120 fps, and both resolutions utilize the 100 Mbps XAVC S format contained within an MP4 wrapper with 4:2:0 sampling. The high-speed, 120 fps recording also enables 4x and 5x slow-motion movie recording with the frame rate set to either 30p or 24p. In addition to high-resolution internal recording, uncompressed HDMI output also enables the use of an optional external recorder for clean 4K recording with 4:2:2 sampling.

4K video recording also avails the ability to produce 8MP stills during playback by taking a frame grab from a movie and storing it as a separate file.

Additional Video Features
Support for HDR Content:
Affording extensive customizable color and gamma controls, the a6600 allows users to adjust the gamma, black level, knee, color level, and more. Also, users can use the same S-Log2 Gamma Curve that is found on high-end Sony Cinema cameras that squeezes up to 1300% more dynamic range into the video signal then traditional REC709, for increased post-production flexibility. HLG (Hybrid Log-Gamma) support is also available, along with the BT.2020 color space, for recording within a wide color gamut and, in addition to S-Log2, S-Log3 is also available for producing an effective 14-stop dynamic range with increased grading control in the shadow to mid-tone regions of the image.

Slow & Quick Motion:
Take more control over your video capture capabilities with a variety of new frame rates available in an S&Q mode. This will allow shooters to capture Full HD video at one of either steps between 1-120 fps. These settings will allow you to slow down action as well as speed up a slow-moving scene. This setting is also NTSC/PAL switchable.

Enhanced Zebra Function:
An enhanced Zebra function is ideally suited to aid in monitoring exposure values in high-contrast scenes. Video signal level targets can be set from 0 to 109, and specific ranges can be set to make exposure level adjustments easier.

Time Code and User Bit Settings:
A time code can be used to record hours, minutes, seconds, frames on image data for more precise editing while the User Bit function can record date, time, and scene number to aid in editing together footage from multiple cameras.

4D FOCUS
Covering nearly the entire sensor area, a powerful 4D FOCUS system incorporates 425 on-chip phase-detection points along with 425 contrast-detection areas for precise focusing in as little as 0.02 seconds. The density of focusing points from this hybrid AF system also enables High-density Tracking AF Technology, which is adept at tracking moving subjects in a variety of lighting conditions. Real-time Eye AF can be used to base focus on recognized subjects’ eyes for portraits (either humans or animals) and is available for both AF-S and AF-C modes, for stills or video. The use of phase-detection points also enables the use of A-mount lenses via the optional LA-EA3 or LA-EA1 lens mount adapters with full AF compatibility.

The apt 4D FOCUS system also lends itself to a variety of focusing functions for refined accuracy, including Lock-on AF, which maintains focus on moving subjects throughout the use of a configurable frame that is set over the desired moving subject, and Expand Flexible Spot, which employs neighboring focus points to retain focus on moving subjects even if the originally selected point loses focus. Autofocus can also be used in conjunction with the Focus Magnifier function for critical focus when homing in on minute subject details.

In addition to autofocus, the a6600 also features a Peaking MF function to benefit manual focus control by highlighted sharp edges of contrast for a more objective means of acquiring sharp focus.

5-Axis SteadyShot INSIDE Image Stabilization
Packed into the svelte body is a 5-stop effective 5-axis SteadyShot INSIDE image stabilization system that compensates for five different types of camera shake encountered during handheld shooting of stills and video. This allows users to confidently use any lens, even adapted lenses, for critical imaging without encountering blur from camera shake.

For long focal lengths, the system will correct for pitch and yaw adjustments. Macro and high-magnification imagery, on the other hand, will benefit from the inclusion of horizontal and vertical shift compensation. All shooting styles will get usage out of the roll compensation. All 5 axes of stabilization will function at all times, even when used with third-party lenses and adapters or lenses with built-in optical stabilization.

Body Design and Built-In Wi-Fi

• A robust magnesium alloy body offers a durable profile, and also incorporates dust and moisture seals to protect against harsh environments.
• The XGA Tru-Finder 2.36m-dot OLED electronic viewfinder offers a bright, high-resolution means for eye-level monitoring, and also sports a dedicated 120 fps mode for smoother viewing when tracking moving subjects.

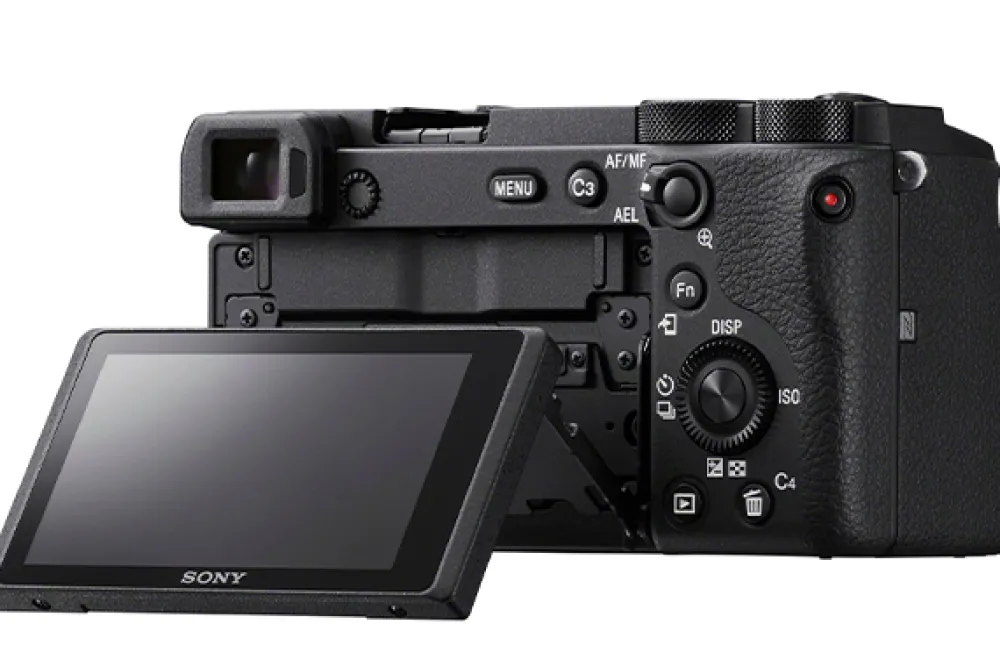

• A 3.0″ 921.6k-dot LCD touchscreen can be tilted 180° upward or 74° downward to suit working from high and low angles. The screen also incorporates White Magic technology with an RGBW pixel structure for increased brightness to support use in daylight conditions.
• The touchscreen design avails access to Touch Focus control, for immediate focus point selection, as well as a Touchpad function which lets you smoothly and intuitively select a focus point on the screen while you’re looking into the viewfinder.
• Integrated 3.5mm headphone and microphone ports afford greater control over audio during video recording.
• The included NP-FZ100 rechargeable lithium-ion is rated for approximately 810 shots per charge when working with the LCD screen.
• In addition to the battery, the a6600 can also be powered via a USB connection to a computer or mobile battery. This connection can also be used to charge the battery.
• A rigid metal lens mount better supports working with larger, heavier lens designs.
• An ergonomic grip structure is ideal for long shooting sessions and facilitates easy access to the main control buttons and dials.
• Built-in Wi-Fi enables the a6600 to instantly share imagery to mobile devices for direct sharing online to social networking, via email, and to cloud storage sites. NFC (Near Field Communication) is also supported, which allows for one-touch connection between the camera and compatible mobile devices; no complex set-up is required. Once connected, the linked mobile device can also display a live view image on its screen and remotely control the camera’s shutter.
• Bluetooth connectivity allows for location data acquisition.

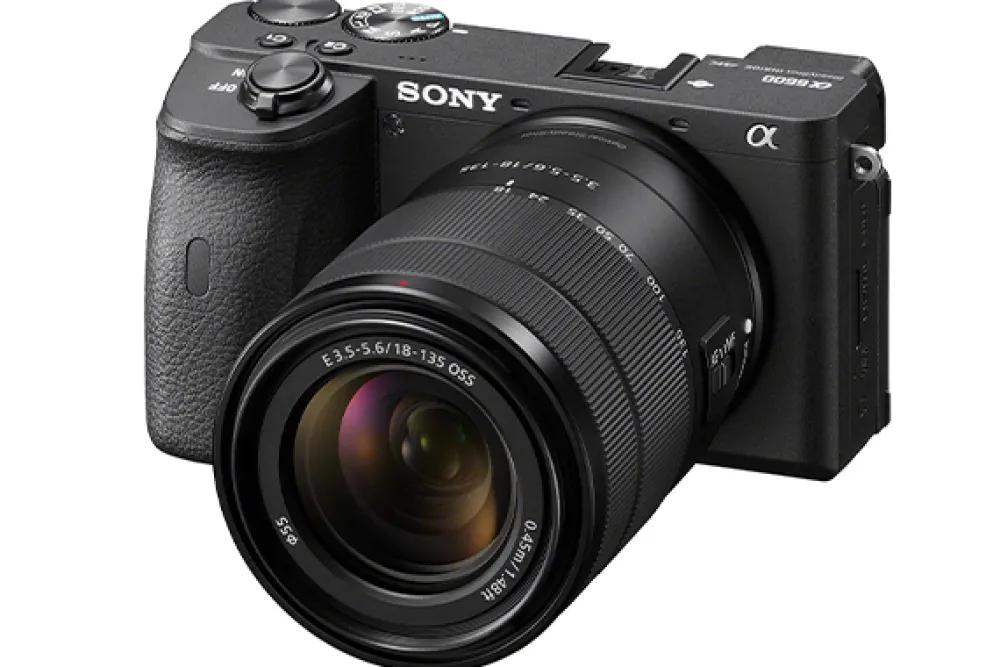

E 18-135mm f/3.5-5.6 OSS Lens
Included with the camera is the E 18-135mm f/3.5-5.6 OSS lens, which offers a wide-angle to telephoto 27-202.5mm equivalent focal length range. Benefitting the reach of the lens is an Optical SteadyShot image stabilization system, which minimizes the appearance of camera shake for sharper handheld shooting. Also helping to produce sharper imagery is a linear autofocus motor, which delivers quick and accurate focusing performance that is also quiet to suit video recording applications. Balancing with the handling attributes, this lens also sports an intelligent optical design that uses both extra-low dispersion glass and aspherical elements to control spherical and chromatic aberrations for high sharpness and clarity throughout the zoom range.

SPECIFICATIONS

Lens Mount Sony E
Camera Format APS-C (1.5x Crop Factor)
Pixels Actual: 25 Megapixel Effective: 24.2 Megapixel
Maximum Resolution 6000 x 4000
Aspect Ratio 1:1, 3:2, 16:9
Sensor Type CMOS
Sensor Size 23.5 x 15.6 mm
Image File Format JPEG, RAW
Bit Depth 14-Bit
Image Stabilization Sensor-Shift, 5-Axis
ISO Sensitivity Auto, 100 to 32000 (Extended: 100 to 102400)
Shutter Speed Mechanical Shutter 1/4000 to 30 Second
Bulb Mode 1/4000 to 1/4 Second in Movie Mode
Metering Method Center-Weighted Average, Multi-Zone, Spot
Exposure Modes Aperture Priority, Auto, Manual, Program, Shutter Priority
Exposure Compensation -5 to +5 EV (1/3, 1/2 EV Steps)
Metering Range -2 to 20 EV
White Balance Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
Continuous Shooting
Up to 11 fps at 24.2 MP for up to 46 Exposures (Raw)
Up to 11 fps at 24.2 MP for up to 116 Exposures (JPEG)
Up to 8 fps at 24.2 MP
Up to 6 fps at 24.2 MP
Up to 3 fps at 24.2 MP
Interval Recording Yes
Self-Timer 2/5/10-Second Delay
Recording Modes XAVC S
UHD 4K (3840 x 2160) at 24.00p/25p/29.97p [60 to 100 Mb/s]Full HD (1920 x 1080) at 100p/119.88p [60 to 100 Mb/s]Full HD (1920 x 1080) at 24.00p/25p/29.97p/50p/59.94p [50 Mb/s]AVCHD Full HD (1920 x 1080) at 50i/59.94i [17 to 24 Mb/s]External Recording Modes 4:2:2 8-Bit
UHD 4K (3840 x 2160) at 24.00p/25p/29.97p
Full HD (1920 x 1080) at 24.00p/50i/50p/59.94i/59.94p
Recording Limit Up to 29 Minutes, 59 Seconds
Video Encoding NTSC/PAL
Audio Recording Built-In Microphone (Stereo)
External Microphone Input (Stereo)
Audio File Format AC3, Dolby Digital 2ch, Linear PCM (Stereo)
Focus Type Auto and Manual Focus
Focus Mode Automatic (A), Continuous-Servo AF (C), Direct Manual Focus (DMF), Manual Focus (M), Single-Servo AF (S)
Autofocus Points Phase Detection: 425
Contrast Detection: 425
Autofocus Sensitivity -2 to +20 EV
Viewfinder Type Electronic (OLED)
Viewfinder Size 0.39″
Viewfinder Resolution 2,359,296 Dot
Viewfinder Eye Point 23 mm
Viewfinder Coverage 100%
Viewfinder Magnification Approx. 0.7x
Diopter Adjustment -4 to +3
Monitor Size 3″
Monitor Resolution 921,600 Dot
Monitor Type 180° Tilting Touchscreen LCD
Built-In Flash None
Flash Modes Auto, Fill Flash, Hi-Speed Sync, Off, Rear Sync, Red-Eye Reduction, Slow Sync, Wireless
Maximum Sync Speed 1/160 Second
Flash Compensation -3 to +3 EV (1/3, 1/2 EV Steps)
Dedicated Flash System TTL
External Flash Connection Hot Shoe, Wireless
Memory Card Slot 1 x SD/SDHC/SDXC/Memory Stick PRO HG-Duo/Memory Stick Pro Duo
Connectivity (New) 3.5mm Headphone, 3.5mm Microphone, HDMI D (Micro), Micro-B (USB 2.0)
Wireless Wi-Fi, Bluetooth
GPS None
Operating Temperature 32 to 104°F / 0 to 40°C
Battery 1 x NP-FZ100 Rechargeable Lithium-Ion, 7.2 VDC, 2280 mAh (Approx. 810 Shots)
Dimensions (W x H x D) 4.72 x 2.63 x 2.73″ / 120 x 66.9 x 69.3 mm
Weight 1.11 lb / 503 g (Body with Battery and Memory)

LENS SPECIFICATIONS
E 18-135mm f/3.5-5.6 OSS Lens

Focal Length 18 – 135mm
Comparable 35mm Focal Length 27 – 202.5 mm
Aperture
Maximum: f/3.5 – 5.6
Minimum: f/22 – 36
Angle of View 76° – 12°
Minimum Focus Distance 1.48′ (45 cm)
Magnification 0.29x
Maximum Reproduction Ratio 1:3.4
Optical Design 16 Elements in 12 Groups
Diaphragm Blades 7, Rounded
Autofocus Yes
Image Stabilization Yes
Filter Thread Front: 55 mm
Dimensions (DxL) Approx. 2.65 x 3.46″ (67.2 x 88 mm)
Weight 11.50 oz (326 g)

Sony Alpha a6600 Mirrorless Digital Camera
• E 18-135mm f/3.5-5.6 OSS Lens
• Sony NP-FZ100 Rechargeable Lithium-Ion Battery (2280mAh)
• Sony AC Adapter
• Micro-USB Cable
• Sony ALC-B1EM Body Cap for E-Mount Cameras
• Shoulder Strap
• Accessory Shoe Cap
• Eyepiece Cup
