YoloLiv Video Accessories | YoloBox Pro Portable Multi-Camera Encoder

Key Features

• Touch control without a computer
• 8″ LCD display with 400 cd/m² brightness
• Built-in simultaneoulsy streaming to up to 3 destinations
• HDCP compliant
• Stream via Ethernet, Wi-Fi
• Live switch up to 8 sources

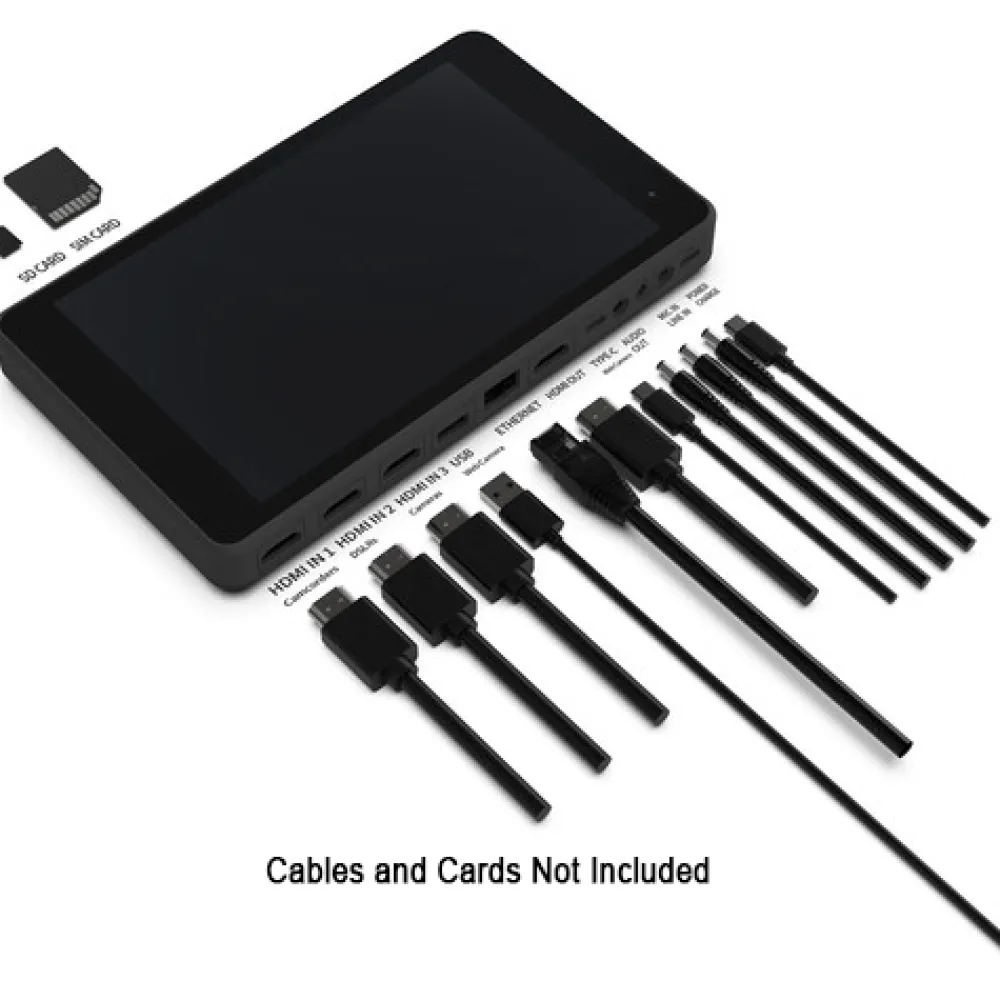

• 3 x HDMI inputs, 1 x USB video input, 1 x SD card slot, 1 x HDMI output
• One USB Type-C charging input
• Mic and Line audio input, 1 x audio output
• Ability to input PDF
• Add logos/comments to the stream
• Import pictures/videos from SD card
• Records internally to SD card up to 128GB
• Direct integration with YouTube/Facebook/RTMP(s)
• Supports up to 1080p60 video

IP Video H.264:
 960 x 540 to 1920 x 1080 Encoding

IP Audio AAC-LC: Encoding

Transport Protocols RTMP

Simultaneous Streams 3 Streams

Compatible Services Facebook Live, Twitch, YouTube Live

Wi-Fi 2.4/5 GHz

Video Connectors  3 x HDMI Input
1 x HDMI Output

Audio Connectors 1 x 1/8″ / 3.5 mm TRRS Headphone/Microphone Stereo Analog Input
1 x 1/8″ / 3.5 mm TRRS Headphone/Microphone Mono Analog Input
1 x 1/8″ / 3.5 mm TRRS Headphone/Microphone Stereo Analog Output

Other I/O 1 x RJ45 10/100 Ethernet Input/Output
  1 x USB Type-A USB 3.1 Gen 1 Input
  1 x USB Type-C USB 3.1 Gen 1 Input/Output

Embedded Audio HDMI/USB Type-C/Wireless: 2-Channel

Recording Media 1 x SD (Unspecified Type)

Recording Modes 1920 x 1080p up to 60 fps

Built-In Battery 10,000 mAh

Power Connector 1 x USB Type-C (5 to 12 VDC at 1.5 A) Input

Display LCD

Dimensions 8.6 x 5.1 x 1.1″ / 218 x 129 x 27 mm

Weight 26.5 oz / 750 g

• YoloLiv YoloBox Pro Portable Multi-Camera Encoder/Streamer/Switcher/Monitor/Recorder
• 2 x USB Type-C Cable
• Shoe Mount
• SIM Card Eject Pin
