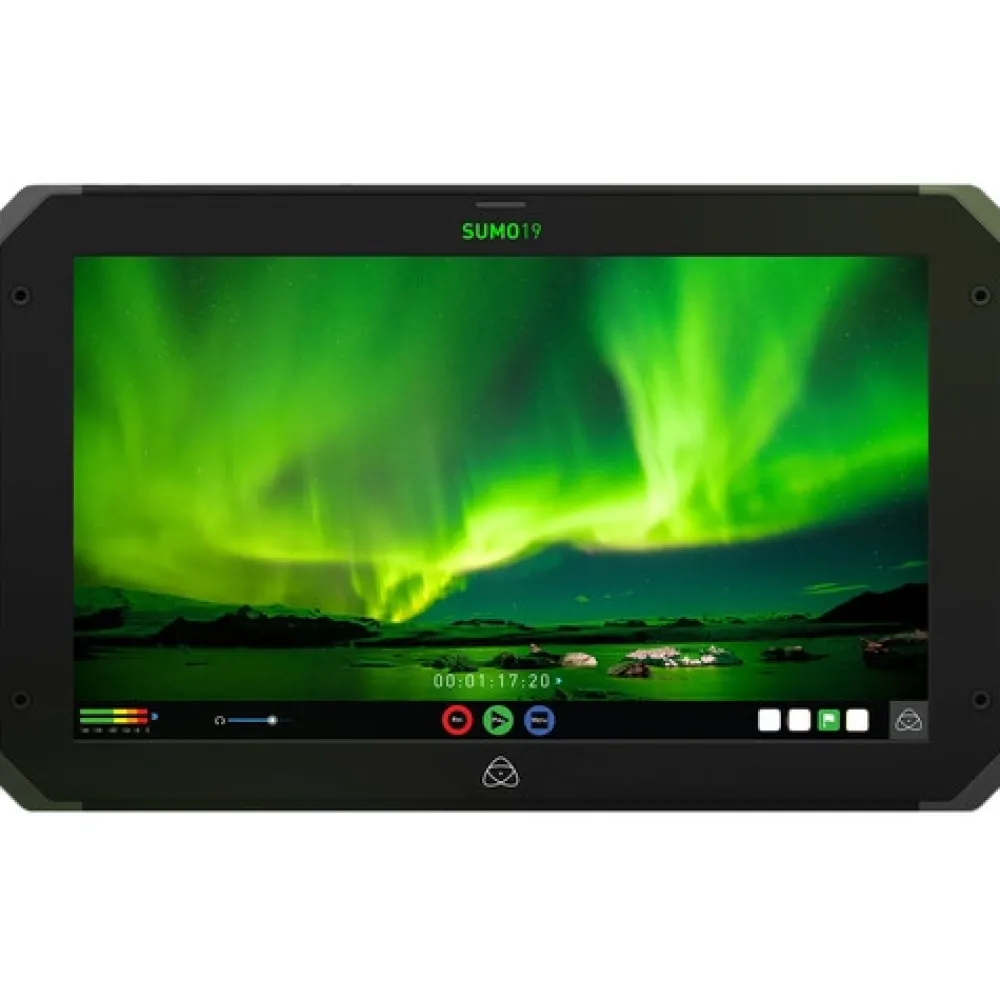

Atomos Video Accessories | Sumo 19 SE HDR Monitor Recorder and Switcher

Four 12G-SDI inputs and one HDMI 2.0 input can receive video signals up to 4K60 and support live quad-channel switching. Five-channel recording captures the input feeds as well as the live switching to create one output video for efficient viewing. Genlock and LTC timecode are also supported by the HDMI 2.0 and quad-SDI connections.

The Sumo 19″ SE can record in ProRes RAW and 10-bit 422 ProRes/DNxHR encoding formats. RAW, Log, PQ, and HLG outputs from various cameras or gaming consoles can be processed by the device and mapped to display 10+ stops of dynamic range HDR in real time. This makes the Sumo 19″ SE ideal for monitoring in the field by the director or client. Two XLR inputs with +48V phantom power support balanced audio recording with external devices. Included desktop feet, mounting supplies, and various power supply options allow you to easily integrate the Sumo 19″ SE into your studio setup.



SE Upgrades and Features

• Upgraded 19″ Quantum Dot OLED display with 2000 cd/m² brightness
• Live, quad-channel HD switching and recording
• Supports recording in ProRes RAW and 10-bit 422 ProRes/DNxHR
• HDMI 2.0 and quad-SDI support genlock and LTC timecode
• Works in HLG and PQ formats of HDR

Live Quad-Channel HD Switching and Recording

• Record four streams simultaneously as separate ISOs while cueing and switching in real time
• Record fifth channel of switched feel and display resulting in mixed output live on set (via HDMI or SDI)
• Switching is asynchronous and can be output with Atomos Connect 4K

HDR Capabilities

• 10-bit processing takes RAW/Log/PQ/HLG output from camera or gaming consoles
• Maps to display 10+ stops of dynamic range in real time

Two XLR Inputs with Phantom Power

• Full-size XLR connections with +48 phantom power
• Connect two external microphones for balanced analog audio recording and monitoring
• Dedicated meters, gain controls, and adjustments for frame delay on each channel
• Mic or line level audio can be synced with embedded HDMI and SDI audio

Powering the SE

• Dual 4-pin XLR inputs for continuous dual battery power
• Includes BattWing mounting bracket for integration of V-mount or Gold mount battery 95Wh or larger
• Includes AC power supply, 12-16.8V DC input

Display

Panel Type  Quantum Dot OLED

Display Size  19.00″ / 48.3 cm

Resolution  1920 x 1080

Aspect Ratio  16:9

Touchscreen  Yes

Maximum Brightness  2000 cd/m2

Bit Depth / Color Support  10-Bit (1.07 Billion Colors)

HDR Compatibility  Hybrid Log Gamma

Pixels Per Inch (ppi)  120 ppi

Real-Time LUT Monitoring  SDR, HDR

Image Controls  Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra

I/O

Video 1 x HDMI Type A (HDMI 2.0) Input
  1 x HDMI Type A (HDMI 2.0) Output
  4 x BNC (12G-SDI) Input
  1 x BNC (12G-SDI) Output

Embedded Audio  HDMI: 8-Channel
SDI: 12-Channel

Audio 2 x XLR Input
2 x XLR Output
1 x 1/8″ / 3.5 mm Headphone Output

Built-In Speaker  2 x 5 W

Power I/O 2 x XLR 4-Pin (14.4 VDC) Input
  1 x XLR 4-Pin (16.8 VDC) Input

Other I/O 1 x Genlock (BNC) Input
 1 x LANC (2.5 mm) Input

Media/Memory Card Slot  None

File System Support exFAT

Format Support

Video Format HDMI/SDI (10-Bit 4:2:2)
UHD 4K: 60
DCI 4K: 60

Gamma Curve DCI-P3, DCI-P3+, Panasonic V-Gamut, Rec709

Video Signal Conversion HDMI to SDI

 SDI to HDMI

Timecode Support  Yes

Recording

Pulldown Conversion  2:2, 3:2

Camera Trigger SDI, HDMI

Pre-Roll Record Full HD: 8 Seconds
4K: 2 Seconds

Encoding Formats x
ProRes Raw
ProRes 422 HQ 10-Bit
DNxHR 422 HQ 10-Bit

Closed Caption Support  None

Reference Input  None

Phantom Power  +48 V

Power

DC Input Power 12 to 16.8 VDC

Built-In Battery None

Battery Type 2 x V-Mount, Gold Mount

Power Consumption 75 W

Mounting

Mounting-Hole Pattern  100 x 100 mm

Mounting 10 x 1/4″-20 Female
 5 x 3/8″-16 Female

Environmental

Operating Temperature 104°F / 40°C

General

Material of Construction Aluminum, Polycarbonate

Dimensions 19.8 x 13 x 7.1″ / 504 x 330 x 180 mm, Including Feet
19.8 x 12.2 x 2.5″ / 504 x 310 x 63 mm, Excluding Feet

Weight 12.02 lb / 5.45 kg



Atomos Sumo 19″ SE HDR Monitor, Recorder, and Switcher

• Master Caddy II
• BattWing Mounting Bracket
• 4 x Screw
• 2 x Desktop Foot
• 4 x 1/4″-20 Mounting Screw
• AC Power Supply
