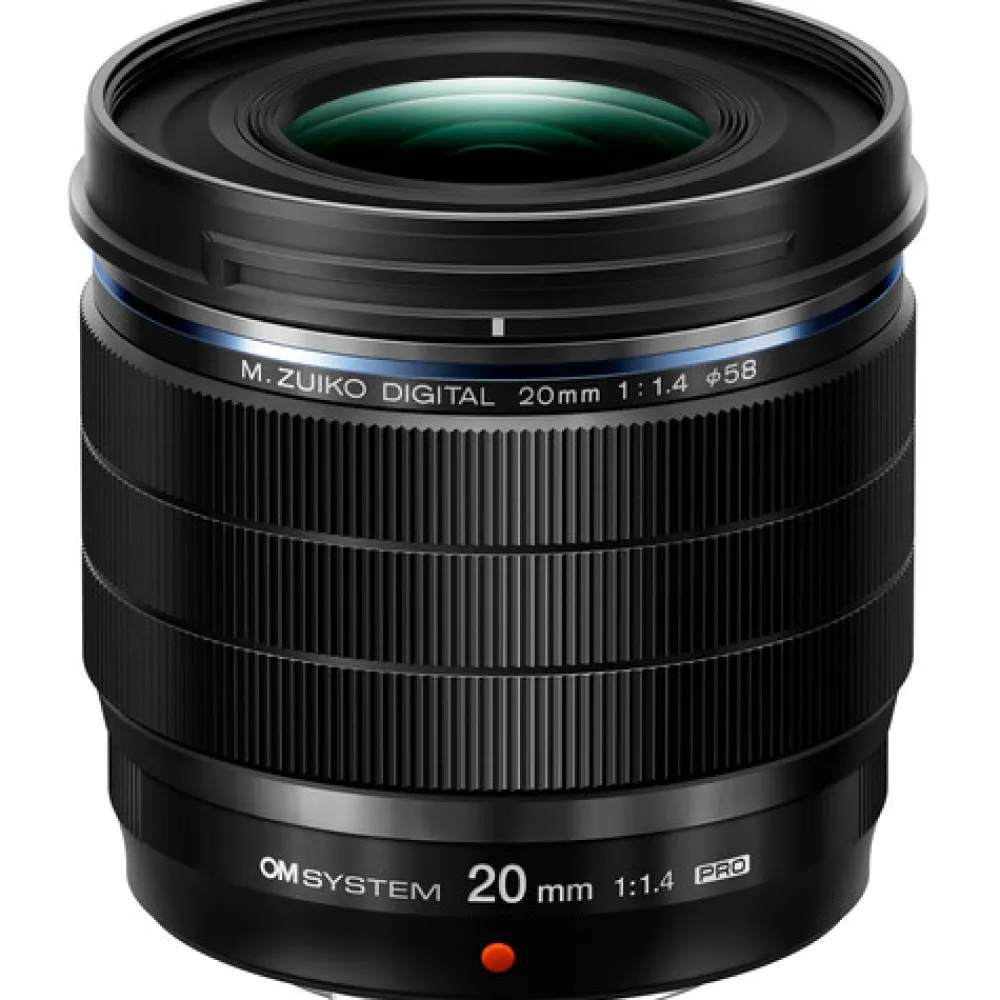

OM System Wide Angle Prime | 20mm f/1.4 PRO Lens M.Zuiko Digital ED

AT A GLANCE

• Micro Four Thirds System
• 40mm (35mm Equivalent)
• Aperture Range: f/1.4 to f/16
• 11 Elements in 10 Groups
• 1 Super ED, 3 ED, 2 Super HR Elements
• 2 Aspherical Elements
• ZERO Zuiko Extra-Low Reflection Coating
• Movie & Still Compatible AF System
• Weather-Sealed Construction
• Rounded 9-Blade Diaphragm

This pocket-sized lens is easy to carry and balances high resolution with the ability to capture soft, feathered bokeh. This lens makes long days of shooting landscapes, nature, or travel photos seem effortless. Reliable IPX1-rated weather sealing makes it possible to shoot in any environmental conditions without worry. Two aspherical elements are used in the optical design to help reduce spherical aberrations in order to achieve a high degree of sharpness, and also help reduce the overall size and weight of the lens. The Movie & Still Compatible (MSC) autofocus system provides precise, fast, and quiet focus performance to suit both video and photo applications.

This wide-angle prime is designed for Micro Four Thirds mirrorless cameras and provides a 40mm equivalent focal length for 35mm format. It has a minimum focus distance of 9.8″ for dynamic close-up imaging.

The fast f/1.4 maximum aperture can achieve shallow depth of field and selective focusing effects and when working in difficult lighting conditions. The rounded nine-blade diaphragm contributes to a pleasingly soft, feathered bokeh when shooting everything from nature to portraits.

Lens construction incorporates a sophisticated system of hermetic seals that lock out moisture, cold, and dust. The fully sealed splash, freeze, and dustproof design lends itself to use in a variety of locations and environments without the need for additional protective gear. It protects itself from harsh element and can continue to be used when the temperature dips down to down to -14°F / -10°C. When the lens is used with an Olympus splashproof body, IEC Standard publication 60529 IPX1 applies.

Two aspherical elements, three ED elements, one super ED element, and two Super HR elements are used to reduce spherical aberrations and distortions and optimize light transmission in order to provide increased sharpness and more accurate color rendering.

ZERO (Zuiko Extra-Low Reflection Optical) coating provides reduced lens flare and optimal color transmission.

Fluorine lens coating repels dust, dirt, rain, and snow from the front element for easy cleaning.

Movie & Still Compatible High Speed Imager (MSC) autofocus system benefits both photo and video applications due to its smooth, quiet, and fast performance.

SPECIFICATIONS

Focal Length 20mm (35mm Equivalent Focal Length: 40mm)

Maximum Aperture  f/1.4

Minimum Aperture  f/16

Lens Mount  Micro Four Thirds

Format Compatibility  Micro Four Thirds

Angle of View  57°

Minimum Focus Distance  9.8″ / 25 cm

Close-Up Magnification  0.11x

Optical Design  11 Elements in 10 Groups

Diaphragm Blades  9, Rounded

Focus Type  Autofocus

Image Stabilization  No

Filter Size  58 mm (Front)

Dimensions (ø x L)  2.5 x 2.4″ / 63.4 x 61.7 mm

Weight  8.7 oz / 247 g

OM SYSTEM M.Zuiko Digital ED 20mm f/1.4 PRO Lens
• LC-58F Front Lens Cap
• LR-2 Rear Lens Cap
• LH-61G Lens Hood
• CS-53 Lens Wrap Cloth
