7-inch HDR pro / cinema monitor-recorder-switcher

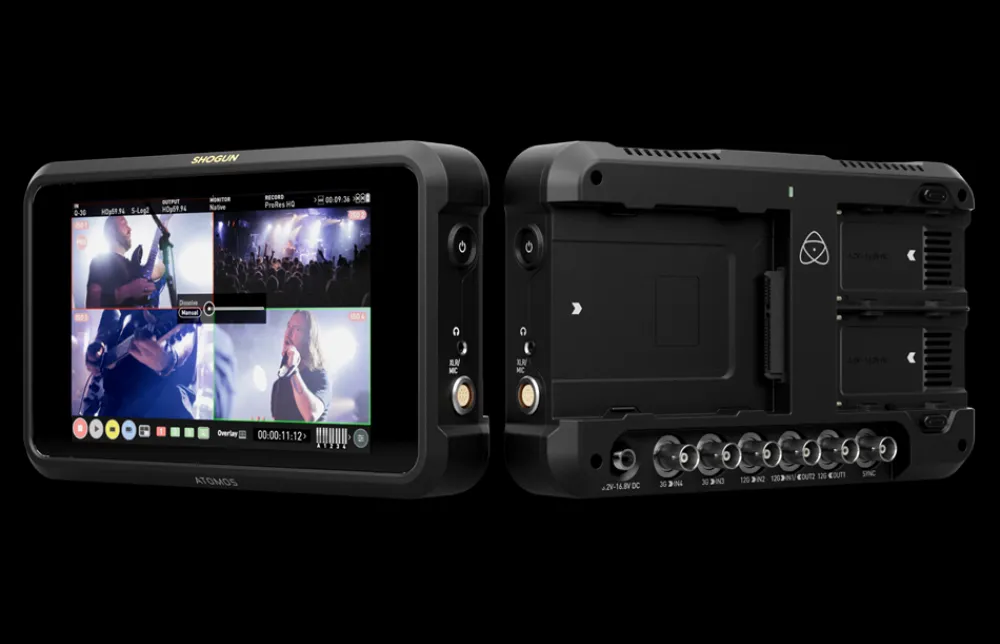

Designed for professionals that push boundaries with the quality of their videos, this 7-inch monitor-recorder-switcher enhances the image captured by any HDMI or SDI camera to new levels. With 1,000,000:1 contrast ratio and peak brightness of 3000nits, Shogun Classic is the ultimate all-rounder production tool.

Shogun Classic gives you the high production values of 4K HDR, and complete control of every aspect of your production, on-set and in post. Meticulously monitor every pixel of SDR or HDR as it’s captured and view it in glorious 10-bit HDR.

Features at a glance

3000nit HDR screen  Zone backlight provides exceptional detail, color, and contrast.

Real-time 4K recording  In ProRes, Cinema DNG, and Avid DNx formats

High performance HDR  Preview your images in glorious 10-bit HDR

4 x SDI input  For seamless transitions between live video streams

4 x ISO recording  For individual input control and post-production flexibility

XLR audio  2-channel XLR Input and output

Perfect exposure and color?

Fine tune every detail, while you shoot

A high-quality viewing experience gives you complete confidence to make educated on-set decisions.

With Shogun Classic’s dynamic zoned backlight, blacks are deeper, whites are brighter, and the details of highlights are crystal clear. Shogun Classic gives you the control to maximise HDR exposure, while feeling comfortable with SDR finishing in post.

Simple monitoring tools put every detail of the image within your control. From custom 3D LUTs, false color profiles, adjustable focus peaking and movable 1:1 and 2:1 pixel magnification. In addition, RGB parade and vectorscopes ensure perfect colors on your calibrated monitor.

Multi-camera touchscreen switching

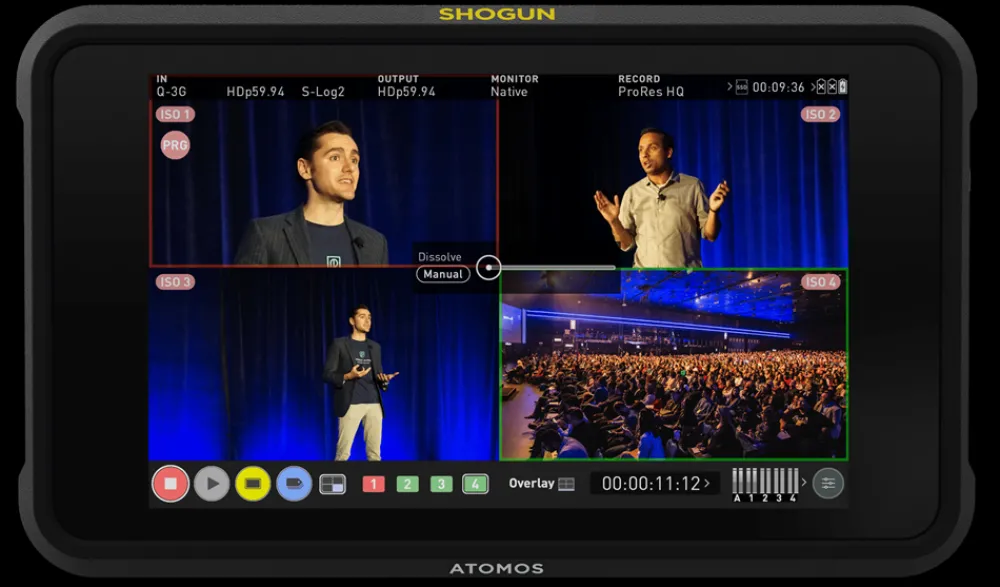

Take full advantage of 4 x SDI inputs and let Shogun Classic step into the role of a portable, quadview live switcher and recorder on your multi-camera shoots. Record up to four 1080p60 streams simultaneously as separate ISOs while cueing and switching in real-time with a simple touch of the screen.

Shogun Classic can also record a fifth ‘program’ channel of your switched feed. Display the resulting mixed output (via HDMI or SDI) live on set. You can even output the switched feed for live streaming. Switching is completely asynchronous, eliminating the need for expensive locked sources and allowing the use of more affordable cameras.

At home on practically any camera

Use with your DSLR or mirrorless camera via HDMI to get up to 4Kp60 Apple ProRes and AVID DNx codecs for easy editing and archival quality. Add it to a high-end ARRI, RED or Sony Venice and you’ll get accurate HDR monitoring and all the tools you need to get your job done.

HDR monitoring for clients and creatives

With Shogun Classic you can view what you’ve captured before filming has even wrapped. Deliver content via live HDMI out, in real-time, from any HDR camera to a compatible HDR TV or monitor. Shogun Classic ensures you see an accurate representation of your video at maximum brightness and color detail. Use this accurate reference to adjust exposure and lighting accurately for modern TVs. This not only gives the crew more confidence in what they’re capturing, but also speeds up the finishing process.

Physical

Dimensions (W x H x D mm)  214mm x 127mm x 45mm / 8.43” x 5.00” x 1.77”

Weight  738g / 26oz

Mounting Points  1/4”-20 screw mount. 1x top and 1x bottom

Environmental Ambient operating temperature

Up to 40 Degrees Celsius  Construction

Body  Glass fiber reinforced polycarbonate

Cooling  Heat Sink + Actively controlled Fan

Touch Screen  Capacitive Touch

Power  Input Voltage  6.2V to 16.8V

Compatible Batteries  2x NP-F / L-Series batteries and supporting accessories

DC in Connector  1 x DC in (6.2 – 16.8V)

Display

Display Panel  IPS panel (capacitive touch)

Size  7.2″

Resolution  1920 x 1200 (1920 x 1080 Image Display)

PPI  325

Bit Depth  10-Bit (8+2 FRC)

Backlight Type  Zone Backlight (Full-Array Local Dimming)

Brightness (cd/m² / nits)  3000nit (+/- 10%)

Aspect ratio  16:10 native resolution 1920 x 1200

Color Gamut  Up to Wide color gamut (105% DCI-P3)

Calibration Support  ATOMOS Calibrator with Display Pro HL and Display Plus HL

Video Input

HDMI  HDMI 1 x HDMI (2.0)

SDI  Quad Link 4 x 3G/6G SDI*, 4 x 3G-SDI, 2 x 12G Single Link SDI

Bit Depth  8/10-Bit for Video

Video Chroma Subsampling  YCbCr 4:2:0 & 4:2:2

HDR  HDMI Auto Detection

Video Output

HDMI  1 x HDMI (2.0)

SDI Loop / Play Out  Quad Link 4 x 3G/6G SDI*, 4 x 3G-SDI, 2 x 12G Single Link SDI

HDR  Yes with auto detection

Video Signal Conversion  HDMI to SDI

Supported  SDI to HDMI

Supported  Audio In/Out

Audio Quality  24-Bit / 48kHz

Audio Codec  PCM

HDMI  2 or 8ch 24-Bit, Input dependent

SDI  12ch 48kHz 24-Bit

Analog Audio In  Via optional 2 in 2 out XLR cable

Analogue Audio Out / Headphone Jack  3.5mm Jack

Audio Input Delay  Frame Delay on Analog Input (applied to recorded files)

Timecode / Sync

HDMI Embedded  Supported

SDI Embedded  Supported

Time of Day  Supported

LTC  via full-size BNC SYNC Port

Wireless SYNC  Connect an Atomos UltraSync One to the full-sized BNC SYNC Port

Resolution and Frame Rates (Record, Monitor & Playback)

4K DCI  up to 4Kp60

4K UHD  up to UHDp60 via HDMI and SDI

2K DCI 2048 x 1080  up to 2Kp60 via SDI

FHD 1920 x 1080 Progressive  up to 1080p120 via SDI

FHD 1920 x 1080 PsF  Only via Pulldown to Progressive

FHD 1920 x 1080 Interlaced  1080i50 / 1080i60 via HDMI or SDI

1280 x 720p  up to 720p60

Recording Codecs

Apple ProRes  HQ, 422, LT

Avid DNxHD  220x, 220, 145, 36 (.MOV Wrapper)

Avid DNxHR  HQX, HQ, SQ, LB (.MOV Wrapper)

Playback

Playlist  Selected Clips, Favorites, or Combined

Loop  Supported, with user-customizable In / Out Markers

Apple ProRes  HQ, 422, LT (Linear PCM Audio only)

Avid DNx  DNxHD: 220x, 220, 145, 36 – DNxHR HQX, HQ, SQ, LB (Linear PCM Audio only)

Supported Media

Master Caddy I  Not Supported

Master Caddy II  Supported

Master Caddy III  Supported

SSDmini  Supported

File System  exFAT

Interface  SATA 3.0

On-Screen Tools

Waveform  3 Sizes – Adjustable Opacity & Brightness

RGB Parade  3 Sizes – Adjustable Opacity & Brightness

Vector Scope  2 Sizes – Adjustable Opacity & Brightness

1 x Zoom  Tap to Zoom

2 x Zoom  Tap to Zoom

Focus Peaking  3 Modes (Color, Black & White, Outline) with adjustable Outline Color & Peaking Intensity

Zebra  Adjustable Threshold (50% to 105%)

Isolate Color Channel  Blue Only

Cine Frame Guides  6 Presets

Social Frame Guides  4 Presets

Safe Areas  SMPTE Safe Title Area – 93% & 90%

Grid Markers  9 Grid

Anamorphic Desqueeze  2x, 1.8x, 1.6x, 1.5x, 1.33x, 1.25x

Display Flip  Vertical

Colorized Exposure  Atomos False Color



Box Contents

Shogun Classic unit

Master Caddy II x 1

12V-3A AC power supply

Carry Case

Quick Start Guide
