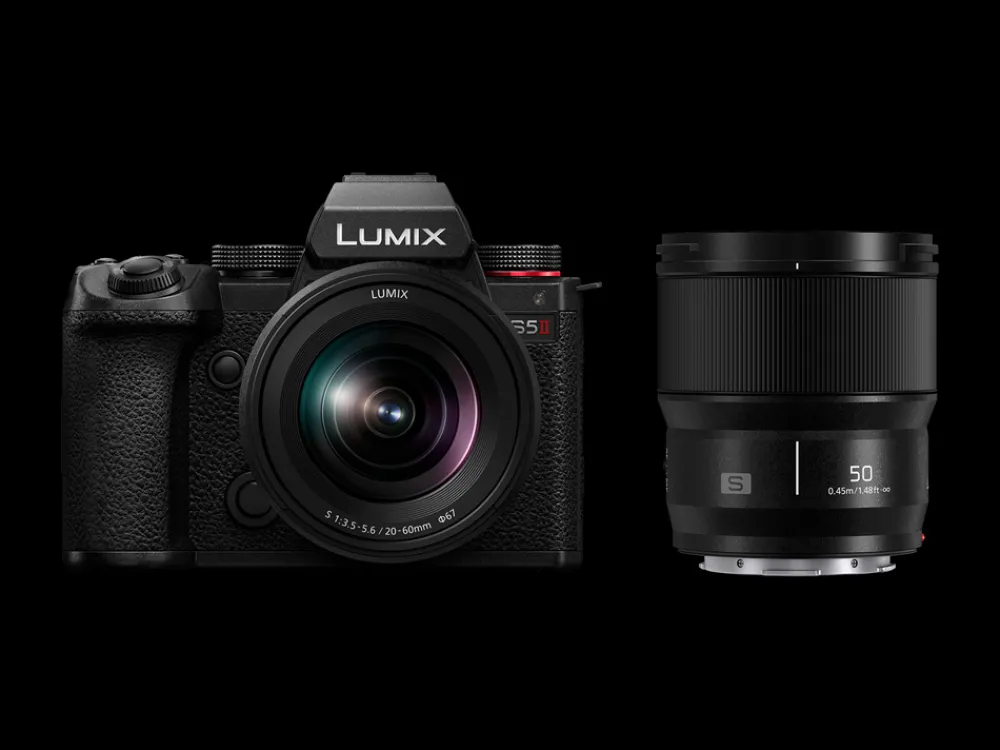

Panasonic Interchangeable Lens Cameras | Mirrorless Cameras Only | DC-S5 II Dual Lens Kit SS50 and SR2060

Description

The Panasonic LUMIX S5II is the first LUMIX mirrorless cameras to utilize Phase Detection Auto-Focus (PDAF) thanks to a newly developed 24.2-megapixel 35mm full-frame CMOS sensor and a new imaging engine. Developed under the L2 Technology alliance formed by LEICA and LUMIX, the new imaging engine provides high resolution, natural description, and approximately 2x higher-speed signal procession for high bit-rate video recording.

To further the cameras’ PDAF capabilities and make them more dependable, Panasonic evolved the auto-focus system into Phase Hybrid Auto-Focus by increasing the AF points to 779 to significantly improve subject tracking. Once the S5II is locked on a subject, the auto-focus will continue to track the subject, even in adverse lighting conditions and when multiple objects are moving within the frame. Additionally, continuous AF during zooming, AF micro adjustments, and options to decrease the size of the AF area are available.

Powerful Image Stabilization

The LUMIX S5II and S5IIX have a powerful image stabilization system for wide-ranging shooting conditions and situations. The Body I.S. (5-axis) in the LUMIX S5II and the O.I.S. (Optical Image Stabilizer, 2-axis) from the LUMIX S Series lens were combined to create the 5-axis Dual I.S. 2, maximizing the correction power to allow 6.5-stop slower shutter speed. The 5-axis Dual I.S. 2 works for both photo and video recording, including 4K. In addition, Active I.S. has been added for even more stable video recording. Active I.S. optimizes the horizontal, vertical, and rotational correction ratios by determining the status of camera shake. As a result, the performance of the image stabilizer can account for a larger amount of camera shake at approximately 200% compared to conventional image stabilization. This capability is highly beneficial in adverse situations, such as handheld filming or telephoto fixed-frame shots.

Incredible Video Performance

The new imaging engine provides the LUMIX S5II with high video performance comparable to the LUMIX S1H. They provide 4:2:0 10-bit 6K (3:2) / 5.9K (16:9), unlimited 4:2:2 10-bit C4K/4K recording capability*4. With a new heat-dispersion mechanism, there is no limit on recording time to avoid overheating. HFR (High Frame Rate) in C4K/4K (48p), FHD (120p), Slow & Quick motion in C4K/4K(1-60fps) / FHD(1-180fps) are also available.

The LUMIX S5II and S5IIX contain 14+ stop V-Log/V-Gamut capture to deliver a high dynamic range and broad colors. Plus, a REAL TIME LUT function is provided to enable color grading on the compatible video and photo in camera by applying the LUT(.VLT/.cube) saved in the SD memory card. Users can perform intended color grading on the spot without postproduction and share images online through social networking sites. This function can be used for livestreaming.

Professional-quality photo/video performance for unlimited expression

In addition to the PDAF capabilities mentioned above, the LUMIX S5II and S5IIX provide:

• Dual Native ISO sensitivity, which minimizes noise generation by choosing an optimal circuit to use according to the sensitivity before gain processing. As a result, it allows a maximum ISO 51200 (Extended: 204800) high sensitivity recording.
• Increased capable of higher speed burst shooting at 9 (AFS) / 7 (AFC) fps with a mechanical shutter and 30 fps (AFS/AFC) with an electronic shutter in JPEG/RAW compared with LUMIX S5.

A variety of video functions and recording options

Alongside the recording capability, new heat dispersion mechanism and 14+ stop V Log/V Gamut capture mentioned above, the LUMIX S5II features unique shooting options such as the 4K60p interval shooting and 4K HDR video recording. In response to requests from professional users, video assist functions such as Waveform Monitor, Vector Scope and Zebra Pattern are available. Some features offered on the LUMIX S1H and LUMX GH6, like System Frequency (24.00Hz), Synchro Scan, Fan mode and redesigned control panel, which enables quick selection of menu, are also available on the LUMIX S5II and S5IIX.

48kHz/24bit audio can be recorded using a built-in microphone and external microphone for realistic sound recording. The use of the external microphone and XLR microphone allows high-res 96kHz/24bit audio recording.

The LUMIX S5IIX is capable of RAW video output and All-Intra, ProRes recording on SSD. It also features wired/wireless IP streaming function and USB tethering.

Excellent operability and functions to minimize workflow for one man crew operation

Building upon the functionality of the LUMIX S5, a wealth of options was added to the LUMIX S5II and S5IIX to provide users with a superior shooting experience. AWB Lock maintains the white balance set in auto. Sheer Overlay can now be used in Creative Video mode making it easy to fix the frame through footage sequence. Luminance level of 2100 Like (HLG) in Photo Style for video has an extended setting range from 64-940 to 0-1023, providing sufficient amount of color grading resistance. In addition to FHD it is now possible to output a 4K image with the live crop function. To support high precision focusing, the LUMIX S5II and S5IIX provide practical options for manual focusing. While focus is shifted with variable amount according to the rotation speed of the focus ring for non-linear setting, it is shifted with a designated amount according to the rotational quantum of the focus ring for linear setting. Sensitivity (amount of focus shift per rotational quantum) can be selected from 90 to 1080 degrees to enable intended focus operation. The MF Assist, which enables the focus point to be enlarged, is now available in both photo shooting and in video recording.

The LUMIX S5II and S5IIX adopt a large, 3,680K-dot OLED (Organic Light-Emitting Diode) LVF (Live View Finder) that features a high magnification ratio of approx. 1.52x / 0.76x (35mm camera equivalent). A 3.0-inch free-angle touch-control monitor in 3:2 aspect with 1,840K-dot high resolution does not cause interference even when both the HDMI cable and USB cable are connected by adjusting the tilt/rotation angle of the monitor. There are improvements in external design, including new easy-to-operate 8-directional joystick and the drive dial with an increased setting position for 96-megapixel High Resolution Mode (JPEG/RAW).

Reliable quality and performance for professional use and connectivity

Overheating is a fatal issue to continuous video recording, especially when the resolution and the frame rates are increased. The LUMIX S5II and S5IIX adopt a new heat dispersion mechanism that combines a small fan and high-efficiency heat sink. As a result, the LUMIX S5II achieves unlimited video recording time and livestreaming in C4K 60p while keeping the camera size compact. In case the camera stops while 4K video recording, the small fan operates separately to cool down the unit for quick recovery.

To withstand heavy field use, the LUMIX S5II and S5IIX are composed of a magnesium alloy full die-cast front / rear frame and is splash-resistant and dust-resistant.



Specifications

Continuous Shooting Speed: 30fps
Shutter Speed: 30min – 1/16,000sec
ISO Sensitivity: 50 – 204,800
Frame Rate: 60p
Bitrate: 200Mbps
Audio Inputs: 3.5mm stereo minijack
Power Source: Rechargeable Li-ion Battery
Dimensions: 13.4×10.2x9cm
Weight: 740g





20-60mm Lens



Panasonic is proud to introduce a new interchangeable standard zoom lens, the LUMIX S 20-60mm F3.5-5.6 (SR2060) based on the L-Mount system for the LUMIX S Series Full-frame Digital Single Lens Mirrorless Camera. Specially focusing on professional use, the LUMIX S Series pursues uncompromising photographic expression with its high-quality cameras and lenses.

The new LUMIX S 20-60mm F3.5-5.6 is a compact, lightweight standard zoom lens that covers a range from ultra-wide 20mm to standard 60mm focal length for versatile use including landscapes and portraits. The wide viewing angle makes it easier to shoot indoors where room space is limited and stunning close-up capability of 0.15m (maximum magnification 0.43x) supports tabletop photography. The new LUMIX S 20-60mm F3.5-5.6 also ensures smooth, high quality video recording because of a mechanism that suppresses focus breathing, which was a fatal problem in all interchangeable lenses designed for still image photography.

Comprising 11 elements in 9 groups, the use of 2 aspherical lenses and 3 ED (Extra-low Dispersion) lenses effectively suppresses both axial chromatic aberration and chromatic aberration of magnification. Astigmatism is also corrected with these aspherical lenses, achieving high resolving performance. Furthermore, a UHR (Ultra-High Refractive Index) lens achieves uniform image quality from the center to the edges of the image while contributing to overall downsizing of the lens unit.

With its compact, 350g and light weight body (350g), the LUMIX S 20-60mm F3.5-5.6 prioritizes mobility. The rugged dust/splash-resistant* design withstands use under harsh conditions even at -10 degrees Celsius for outdoor use.@In addition, a fluorine coating on the front element repels water and oil and prevent them from sticking to the lens. The filter diameter is 67 mm, with a 9-blade circular aperture diaphragm.

Maximum Aperture  f/3.5 to 5.6

Minimum Aperture  f/22

Lens Mount  Leica L

Lens Format Coverage  Full-Frame

Angle of View  94° to 40°

Minimum Focus Distance  5.91″ / 15 cm

Maximum Magnification  0.43x

Optical Design  11 Elements in 9 Groups

Diaphragm Blades  9, Rounded

Focus Type  Autofocus

Image Stabilization  No

Filter Size  67 mm (Front)

Dimensions (ø x L)  3.05 x 3.43″ / 77.4 x 87.2 mm

Length at Maximum Extension  4.71″ / 119.7 mm

Weight  12.35 oz / 350 g

50mm 1.8 Lens

Designed for full-frame L-mount mirrorless cameras, the Panasonic Lumix S 50mm f/1.8 is a sleek and compact standard-length prime. Its 50mm focal length is ideally suited for portraiture, landscapes, and all-purpose shooting and provides a modestly bright f/1.8 maximum aperture for shallow depth of field control. An extra-low dispersion element and an ultra-high refractive index element reduce chromatic aberration and color fringing for improved clarity and color accuracy, and the lens provides excellent sharpness as well. A linear autofocus motor suppresses focus breathing and delivers smooth, precise, and near silent focusing performance. Made for tough environmental conditions, the lens also features a dust-, moisture-, and freeze-resistant design.

Prime standard-length lens designed for full-frame L-mount mirrorless cameras, however, can also be used on APS-C models where it provides a 75mm equivalent focal length.

Bright f/1.8 maximum aperture offers control over depth of field and suits working in low-light conditions.

Three aspherical lenses including an extra-low dispersion element and an ultra-high refractive index element reduce chromatic aberration and color fringing for improved clarity and color accuracy.

Linear autofocus motor suppresses focus breathing and delivers smooth, precise, and near silent focusing performance.

Benefitting professional video applications, linear focus ring control for mechanical-based follow focus systems moves the focus at a constant speed in accordance with the rotating angle of the focus ring.

High resolution sharpness and performance to support 4K video.

Smooth exposure changes by micro-step aperture control for video applications.

Rounded nine-blade diaphragm contributes to a pleasing bokeh quality when employing selective focus techniques.

Dust-, moisture-, and freeze-resistant design for increased protection from the elements.

• Focal Length 50mm
• Maximum Aperture f/1.8
• Minimum Aperture f/22
• Lens Mount  Leica L
• Format Compatibility  Full-Frame
• Angle of View  47°
• Minimum Focus Distance  1.48′ / 45.11 cm
• Maximum Magnification  0.14x
• Optical Design  9 Elements in 8 Groups
• Diaphragm Blades  9, Rounded
• Focus Type  Autofocus
• Image Stabilization  No
• Filter Size  67 mm (Front)
• Dimensions (ø x L)  2.9 x 3.2″ / 73.6 x 82 mm
• Weight  10.6 oz / 300 g





• Panasonic LUMIX S5 II mirrorless camera body
• Panasonic LUMIX S 20-60mm f3.5-5.6 mirrorless lens
• Panasonic LUMIX S 50mm 1.8 mirrorless lens
• Body Cap
• Hot Shoe Cover
• Cover for the Battery Grip Connector
• Shoulder Strap
• Battery Pack
• AC Adaptor
• USB Connection Cable (A-C)
• Lens Cap
• Lens Hood
• Lens Rear Cap
