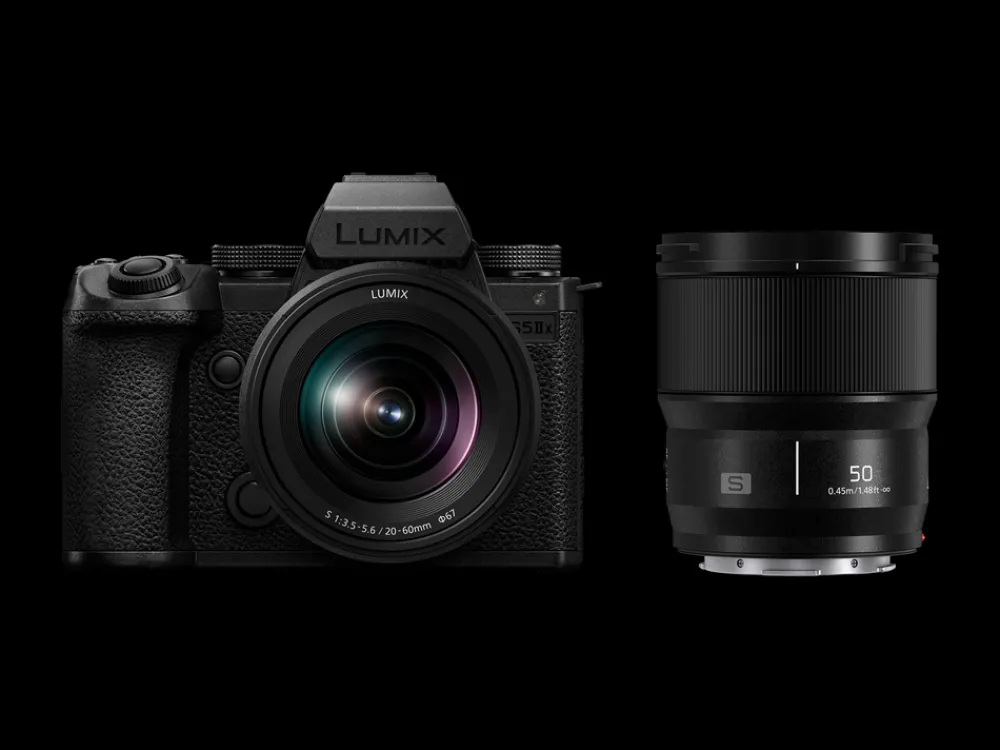

Panasonic Interchangeable Lens Cameras | Mirrorless Cameras Only | DC-S5IIx  Dual Lens Kit  SS50 and SR2060

Lens mount  L-Mount

IMAGE SENSORType  35mm full-frame (35.6mm x 23.8mm) CMOS sensor

Camera effective pixels / Total pixels  24.20 megapixels / 25.28 megapixels

AR (Anti Reflection) coating  Yes

Aspect ratio / Color filter  3:2 / Primary color filter

Dust reduction system  Image sensor shift type

LATITUDE  14+ stops (V-Log)

STILL IMAGE  Recording file format  JPEG (DCF, Exif 2.31), RAW

Aspect ratio  4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1

File size (Pixels) When using full-frame lenses  3:26000×4000(L) / 4272×2848(M) / 3024×2016(S) / 12000×8000(XL)* / 8496×5664(LL)*     *High Resolution mode.

4:35328×4000(L) / 3792×2848(M) / 2688×2016(S) / 10656×8000(XL)* / 7552×5664(LL)*     *High Resolution mode.

16:96000×3368(L) / 4272×2400(M) / 3024×1704(S) / 12000×6736(XL)* / 8496×4784(LL)*     *High Resolution mode.

1:14000×4000(L) / 2848×2848(M) / 2016×2016(S) / 8000×8000(XL)* / 5664×5664(LL)*     *High Resolution mode.

65:246000×2208(L)

2:16000×3000(L)

When using APS-C/Super 35mm lenses 3:23984×2656(L) / 2880×1920(M) / 2064×1376(S)

4:33536×2656(L) / 2560×1920(M) / 1840×1376(S)

16:93984×2240(L) / 2880×1624(M) / 1920×1080(S)

1:12656×2656(L) / 1920×1920(M) / 1376×1376(S)

Image quality RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine)

Color spaces RGB, AdobeRGB

MOTION PICTURE  Recording file format  MOV: H.264/MPEG-4 AVC, H.265/HEVC
MP4: H.264/MPEG-4 AVC, H.265/HEVC

Audio format  MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
  MP4: AAC (2ch 48kHz/16-bit)
*When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).

System frequency  59.94Hz / 50.00Hz / 24.00Hz

Image area of video  Full / APS-C / PIXEL/PIXEL

[6K] 5952×3136 (17:9)29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[5.9K] 5888×3312 (16:9)29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[C4K] 4096×216029.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[4K] 3840×216029.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[FHD] 1920×1080119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

APS-C / PIXEL/PIXEL[C4K] 4096×216059.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[4K] 3840×216059.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[3.3K] 3328×2496 (4:3)47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[FHD] 1920×1080119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Image Area of Video is set to APS-C.

50.00HzFULL[6K] 5952×3968 (3:2)25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[6K] 5952×3136 (17:9)25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[5.9K] 5888×3312 (16:9)25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[C4K] 4096×216025.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[4K] 3840×216025.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[FHD] 1920×1080100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

APS-C / PIXEL/PIXEL[C4K] 4096×216050.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[4K] 3840×216050.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[3.3K] 3328×2496 (4:3)50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[FHD] 1920×1080100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
*When Image Area of Video is set to APS-C.

24.00HzFULL[6K] 5952×3968 (3:2)24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[6K] 5952×3136 (17:9)24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[5.9K] 5888×3312 (16:9)24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[C4K] 4096×216024.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[4K] 3840×216024.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[FHD] 1920×108048.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

APS-C / PIXEL/PIXEL[C4K] 4096×216048.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[4K] 3840×216048.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[3.3K] 3328×2496 (4:3)48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

[FHD] 1920×108048.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)

MP4 (*1)59.94HzFULL[4K] 3840×216029.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC)     *HLG is selectable.
23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC)     *HLG is selectable.
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

[FHD] 1920×108059.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

APS-C / PIXEL/PIXEL[4K] 3840×216059.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC)     *HLG is selectable.
29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC)     *HLG is selectable.
23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC)     *HLG is selectable.
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

[FHD] 1920×108059.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

50.00HzFULL[4K] 3840×216025.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC)     *HLG is selectable.
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

[FHD] 1920×108050.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

APS-C / PIXEL/PIXEL[4K] 3840×216050.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC)     *HLG is selectable.
25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC)     *HLG is selectable.
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

[FHD] 1920×108050.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

VIEWFINDER  Type  OLED Live View Finder

Pixels  Approx. 3.68 million dots

Field of view / Magnification Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2

Eye point / Diopter adjustment Approx. 21 mm at infinity; -1.0 m-1 / -4.0 – +2.0 (dpt)

Eye sensor Yes

Display speed 120fps / 60fps

REAR MONITOR Type  TFT LCD monitor with static touch control

Monitor size Free-angle, 3.0-inch (7.6cm), 3:2 aspect

Pixels Approx. 1.84 million dots

Field of view Approx. 100%

FOCUS Type  Phase Detection AF system / Contrast AF system

DFD technology  Yes

Focus mode  AFS (Single) / AFC (Continuous) / MF

AF modeTracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
*Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set.

AF detective range  EV -6 – 18 (F1.4, ISO100 equivalent, AFS)

AF custom setting  AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction

AF assist light  Yes

AF lock  Set the Fn button in custom menu to AF lock

Focus ring control  Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum)

Others  AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resum

EXPOSURE CONTROL Light metering system1,728-zone multi-pattern sensing system

Light metering mode Multiple / Center Weighted / Spot / Highlight Weighted

Metering range EV0-18 (F2.0 lens, ISO100 equivalent)

Mode dial Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto
*The same exposure operations as P/A/S/M mode is available.

Exposure compensation 1/3 EV step ±5EV (±3EV for motion picture)

ISO sensitivity (Standard output sensitivity)[Normal]Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step)     *Extended ISO

[V-Log]Auto / 320* / 640-51200 (1/3 or 1 EV step)     *Extended ISO

[HLG]Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step)     *Extended ISO

Dual Native ISO[Normal]Native ISO: 100, 640
Auto: Auto / 50* / 100-51200 / 102400* / 204800*     *Extended ISO
Low: Auto / 50* / 100-800     *Extended ISO
High: Auto / 320* / 640-51200 / 102400* / 204800*     *Extended ISO

[V-Log]Native ISO: 640, 4000
Auto: Auto / 320* / 640-51200     *Extended ISO
Low: Auto / 320* / 640-5000     *Extended ISO
High: Auto / 2000* / 4000-51200     *Extended ISO

[HLG]Native ISO: 400, 2500
Auto: Auto / 400-51200 / 102400* / 204800*     *Extended ISO
Low: Auto / 400-3200
High: Auto / 2500-51200 / 102400* / 204800*     *Extended ISO

[Cinelike D2 / Cinelike V2]Native ISO: 200, 1250
Auto: Auto / 100* / 200-51200 / 102400* / 204800*     *Extended ISO
Low: Auto /100* / 200-1600     *Extended ISO
High: Auto / 640* / 1250-51200 / 102400* / 204800*     *Extended ISO

AE lockSet the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEMB.I.S. (5-axis / 5-stop*)     *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.]Dual I.S. 2 (6.5-stop*)     *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]

WHITE BALANCE White balanceAWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4

White balance adjustmentBlue/Amber bias, Magenta/Green bias

Color temperature setting 2500-10000K in 100K

SHUTTER TypeFocal-plane shutter

Shutter speed Still image: Bulb (Max. 30 minutes), 1/8,000 – 60
Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 – 60
Electronic shutter: Bulb (Max. 60 sec), 1/8,000 – 60
Motion picture: 1/16,000 – 1/25
Creative Video M mode / MF mode: 1/16,000 – 1/2

Self timer  10sec, 3 images / 2sec / 10sec / Custom Time

Remote control  Remote control by DMW-RS2 (sold separately)

Silent mode / Shutter typeYes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET  AE bracket3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst

Aperture bracket  3, 5 or all positions

Focus bracket  1 to 999 images, focus steps can be set in 10 levels

White balance bracket 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING Burst speedMechanical shutter /
Electronic front curtain shutterH: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
L: 2 frames/sec (AFS/AFC/MF) (with Live View)

Electronic shutter  SH30: 30 frames/sec (AFS/AFC/MF)
H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
L: 2 frames/sec (AFS/AFC/MF) (with Live View)

Number of recordable imagesH/M/L*
RAW+JPEG: More than 200 images
RAW: More than 200 images
JPEG: More than 300 images
*Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
*When using a card with SD Speed Class with “UHS-II UHS Speed Class 3 (U3)”.

SH
RAW / RAW+JPEG / JPEG: 200 images

FLASH  Flash typeTTL External Flash (sold separately)

Synchronization speed  Less than 1/250 second     *The guide number decreases at 1/250 second. Only when set to M mode or S mode.

Flash mode Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off     *For iA only.

Flash synchronization  1st Curtain Sync, 2nd Curtain Sync.

Flash output adjustment  1/3EV step ±3EV

Wireless control  Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch

EXTRA TELE CONVERSION 2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M)     *Only for still image recording.

COLOR SETTINGS  Photo StylePhoto StyleStandard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)*
*Set to ON from Show/Hide Photo Style to select.

Picture adjustment  Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB / LUT
*Adjustable settings vary depending on the Photo Style mode.

Filter  Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass

LUT Library  Vlog_709 / Set 1-10
*REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied from these settings.

MOTION PICTURE FUNCTION  Time lapse shot  Yes

Stop motion animation  Yes

Live cropping  Yes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes)

SS/Gain operation  Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB

Luminance level  8-bit: 0-255 / 16-235 / 16-255
10-bit: 0?1023 / 64?940 / 64?1023

Synchro scan  Yes

Master pedestal level  31 steps

Color bars / 1kHz test tone  Yes (SMPTE / EBU / ARIB) / Yes

LUT view assist  Supported file types: .vlt, .cube
Monitor / HDMI

HLG view assistMonitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)

Anamorphic desqueeze display 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF

Wave form monitor / VectorscopeSelectable

Knee control  Yes (in Like709 mode)

Red REC frame indicator  ON / OFF

VERTICAL POSITION INFORMATION  Still image / Motion picture (ON/OFF)

LEVEL GAUGE  Yes

INTERFACE  USB  USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))

HDMI (*2)  HDMIHDMI TypeA
Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)

Monitor-through  4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)

Playback  59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*
50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*
24.00Hz: C4K/24p / 4K/24p / 1080p
*Only for playback.

Remote input  φ2.5mm

Audio  Build-in microphoneStereo
Wind Noise Canceller: OFF / Standard / High

External microphone / External audio device inputφ3.5mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE
Wind Cut: OFF / Low / Standard / High      *When attaching 3.5mm microphone (sold separately).
Special Mic: Stereo / Shotgun     *When attaching DMW-MS2 (sold separately).

XLR microphone  Yes with DMW-XLR1 (sold separately)

4ch mic input  Yes with DMW-XLR1 (sold separately)

Speaker  Monaural

Headphone output  φ3.5mm

SD card slot  Slot 1, Slot 2
 SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

WIRELESS  Wi-Fi2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
 5GHz bands (STA) (IEEE 802.11a/n/ac)
Security: WPA/WPA2/WPA3
Please refer to “Wi-Fi” Sheet

Bluetooth  Bluetooth® v5.0 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT  *Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER BatteryLi-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
USB power supply, USB power charging, USB power delivery

Battery life (CIPA standard) Approx. 370 images, 1,250 images (Power Save LVF mode*) with S-R2060
  Approx. 370 images, 1,200 images (Power Save LVF mode*) with S-S50
*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.

Continuous recordable time (Motion picture) (*1)MP4 [4K/60p]: Approx. 90 min (APS-C), MP4 [FHD/60p]: Approx. 130 min (FULL)     *When using S-R2060 / S-S50. When the battery is fully charged.

Actual recordable time (Motion picture) (*1)MP4 [4K/60p]: Approx. 45 min (APS-C), MP4 [FHD/60p]: Approx. 65 min (FULL)     *When using S-R2060 / S-S50. When the battery is fully charged.

Battery grip  DMW-BGS5 (sold separately)

DIMENSIONS / WEIGHTDimensions (W x H x D)Approx. 134.3 x 102.3 x 90.1 mm / 5.29 x 4.03 x 3.55 inch (Body only, excluding protrusions)


Weight  Approx. 740g / 1.64 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap)
Approx. 657g / 1.45 lb (Body, Hot Shoe Cover) (excluding body cap)

OPERATING ENVIRONMENT  Operating temperature (*3)0? to 40?  (32? to 104?)

Operating humidity  10%RH to 80%RH

20-60mm Lens



Panasonic is proud to introduce a new interchangeable standard zoom lens, the LUMIX S 20-60mm F3.5-5.6 (SR2060) based on the L-Mount system for the LUMIX S Series Full-frame Digital Single Lens Mirrorless Camera. Specially focusing on professional use, the LUMIX S Series pursues uncompromising photographic expression with its high-quality cameras and lenses.

The new LUMIX S 20-60mm F3.5-5.6 is a compact, lightweight standard zoom lens that covers a range from ultra-wide 20mm to standard 60mm focal length for versatile use including landscapes and portraits. The wide viewing angle makes it easier to shoot indoors where room space is limited and stunning close-up capability of 0.15m (maximum magnification 0.43x) supports tabletop photography. The new LUMIX S 20-60mm F3.5-5.6 also ensures smooth, high quality video recording because of a mechanism that suppresses focus breathing, which was a fatal problem in all interchangeable lenses designed for still image photography.

Comprising 11 elements in 9 groups, the use of 2 aspherical lenses and 3 ED (Extra-low Dispersion) lenses effectively suppresses both axial chromatic aberration and chromatic aberration of magnification. Astigmatism is also corrected with these aspherical lenses, achieving high resolving performance. Furthermore, a UHR (Ultra-High Refractive Index) lens achieves uniform image quality from the center to the edges of the image while contributing to overall downsizing of the lens unit.

With its compact, 350g and light weight body (350g), the LUMIX S 20-60mm F3.5-5.6 prioritizes mobility. The rugged dust/splash-resistant* design withstands use under harsh conditions even at -10 degrees Celsius for outdoor use.@In addition, a fluorine coating on the front element repels water and oil and prevent them from sticking to the lens. The filter diameter is 67 mm, with a 9-blade circular aperture diaphragm.

Maximum Aperture  f/3.5 to 5.6

Minimum Aperture  f/22

Lens Mount  Leica L

Lens Format Coverage  Full-Frame

Angle of View  94° to 40°

Minimum Focus Distance  5.91″ / 15 cm

Maximum Magnification  0.43x

Optical Design  11 Elements in 9 Groups

Diaphragm Blades  9, Rounded

Focus Type  Autofocus

Image Stabilization  No

Filter Size  67 mm (Front)

Dimensions (ø x L)  3.05 x 3.43″ / 77.4 x 87.2 mm

Length at Maximum Extension  4.71″ / 119.7 mm

Weight  12.35 oz / 350 g

50mm 1.8 Lens

Designed for full-frame L-mount mirrorless cameras, the Panasonic Lumix S 50mm f/1.8 is a sleek and compact standard-length prime. Its 50mm focal length is ideally suited for portraiture, landscapes, and all-purpose shooting and provides a modestly bright f/1.8 maximum aperture for shallow depth of field control. An extra-low dispersion element and an ultra-high refractive index element reduce chromatic aberration and color fringing for improved clarity and color accuracy, and the lens provides excellent sharpness as well. A linear autofocus motor suppresses focus breathing and delivers smooth, precise, and near silent focusing performance. Made for tough environmental conditions, the lens also features a dust-, moisture-, and freeze-resistant design.

Prime standard-length lens designed for full-frame L-mount mirrorless cameras, however, can also be used on APS-C models where it provides a 75mm equivalent focal length.

Bright f/1.8 maximum aperture offers control over depth of field and suits working in low-light conditions.

Three aspherical lenses including an extra-low dispersion element and an ultra-high refractive index element reduce chromatic aberration and color fringing for improved clarity and color accuracy.

Linear autofocus motor suppresses focus breathing and delivers smooth, precise, and near silent focusing performance.

Benefitting professional video applications, linear focus ring control for mechanical-based follow focus systems moves the focus at a constant speed in accordance with the rotating angle of the focus ring.

High resolution sharpness and performance to support 4K video.

Smooth exposure changes by micro-step aperture control for video applications.

Rounded nine-blade diaphragm contributes to a pleasing bokeh quality when employing selective focus techniques.

Dust-, moisture-, and freeze-resistant design for increased protection from the elements.

• Focal Length 50mm
• Maximum Aperture f/1.8
• Minimum Aperture f/22
• Lens Mount  Leica L
• Format Compatibility  Full-Frame
• Angle of View  47°
• Minimum Focus Distance  1.48′ / 45.11 cm
• Maximum Magnification  0.14x
• Optical Design  9 Elements in 8 Groups
• Diaphragm Blades  9, Rounded
• Focus Type  Autofocus
• Image Stabilization  No
• Filter Size  67 mm (Front)
• Dimensions (ø x L)  2.9 x 3.2″ / 73.6 x 82 mm
• Weight  10.6 oz / 300 g



• Panasonic Lumix S5 IIX Mirrorless Camera
• Panasonic SS50 1.8 Lens
• Panasonic SR2060 F3.5-5.6 Lens
• Panasonic DMW-BLK22 Lithium-Ion Battery (7.2V, 2200mAh)
• AC Adapter
• USB-C to USB-A Cable
• Shoulder Strap
• Body Cap
• Hot Shoe Cover
• Battery Grip Connector Cover
• Lumix S 20-60mm f/3.5-5.6 Lens
